Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same SH100H family to join the chain ends after installation:
SH100H C/P C/L
SH100H O/L
This chain mates with #100 (1-1/4") ANSI standard sprockets. Browse our BlackStar selection in this pitch.

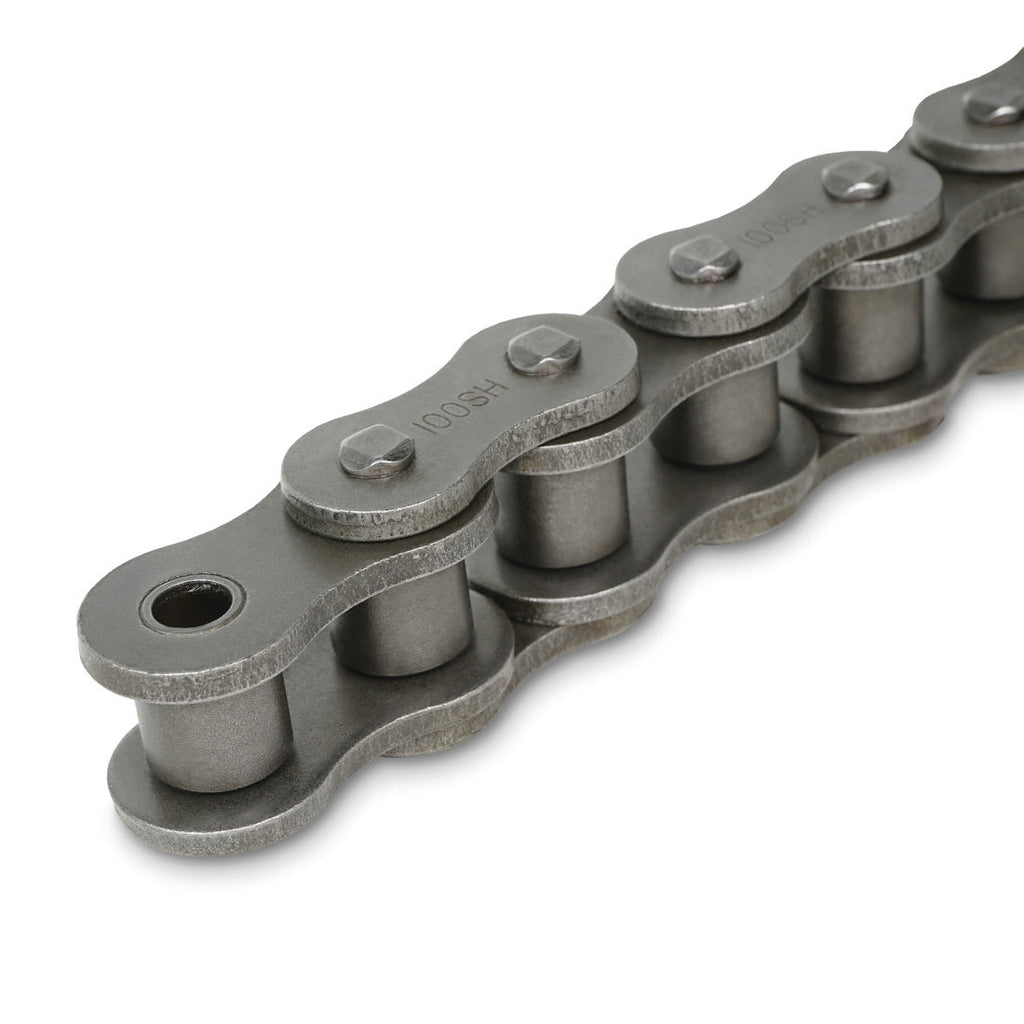

View #100 Sprockets →The Lynx SH100H RIV 10' is a 10-foot reel of sh super heavy chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

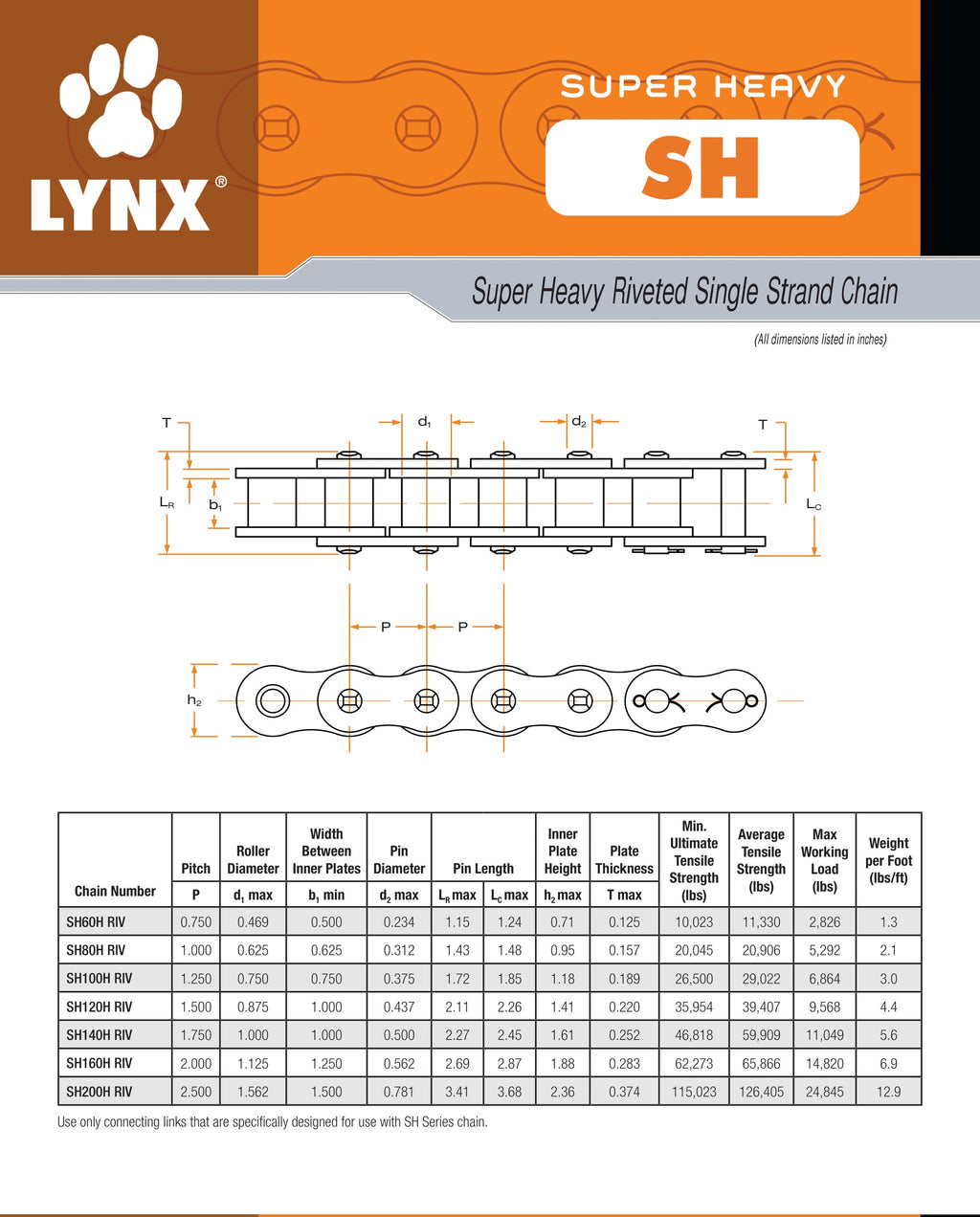

Specifications
| Chain Size | 100 |
| Series | SH100 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 1.250 |
| Roller Diameter | 0.783 |
| Pin Diameter | 0.375 |
| Pin Length | 1.720 |
| Link Plate Height | 1.180 |
| Plate Thickness | 0.189 |
| Width Between Inner Plates | 0.783 |
| Average Tensile Strength (lbs.) | 29022 |
| Max Working Load (lbs.) | 6864 |
| Minimum Tensile Strength (lbs.) | 26500 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 2.8 lbs/ft |
| Total Reel Weight | 28 lbs (10 ft × 2.8 lbs/ft) |
| GTIN | 192056078192 |
