Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same SH80H family to join the chain ends after installation:
SH80H S/C C/L
SH80H O/L
This chain mates with #80 (1") ANSI standard sprockets. Browse our BlackStar selection in this pitch.

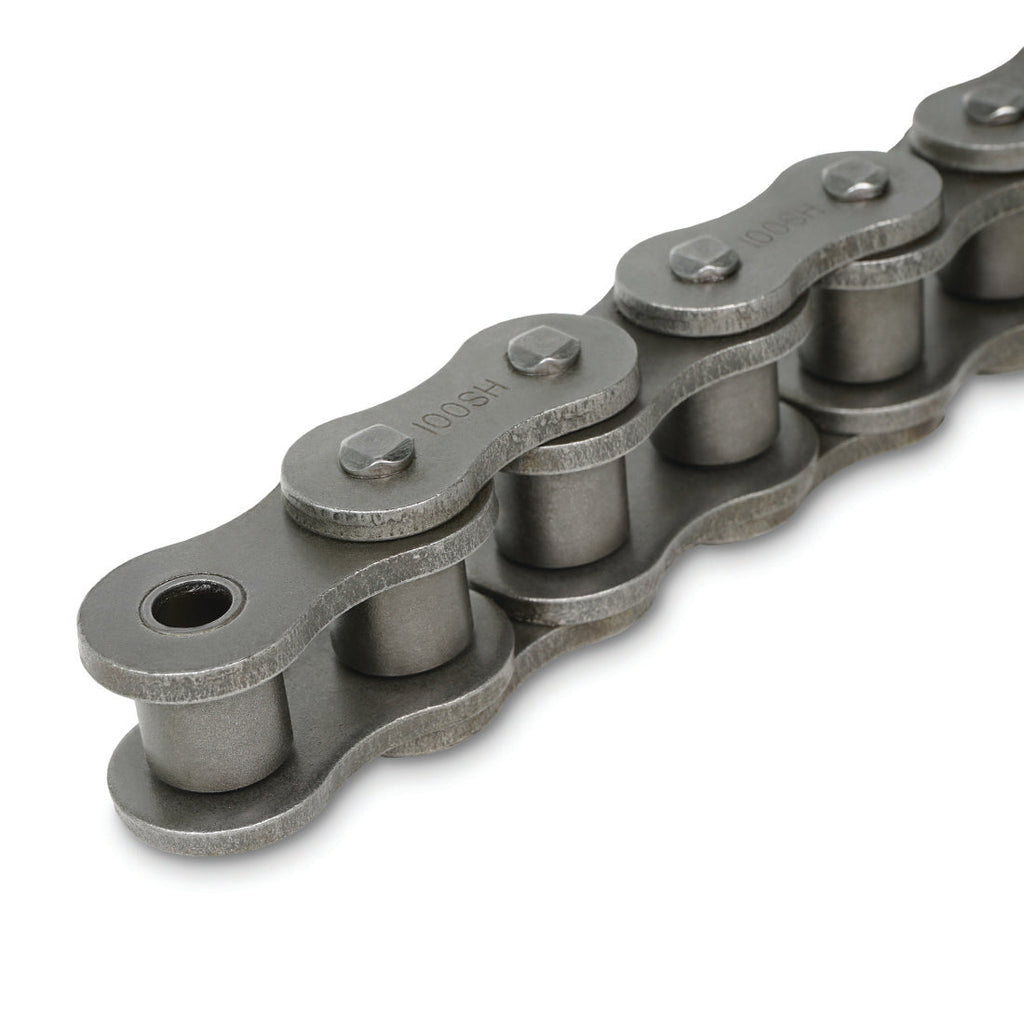

View #80 Sprockets →The Lynx SH80H RIV 10' is a 10-foot reel of sh super heavy chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

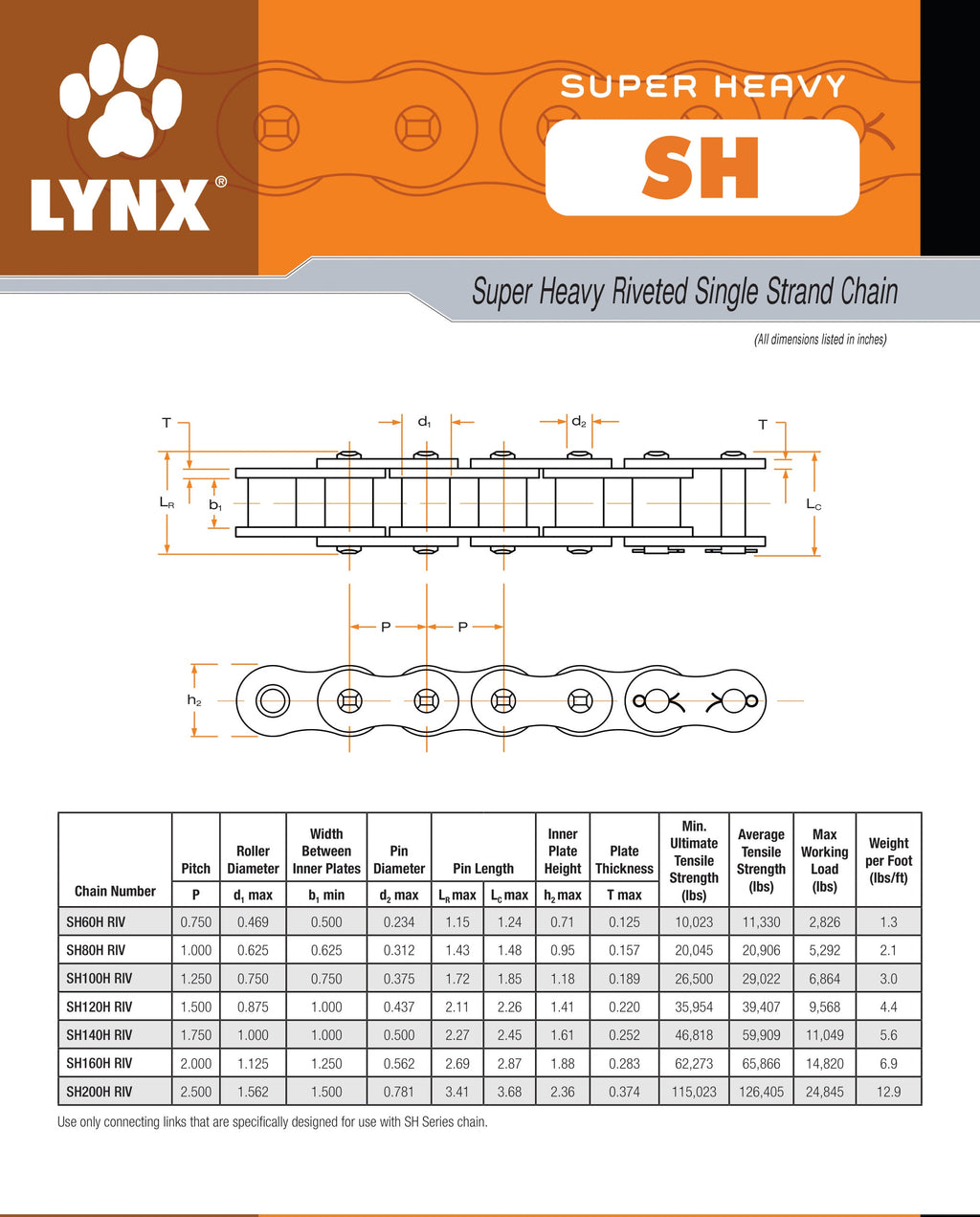

Specifications
| Chain Size | 80 |
| Series | SH80 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 1.000 |
| Roller Diameter | 0.625 |
| Pin Diameter | 0.312 |
| Pin Length | 1.430 |
| Link Plate Height | 0.950 |
| Plate Thickness | 0.157 |
| Width Between Inner Plates | 0.625 |
| Average Tensile Strength (lbs.) | 20906 |
| Max Working Load (lbs.) | 5292 |
| Minimum Tensile Strength (lbs.) | 20045 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 1.9 lbs/ft |
| Total Reel Weight | 19 lbs (10 ft × 1.9 lbs/ft) |
| GTIN | 192056078376 |
Compatible Components
Matched Sprockets
- 80B10SS Roller Chain Sprocket, #80 Chain, 1 Teeth, B Hub
- 80B11SS Roller Chain Sprocket, #80 Chain, 11 Teeth, B Hub
- 80B12SS Roller Chain Sprocket, #80 Chain, 12 Teeth, B Hub
- 80B13SS Roller Chain Sprocket, #80 Chain, 13 Teeth, B Hub
Shop all 3139 matched options ›
Connecting Links
- Lynx 80DR C/L - Connecting Link
- Lynx 80N C/L - Connecting Link
- Lynx HD80 C/P C/L - Connecting Link
- Lynx HD80 C/P C/L - Connecting Link
Shop all 59 matched options ›
Offset Links
- Lynx HD80 O/L - Offset Link
- Lynx HD80 O/L - Offset Link
- Lynx HD80-2 O/L - Offset Link
- Lynx HD80-2 O/L - Offset Link
Shop all 38 matched options ›
Matched Sprockets
- 80B10SS Roller Chain Sprocket, #80 Chain, 1 Teeth, B Hub
- 80B11SS Roller Chain Sprocket, #80 Chain, 11 Teeth, B Hub
- 80B12SS Roller Chain Sprocket, #80 Chain, 12 Teeth, B Hub
- 80B13SS Roller Chain Sprocket, #80 Chain, 13 Teeth, B Hub
Shop all 3139 matched options ›
Connecting Links
- Lynx 80DR C/L - Connecting Link
- Lynx 80N C/L - Connecting Link
- Lynx HD80 C/P C/L - Connecting Link
- Lynx HD80 C/P C/L - Connecting Link
Shop all 59 matched options ›
Offset Links
- Lynx HD80 O/L - Offset Link
- Lynx HD80 O/L - Offset Link
- Lynx HD80-2 O/L - Offset Link
- Lynx HD80-2 O/L - Offset Link
Shop all 38 matched options ›
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
