Lynx XD100-3 RIV 10' - XD Extreme Duty Chain 10ft Reel


Price:
$ 1,261.73

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same XD100 family to join the chain ends after installation:

CONNECTING LINKS:
XD100-3 C/P C/L
OFFSET LINKS:
XD100-3 O/L
⚙ Compatible Sprockets

This chain mates with #100 (1-1/4") ANSI standard sprockets. Browse our BlackStar selection in this pitch.

View #100 Sprockets →

The Lynx XD100-3 RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

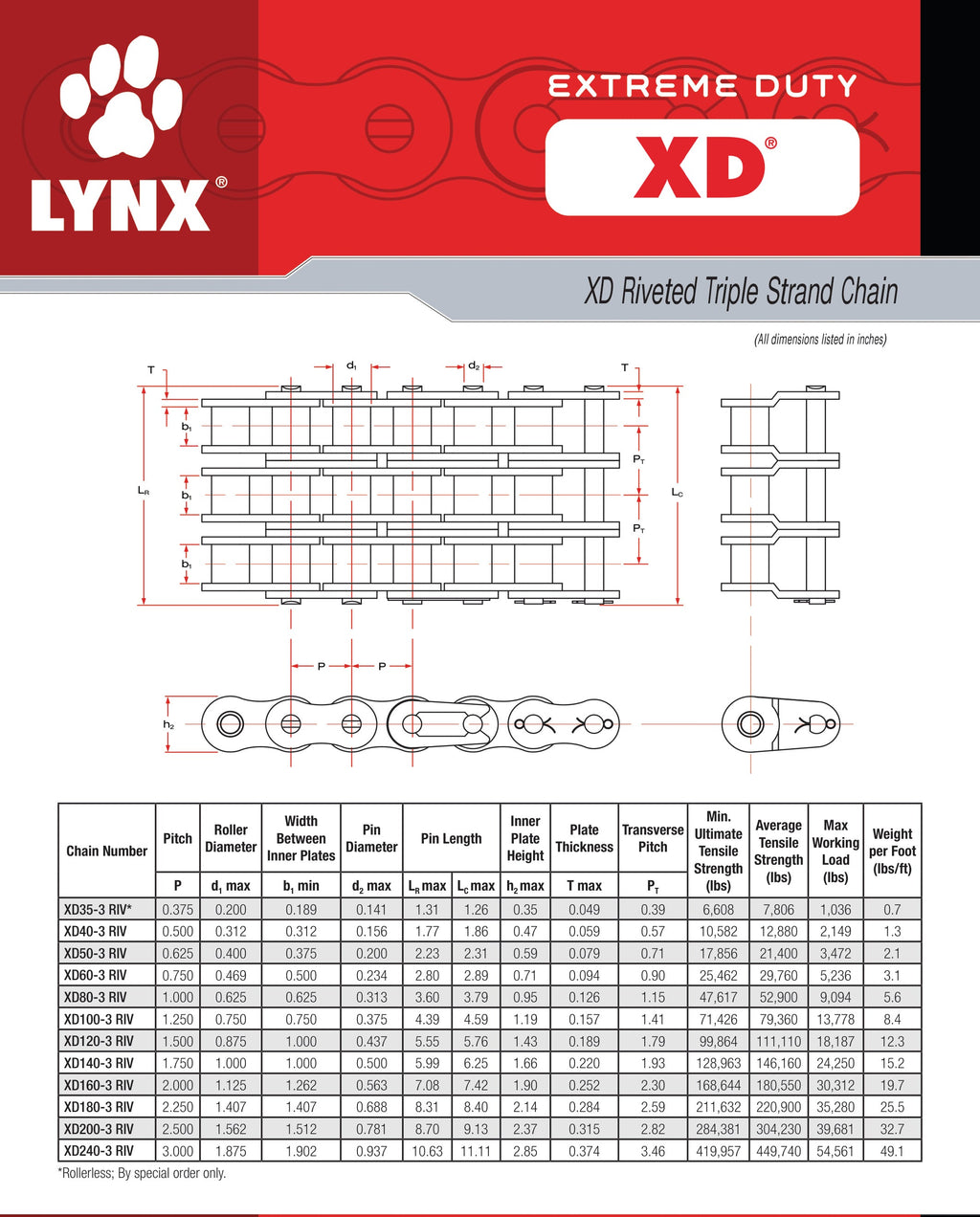

Specifications

Chain Size 100
Series XD100-3 Series
Number of strands 3
Material Steel
Pitch 1.250
Roller Diameter 0.750
Pin Diameter 0.375
Pin Length 4.390
Link Plate Height 1.190
Plate Thickness 0.157
Width Between Inner Plates 0.750
Transverse Pitch 1.410
Average Tensile Strength (lbs.) 79360
Max Working Load (lbs.) 13778
Minimum Tensile Strength (lbs.) 71426
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 8.4 lbs/ft
Total Reel Weight 84 lbs (10 ft × 8.4 lbs/ft)
GTIN 192056076747
