Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same XD120 family to join the chain ends after installation:
XD120-2 O/L
This chain mates with #120 (1-1/2") ANSI standard sprockets. Browse our BlackStar selection in this pitch.
View #120 Sprockets →The Lynx XD120-2 RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

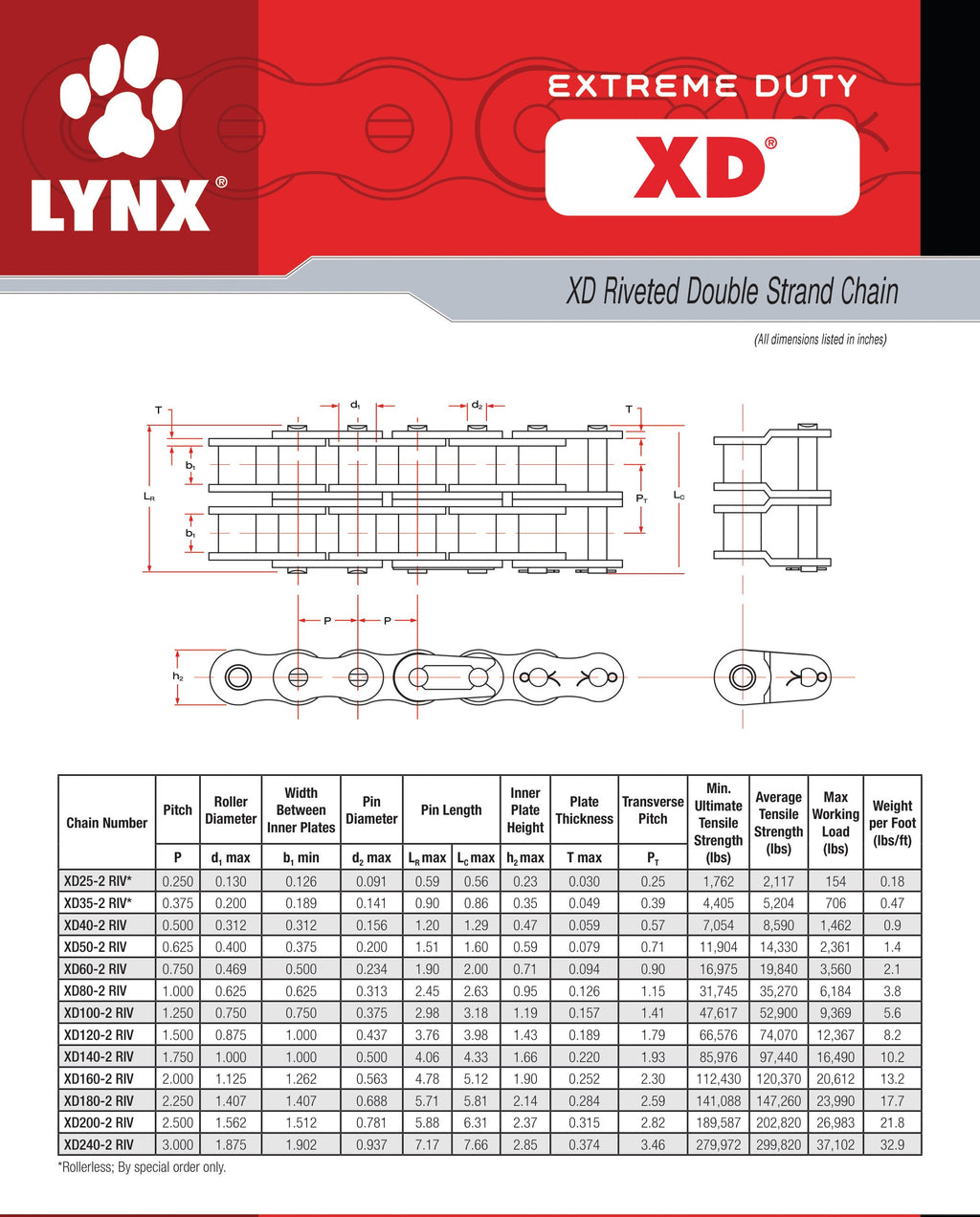

Specifications
| Chain Size | 120 |
| Series | XD120 Series |
| Number of strands | 2 |
| Material | Steel |
| Pitch | 1.500 |
| Roller Diameter | 0.875 |
| Pin Diameter | 0.437 |
| Pin Length | 3.760 |
| Link Plate Height | 1.430 |
| Plate Thickness | 0.189 |
| Width Between Inner Plates | 1.000 |
| Transverse Pitch | 1.790 |
| Average Tensile Strength (lbs.) | 74070 |
| Max Working Load (lbs.) | 12367 |
| Minimum Tensile Strength (lbs.) | 66576 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 8.2 lbs/ft |
| Total Reel Weight | 82 lbs (10 ft × 8.2 lbs/ft) |
| GTIN | 192056076938 |
