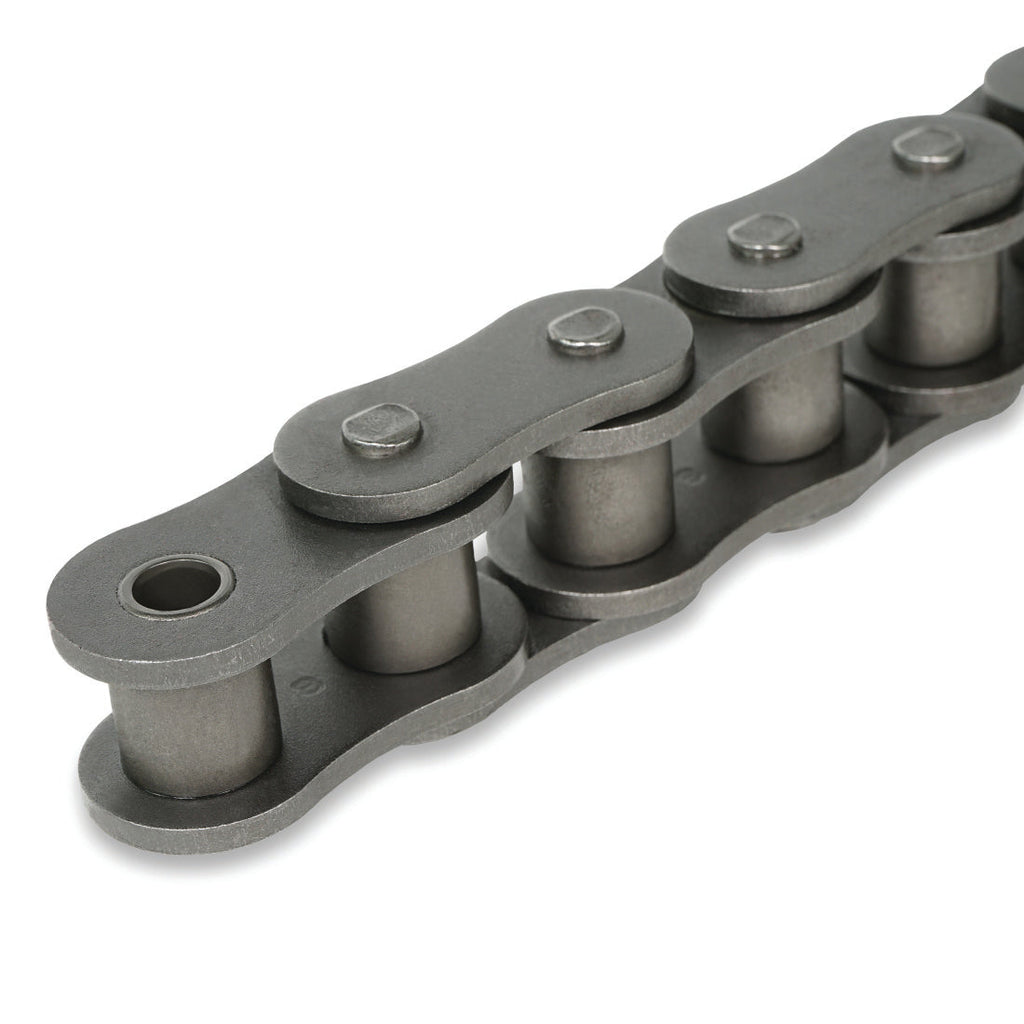

Lynx XD120H RIV 10' - XD Extreme Duty Chain 10ft Reel


Price:
$ 674.77

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same XD120H family to join the chain ends after installation:

CONNECTING LINKS:
XD120H C/P C/L
OFFSET LINKS:
XD120H O/L
⚙ Compatible Sprockets

This chain mates with #120 (1-1/2") ANSI standard sprockets. Browse our BlackStar selection in this pitch.

View #120 Sprockets →

The Lynx XD120H RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

Specifications

Chain Size 120
Series XD120 Series
Number of strands 1
Material Steel
Pitch 1.500
Roller Diameter 0.875
Pin Diameter 0.437
Pin Length 2.110
Link Plate Height 1.430
Plate Thickness 0.220
Width Between Inner Plates 1.000
Average Tensile Strength (lbs.) 37038
Max Working Load (lbs.) 7935
Minimum Tensile Strength (lbs.) 33297
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 4.4 lbs/ft
Total Reel Weight 44 lbs (10 ft × 4.4 lbs/ft)
GTIN 192056076990
