Lynx XD140-2 RIV 10' - XD Extreme Duty Chain 10ft Reel


Price:
$ 1,433.44

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same XD140 family to join the chain ends after installation:

CONNECTING LINKS:
XD140-2 C/P C/L
OFFSET LINKS:
XD140-2 O/L
⚙ Compatible Sprockets

This chain mates with #140 (1-3/4") ANSI standard sprockets. Browse our BlackStar selection in this pitch.

View #140 Sprockets →

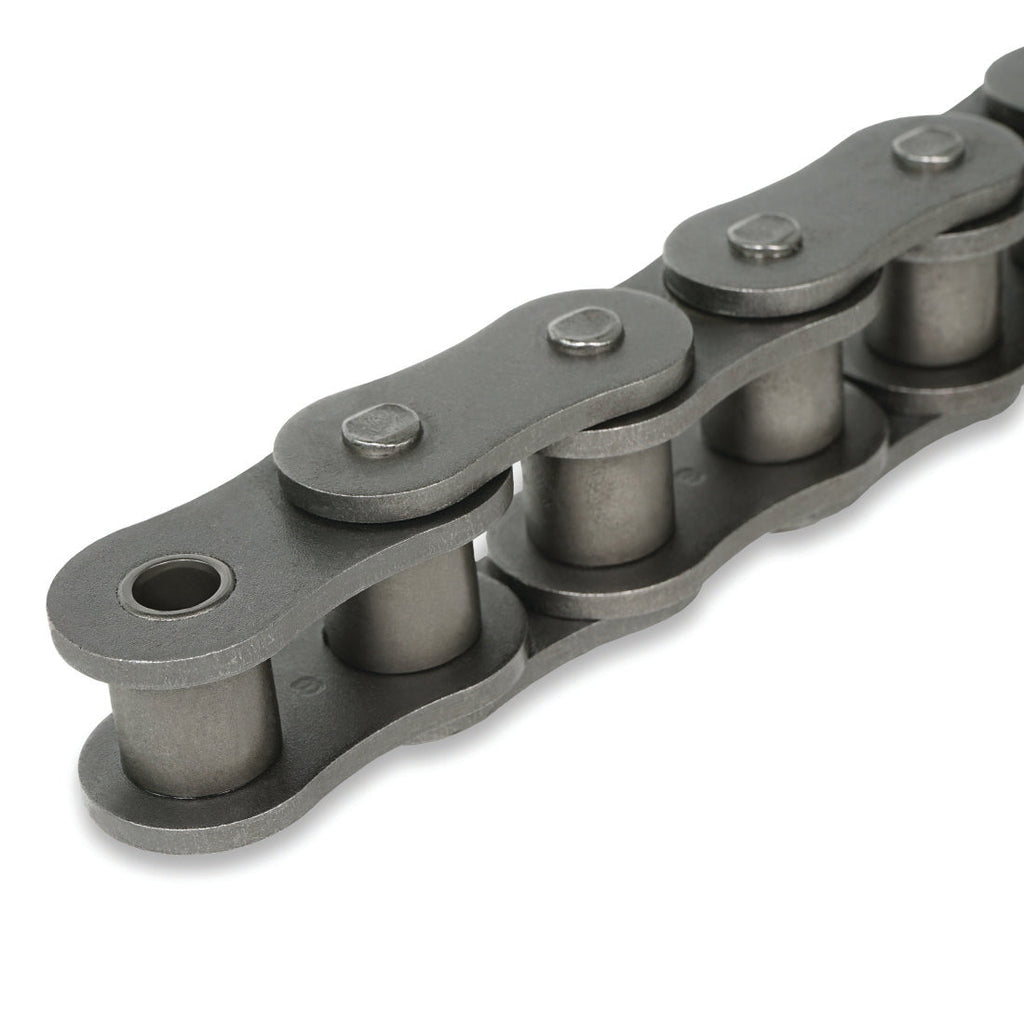

The Lynx XD140-2 RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

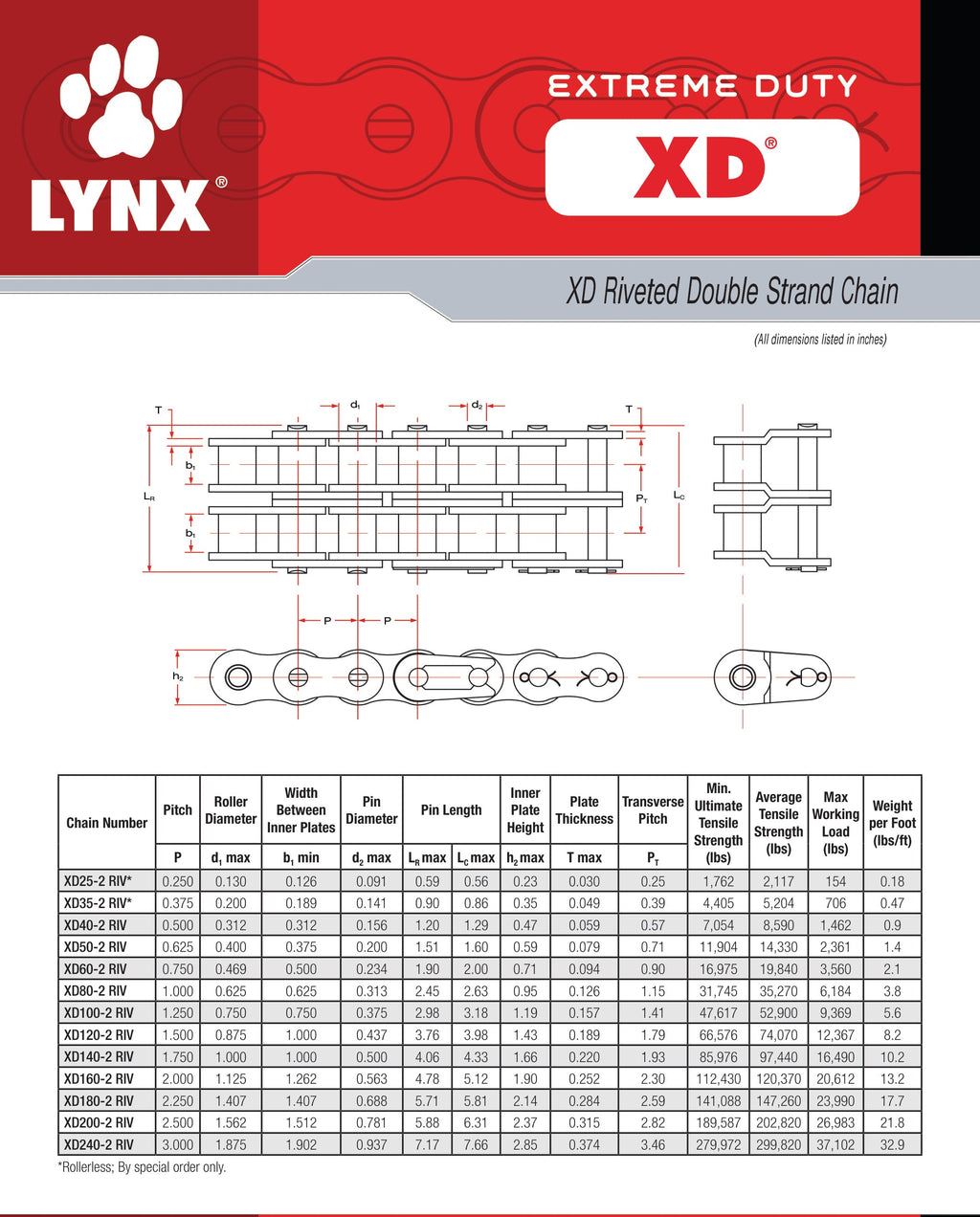

Specifications

Chain Size 140
Series XD140 Series
Number of strands 2
Material Steel
Pitch 1.750
Roller Diameter 1.000
Pin Diameter 0.500
Pin Length 4.060
Link Plate Height 1.660
Plate Thickness 0.220
Width Between Inner Plates 1.000
Transverse Pitch 1.930
Average Tensile Strength (lbs.) 97440
Max Working Load (lbs.) 16490
Minimum Tensile Strength (lbs.) 85976
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 10.2 lbs/ft
Total Reel Weight 102 lbs (10 ft × 10.2 lbs/ft)
GTIN 192056077058
