Lynx XD140-3 RIV 5' - XD Extreme Duty Chain 5ft Reel


Price:
$ 1,108.52

Description

âš¡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same XD140 family to join the chain ends after installation:

CONNECTING LINKS:
XD140-3 C/P C/L
OFFSET LINKS:
XD140-3 O/L
âš™ Compatible Sprockets

This chain mates with #140 (1-3/4") ANSI standard sprockets. Browse our BlackStar selection in this pitch.

View #140 Sprockets →

The Lynx XD140-3 RIV 5' is a 5-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

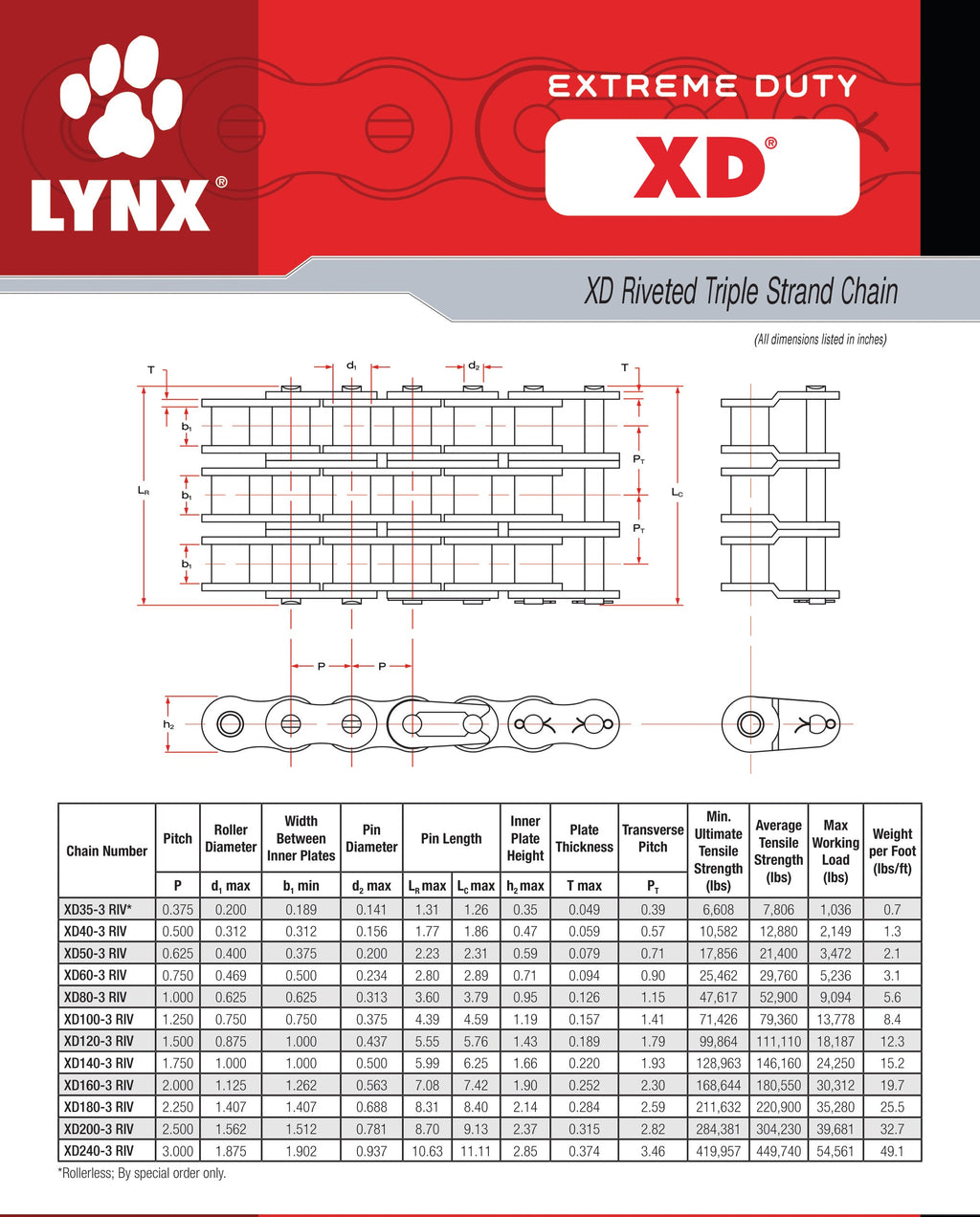

Specifications

Chain Size 140
Series XD140 Series
Number of strands 3
Material Steel
Pitch 1.750
Roller Diameter 1.000
Pin Diameter 0.500
Pin Length 6.250
Link Plate Height 1.660
Plate Thickness 0.220
Width Between Inner Plates 1.000
Transverse Pitch 1.930
Average Tensile Strength (lbs.) 146160
Max Working Load (lbs.) 24250
Minimum Tensile Strength (lbs.) 128963
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 14.7 lbs/ft
Total Reel Weight 73.5 lbs (5 ft × 14.7 lbs/ft)
GTIN 192056077089

Compatible Components

Matched Sprockets

Shop all 742 matched options ›

Connecting Links

Shop all 16 matched options ›

Offset Links

Shop all 16 matched options ›

Matched Sprockets

Shop all 742 matched options ›

Connecting Links

Shop all 16 matched options ›

Offset Links

Shop all 16 matched options ›

Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
