Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same XD140 family to join the chain ends after installation:
XD140 C/P C/L
XD140 O/L
This chain mates with #140 (1-3/4") ANSI standard sprockets. Browse our BlackStar selection in this pitch.
View #140 Sprockets →The Lynx XD140 RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

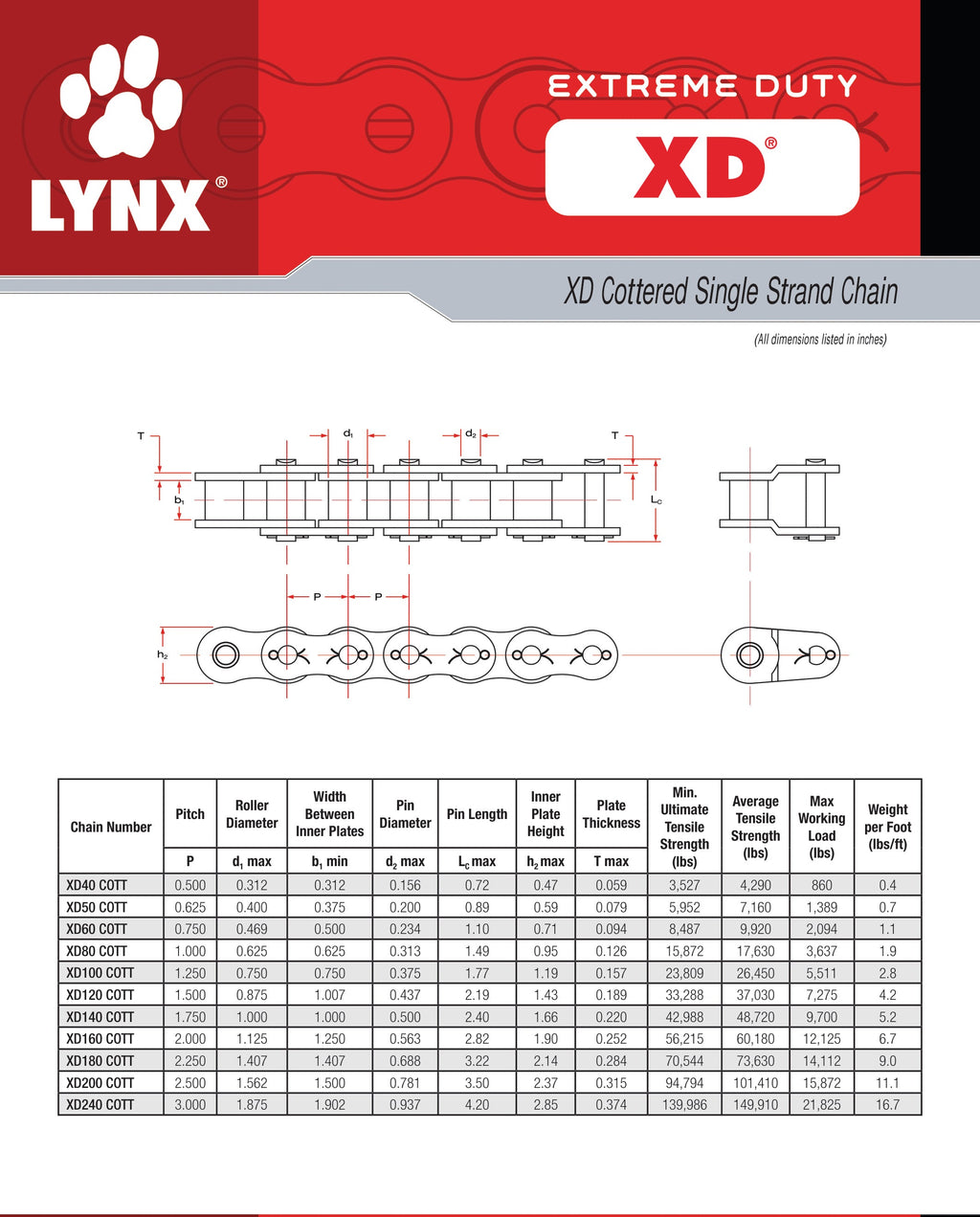

Specifications
| Chain Size | 140 |
| Series | XD140 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 1.750 |
| Roller Diameter | 1.000 |
| Pin Diameter | 0.500 |
| Pin Length | 2.130 |
| Link Plate Height | 1.660 |
| Plate Thickness | 0.220 |
| Width Between Inner Plates | 1.004 |
| Average Tensile Strength (lbs.) | 48720 |
| Max Working Load (lbs.) | 9700 |
| Minimum Tensile Strength (lbs.) | 42988 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 5.2 lbs/ft |
| Total Reel Weight | 52 lbs (10 ft × 5.2 lbs/ft) |
| GTIN | 192056077027 |
