Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same XD160 family to join the chain ends after installation:
XD160-2 C/P C/L
XD160-2 O/L
This chain mates with #160 (2") ANSI standard sprockets. Browse our BlackStar selection in this pitch.
View #160 Sprockets →The Lynx XD160-2 RIV 5' is a 5-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

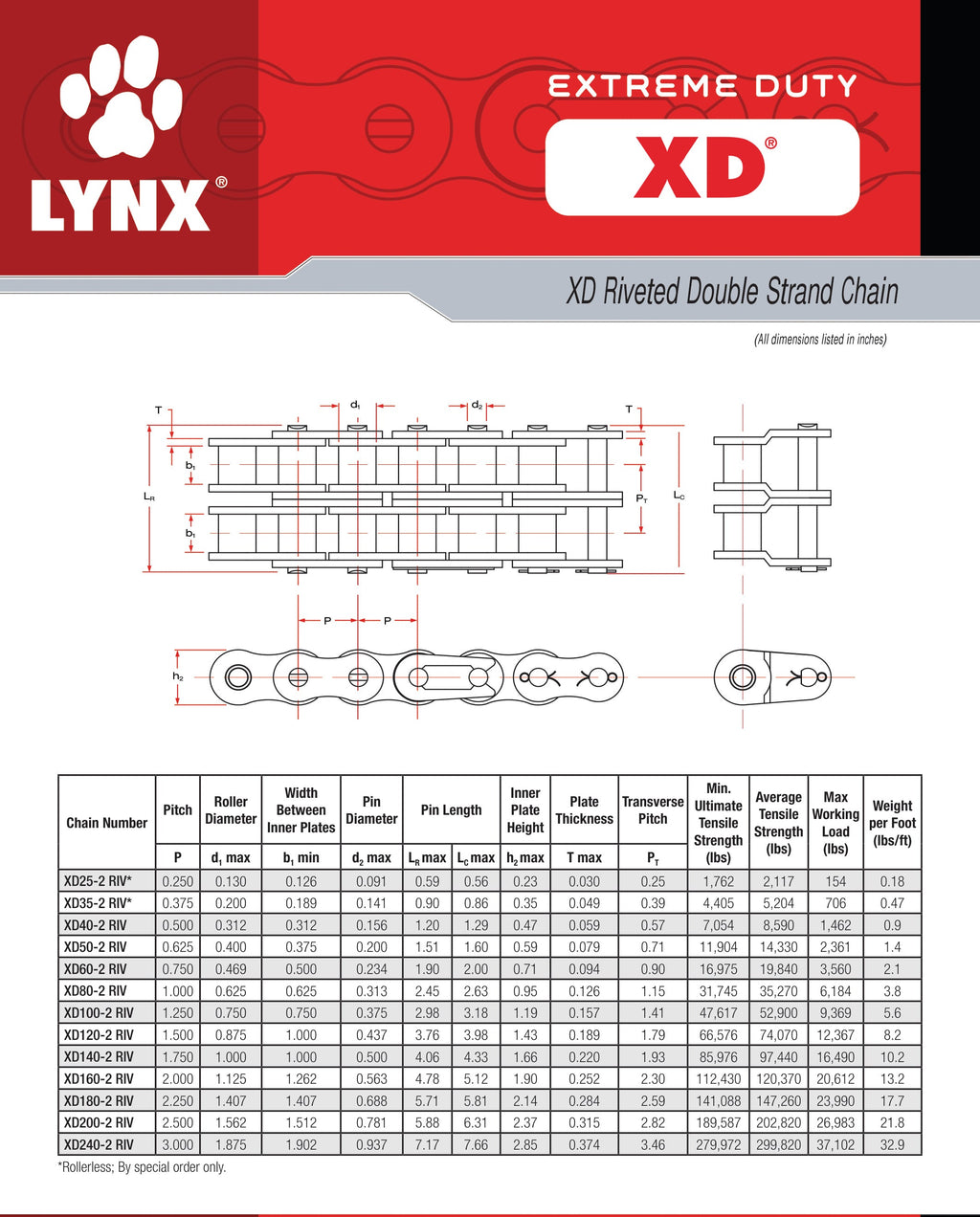

Specifications
| Chain Size | 160 |
| Series | XD160 Series |
| Number of strands | 2 |
| Material | Steel |
| Pitch | 2.000 |
| Roller Diameter | 1.125 |
| Pin Diameter | 0.563 |
| Pin Length | 4.780 |
| Link Plate Height | 1.900 |
| Plate Thickness | 0.252 |
| Width Between Inner Plates | 1.262 |
| Transverse Pitch | 2.300 |
| Average Tensile Strength (lbs.) | 120370 |
| Max Working Load (lbs.) | 20612 |
| Minimum Tensile Strength (lbs.) | 112430 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 4 lbs/ft |
| Total Reel Weight | 20 lbs (5 ft × 4 lbs/ft) |
| GTIN | 192056077171 |
