Lynx XD160-3 RIV 5' - XD Extreme Duty Chain 5ft Reel


Price:
$ 1,372.71

Description

âš¡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same XD160 family to join the chain ends after installation:

CONNECTING LINKS:
XD160-3 C/P C/L
OFFSET LINKS:
XD160-3 O/L
âš™ Compatible Sprockets

This chain mates with #160 (2") ANSI standard sprockets. Browse our BlackStar selection in this pitch.

View #160 Sprockets →

The Lynx XD160-3 RIV 5' is a 5-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

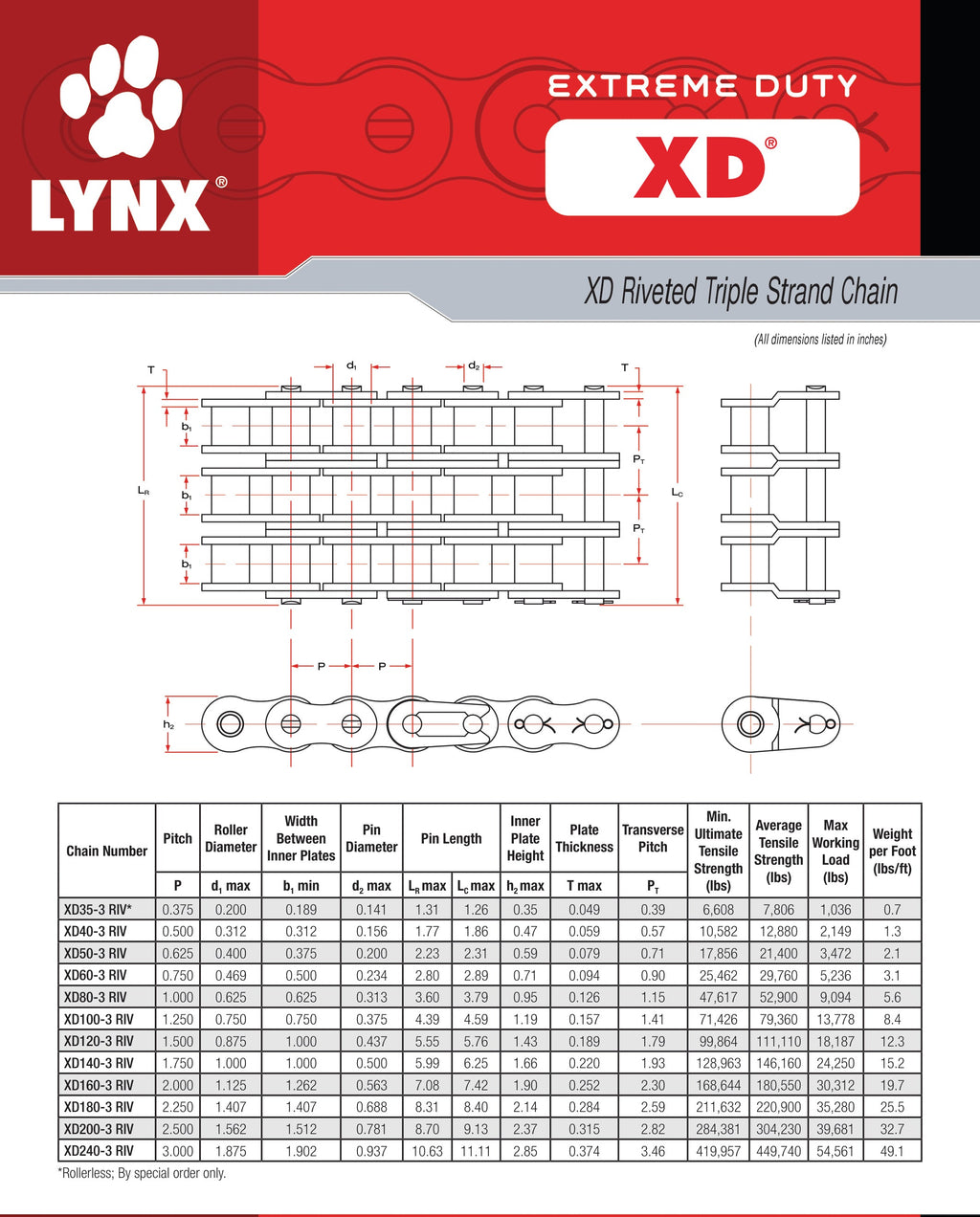

Specifications

Chain Size 160
Series XD160 Series
Number of strands 3
Material Steel
Pitch 2.000
Roller Diameter 1.125
Pin Diameter 0.563
Pin Length 7.080
Link Plate Height 1.900
Plate Thickness 0.252
Width Between Inner Plates 1.262
Transverse Pitch 2.300
Average Tensile Strength (lbs.) 180550
Max Working Load (lbs.) 30312
Minimum Tensile Strength (lbs.) 168644
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 6 lbs/ft
Total Reel Weight 30 lbs (5 ft × 6 lbs/ft)
GTIN 192056077201
