Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same XD160H family to join the chain ends after installation:
XD160H C/P C/L
XD160H O/L
This chain mates with #160 (2") ANSI standard sprockets. Browse our BlackStar selection in this pitch.
View #160 Sprockets →The Lynx XD160H RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

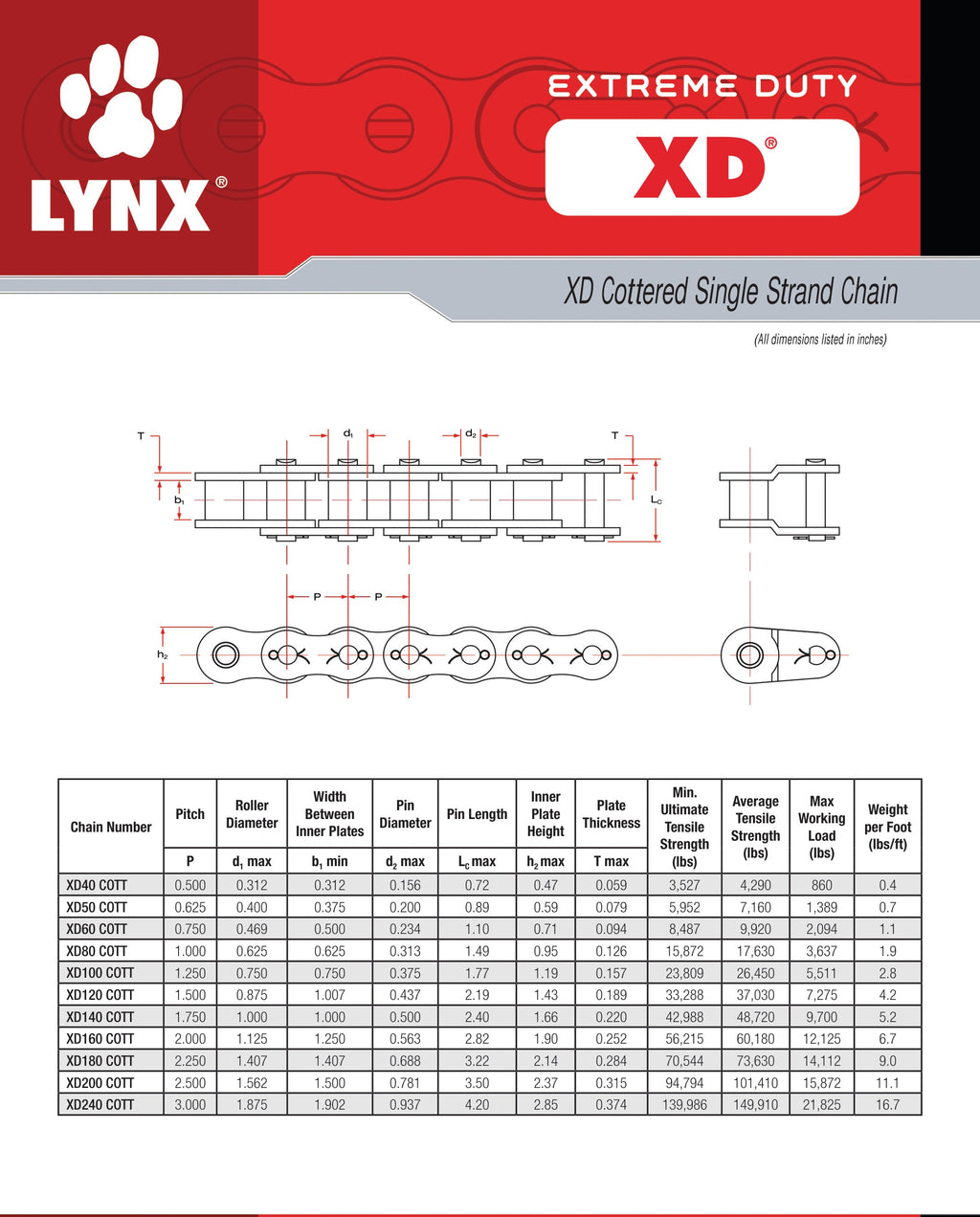

Specifications
| Chain Size | 160 |
| Series | XD160 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 2.000 |
| Roller Diameter | 1.125 |
| Pin Diameter | 0.563 |
| Pin Length | 2.670 |
| Link Plate Height | 1.900 |
| Plate Thickness | 0.283 |
| Width Between Inner Plates | 1.250 |
| Average Tensile Strength (lbs.) | 60186 |
| Max Working Load (lbs.) | 12565 |
| Minimum Tensile Strength (lbs.) | 56230 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 7.2 lbs/ft |
| Total Reel Weight | 72 lbs (10 ft × 7.2 lbs/ft) |
| GTIN | 192056077263 |
Compatible Components
Matched Sprockets
- BlackStar 160A11 - 160 Pitch A-Plate Sprocket - 11 Tooth
- BlackStar 160A11 - 160 Pitch A-Plate Sprocket - 11 Tooth
- BlackStar 160A12 - 160 Pitch A-Plate Sprocket - 12 Tooth
- BlackStar 160A12 - 160 Pitch A-Plate Sprocket - 12 Tooth
Shop all 633 matched options ›
Connecting Links
- Lynx HD160 C/P C/L - Connecting Link
- Lynx HD160 C/P C/L - Connecting Link
- Lynx HD160-2 C/P C/L - Connecting Link
- Lynx HD160-2 C/P C/L - Connecting Link
Shop all 19 matched options ›
Offset Links
- Lynx HD160 O/L - Offset Link
- Lynx HD160 O/L - Offset Link
- Lynx HD160-2 O/L - Offset Link
- Lynx HD160-2 O/L - Offset Link
Shop all 18 matched options ›
Matched Sprockets
- BlackStar 160A11 - 160 Pitch A-Plate Sprocket - 11 Tooth
- BlackStar 160A11 - 160 Pitch A-Plate Sprocket - 11 Tooth
- BlackStar 160A12 - 160 Pitch A-Plate Sprocket - 12 Tooth
- BlackStar 160A12 - 160 Pitch A-Plate Sprocket - 12 Tooth
Shop all 633 matched options ›
Connecting Links
- Lynx HD160 C/P C/L - Connecting Link
- Lynx HD160 C/P C/L - Connecting Link
- Lynx HD160-2 C/P C/L - Connecting Link
- Lynx HD160-2 C/P C/L - Connecting Link
Shop all 19 matched options ›
Offset Links
- Lynx HD160 O/L - Offset Link
- Lynx HD160 O/L - Offset Link
- Lynx HD160-2 O/L - Offset Link
- Lynx HD160-2 O/L - Offset Link
Shop all 18 matched options ›
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
