Lynx XD180 RIV 10' - XD Extreme Duty Chain 10ft Reel


Price:
$ 1,309.65

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same XD180 family to join the chain ends after installation:

CONNECTING LINKS:
XD180 C/P C/L
OFFSET LINKS:
XD180 O/L

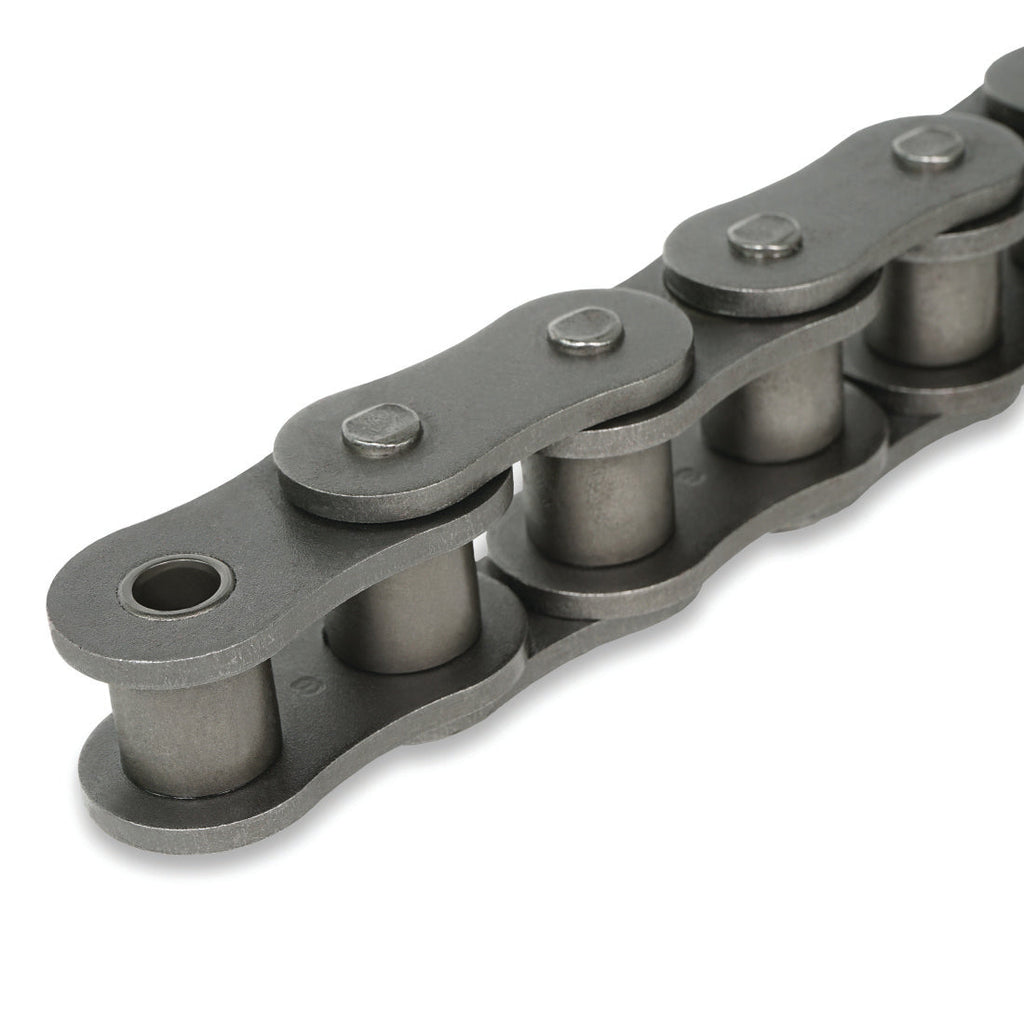

The Lynx XD180 RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

Specifications

Chain Size 180
Series XD180 Series
Number of strands 1
Material Steel
Pitch 2.250
Roller Diameter 0.750
Pin Diameter 0.375
Pin Length 1.570
Link Plate Height 1.190
Plate Thickness 0.157
Width Between Inner Plates 0.754
Average Tensile Strength (lbs.) 26450
Max Working Load (lbs.) 5511
Minimum Tensile Strength (lbs.) 23809
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 9 lbs/ft
Total Reel Weight 90 lbs (10 ft × 9 lbs/ft)
GTIN 192056077294
