Lynx XD180H RIV 10' - XD Extreme Duty Chain 10ft Reel


Price:
$ 1,698.10

Description

The Lynx XD180H RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

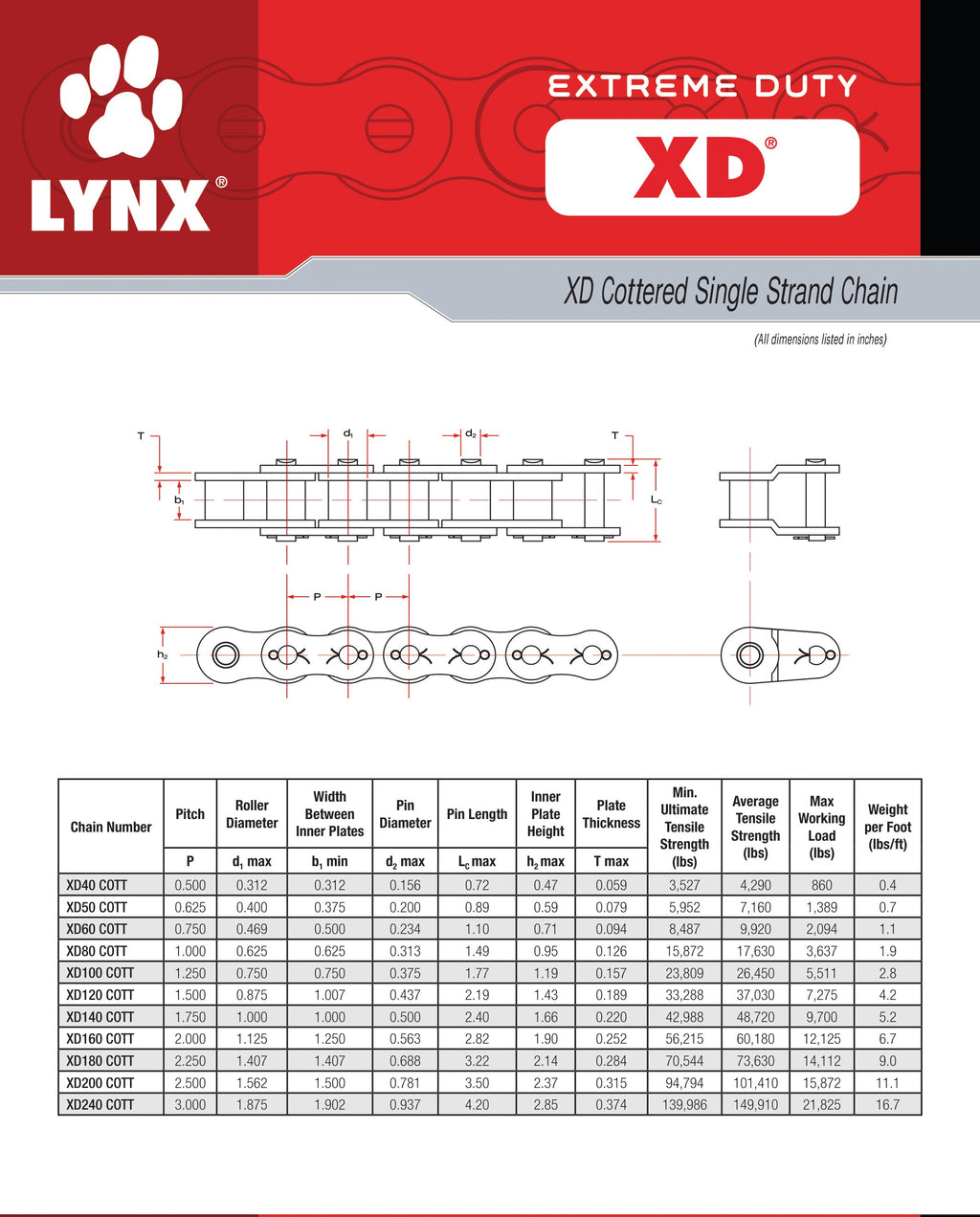

Specifications

Chain Size 180
Series XD180 Series
Number of strands 1
Material Steel
Pitch 2.250
Roller Diameter 1.562
Pin Diameter 0.781
Pin Length 3.400
Link Plate Height 2.370
Plate Thickness 0.374
Width Between Inner Plates 1.500
Average Tensile Strength (lbs.) 103617
Max Working Load (lbs.) 16314
Minimum Tensile Strength (lbs.) 96876
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 10.2 lbs/ft
Total Reel Weight 102 lbs (10 ft × 10.2 lbs/ft)
GTIN 192056077300

Compatible Components

Matched Sprockets

Shop all 12 matched options ›

Connecting Links

Shop all 6 matched options ›

Offset Links

Shop all 6 matched options ›

Matched Sprockets

Shop all 12 matched options ›

Connecting Links

Shop all 6 matched options ›

Offset Links

Shop all 6 matched options ›

Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
