Lynx XD200-2 RIV 5' - XD Extreme Duty Chain 5ft Reel


Price:
$ 1,761.95

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same XD200 family to join the chain ends after installation:

CONNECTING LINKS:
XD200-2 C/P C/L
OFFSET LINKS:
XD200-2 O/L
⚙ Compatible Sprockets

This chain mates with #200 (2-1/2") ANSI standard sprockets. Browse our BlackStar selection in this pitch.

View #200 Sprockets →

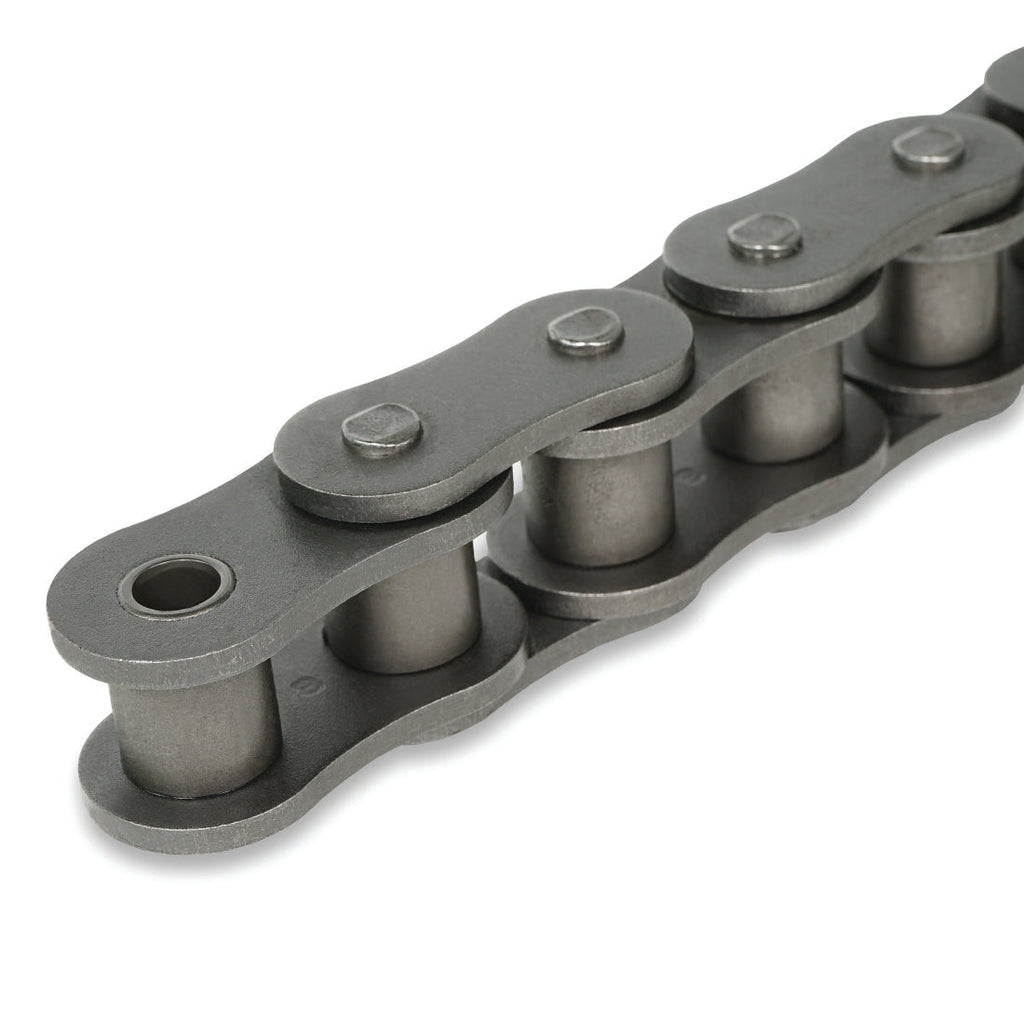

The Lynx XD200-2 RIV 5' is a 5-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

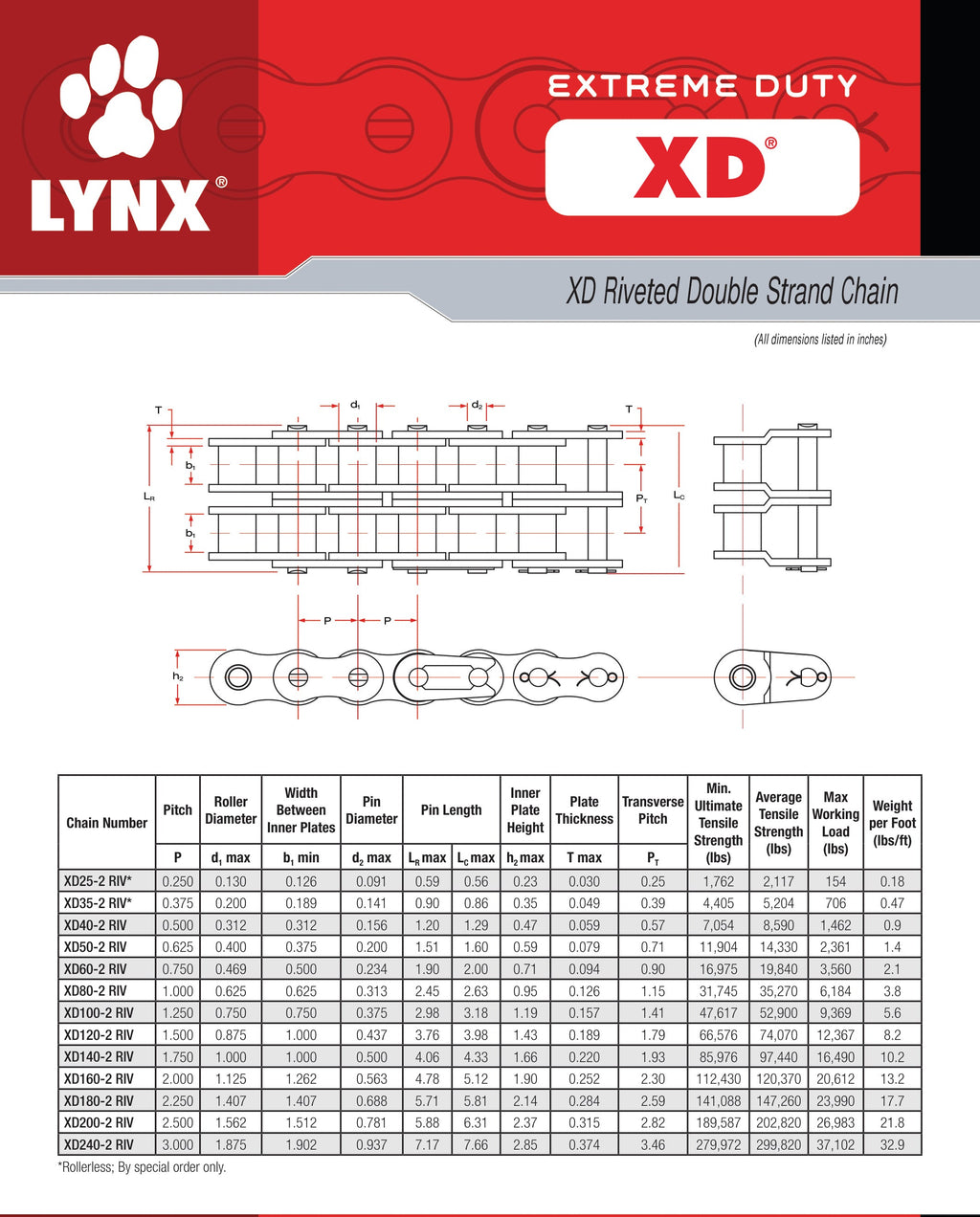

Specifications

Chain Size 200
Series XD200 Series
Number of strands 2
Material Steel
Pitch 2.500
Roller Diameter 1.562
Pin Diameter 0.781
Pin Length 5.880
Link Plate Height 2.370
Plate Thickness 0.315
Width Between Inner Plates 1.512
Transverse Pitch 2.820
Average Tensile Strength (lbs.) 202820
Max Working Load (lbs.) 26983
Minimum Tensile Strength (lbs.) 189587
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 6.6 lbs/ft
Total Reel Weight 33 lbs (5 ft × 6.6 lbs/ft)
GTIN 192056077379
