Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same XD200 family to join the chain ends after installation:
XD200 C/P C/L
XD200 O/L
This chain mates with #200 (2-1/2") ANSI standard sprockets. Browse our BlackStar selection in this pitch.
View #200 Sprockets →The Lynx XD200 RIV 5' is a 5-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

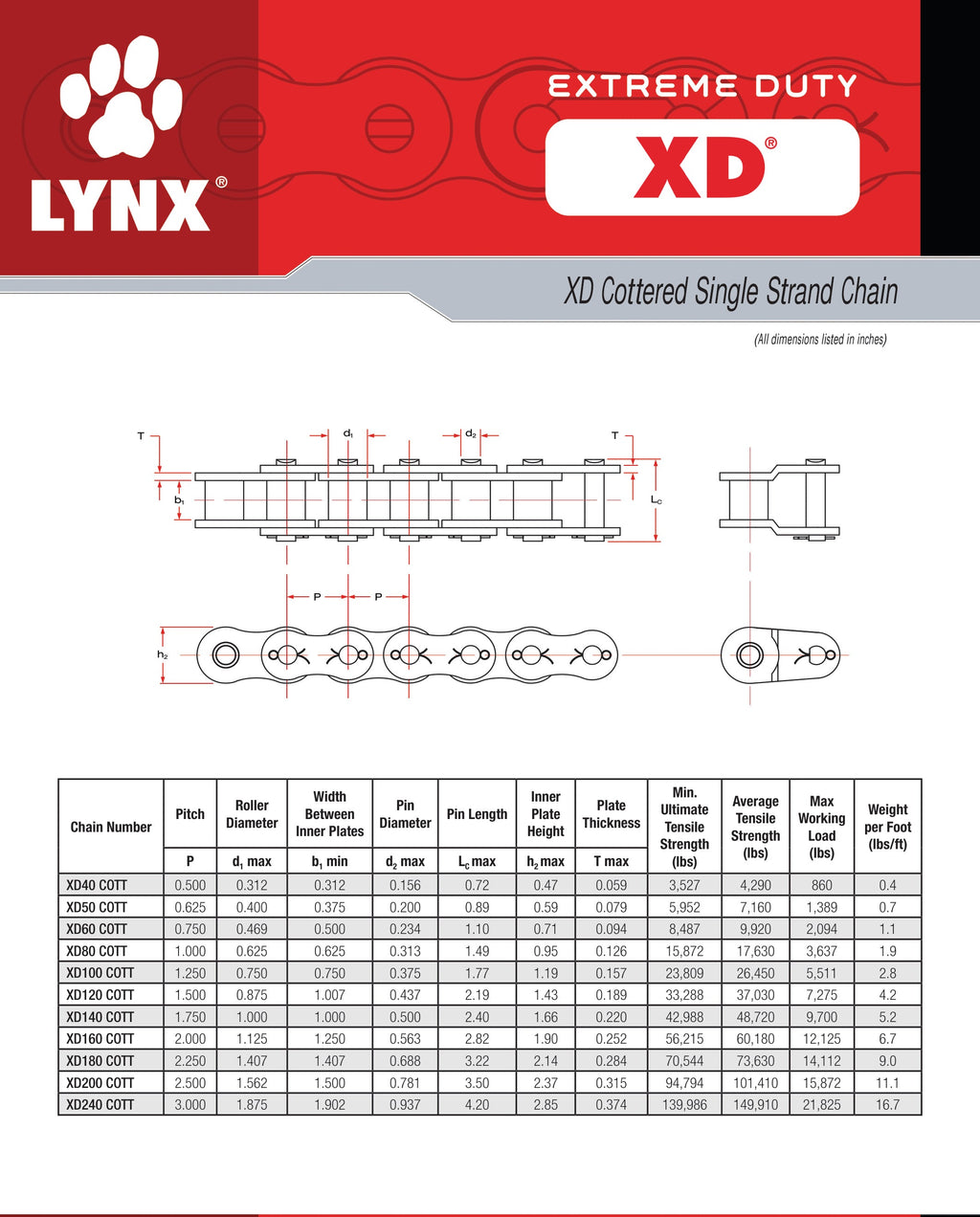

Specifications
| Chain Size | 200 |
| Series | XD200 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 2.500 |
| Roller Diameter | 1.562 |
| Pin Diameter | 0.781 |
| Pin Length | 3.060 |
| Link Plate Height | 2.370 |
| Plate Thickness | 0.315 |
| Width Between Inner Plates | 1.512 |
| Average Tensile Strength (lbs.) | 101410 |
| Max Working Load (lbs.) | 15872 |
| Minimum Tensile Strength (lbs.) | 94794 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 11.4 lbs/ft |
| Total Reel Weight | 57 lbs (5 ft × 11.4 lbs/ft) |
| GTIN | 192056077348 |
