Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same XD240 family to join the chain ends after installation:
XD240 C/P C/L
XD240 O/L
This chain mates with #240 (3") ANSI standard sprockets. Browse our BlackStar selection in this pitch.
View #240 Sprockets →The Lynx XD240 RIV 5' is a 5-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

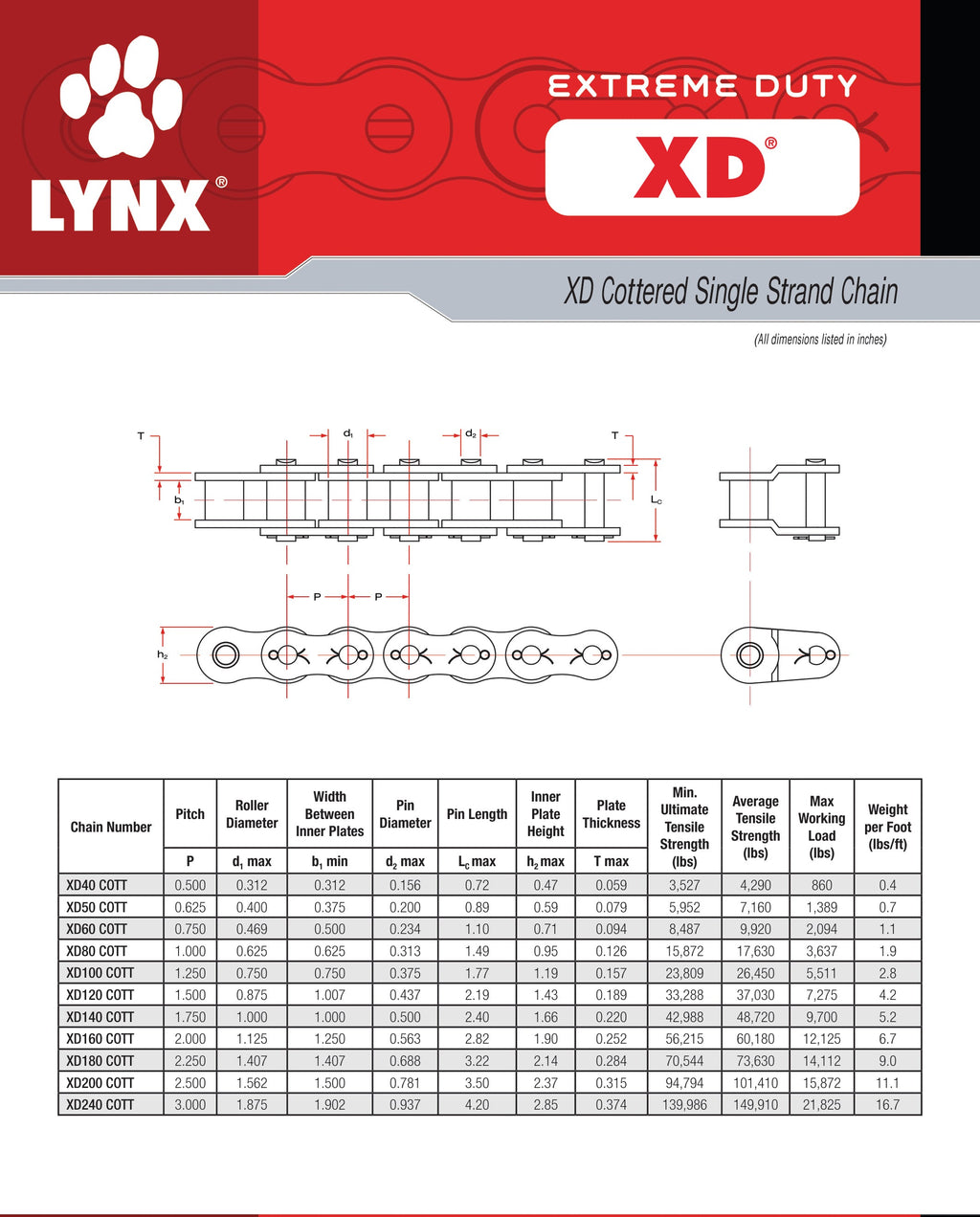

Specifications
| Chain Size | 240 |
| Series | XD240 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 3.000 |
| Roller Diameter | 1.875 |
| Pin Diameter | 0.937 |
| Pin Length | 3.720 |
| Link Plate Height | 2.850 |
| Plate Thickness | 0.374 |
| Width Between Inner Plates | 1.902 |
| Average Tensile Strength (lbs.) | 149910 |
| Max Working Load (lbs.) | 21825 |
| Minimum Tensile Strength (lbs.) | 139986 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 5 lbs/ft |
| Total Reel Weight | 25 lbs (5 ft × 5 lbs/ft) |
| GTIN | 192056077409 |
