Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same XD40 family to join the chain ends after installation:
XD40 S/C C/L
XD40 O/L
This chain mates with #40 (1/2") ANSI standard sprockets. Browse our BlackStar selection in this pitch.
View #40 Sprockets →The Lynx XD40 RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

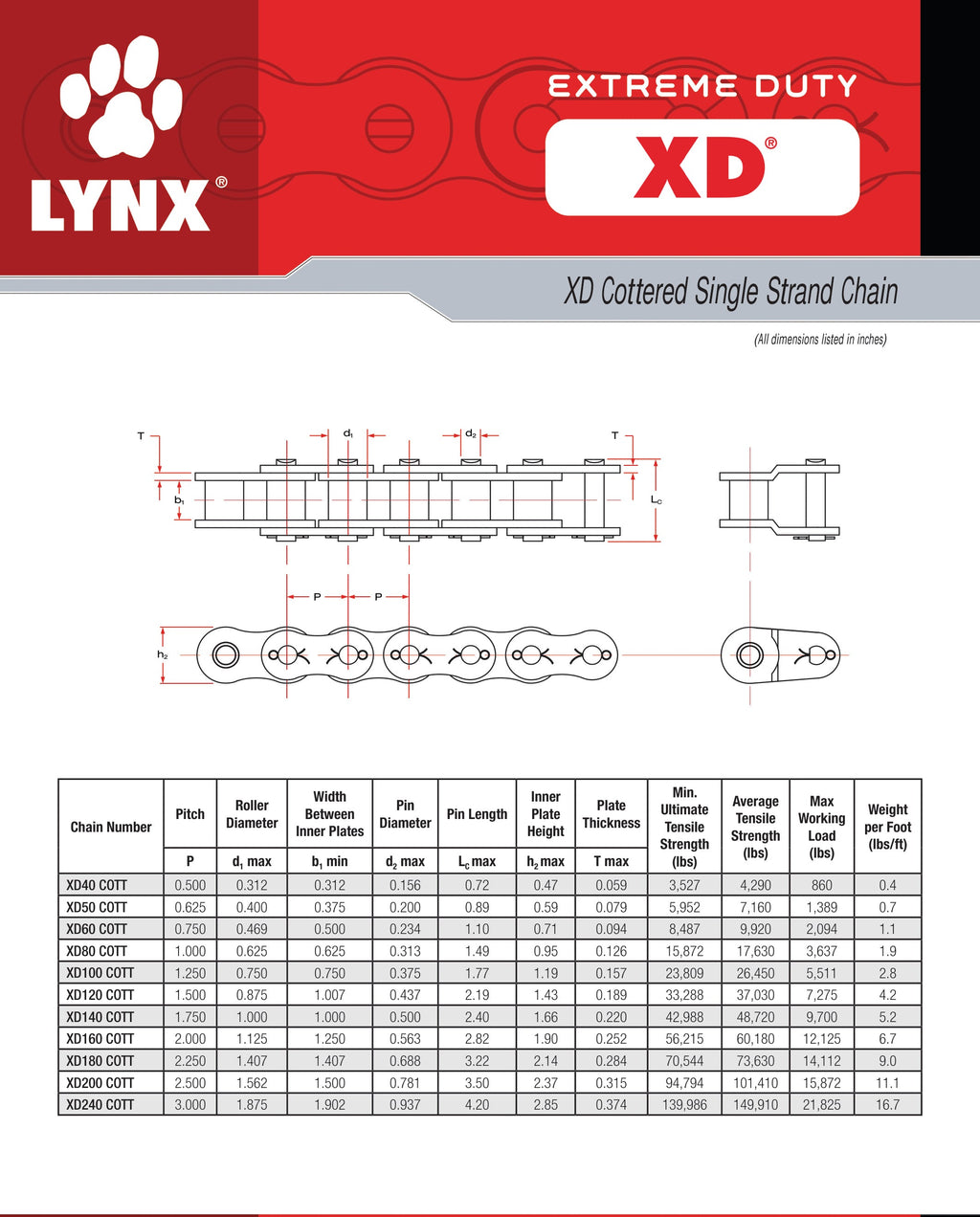

Specifications
| Chain Size | 40 |
| Series | XD40 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 0.500 |
| Roller Diameter | 0.312 |
| Pin Diameter | 0.156 |
| Pin Length | 0.630 |
| Link Plate Height | 0.470 |
| Plate Thickness | 0.059 |
| Width Between Inner Plates | 0.313 |
| Average Tensile Strength (lbs.) | 4290 |
| Max Working Load (lbs.) | 860 |
| Minimum Tensile Strength (lbs.) | 3527 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 0.4 lbs/ft |
| Total Reel Weight | 4 lbs (10 ft × 0.4 lbs/ft) |
| GTIN | 192056077485 |
