Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same XD41 family to join the chain ends after installation:
XD41 S/C C/L
XD41 O/L
This chain mates with #40 (1/2") ANSI standard sprockets. Browse our BlackStar selection in this pitch.

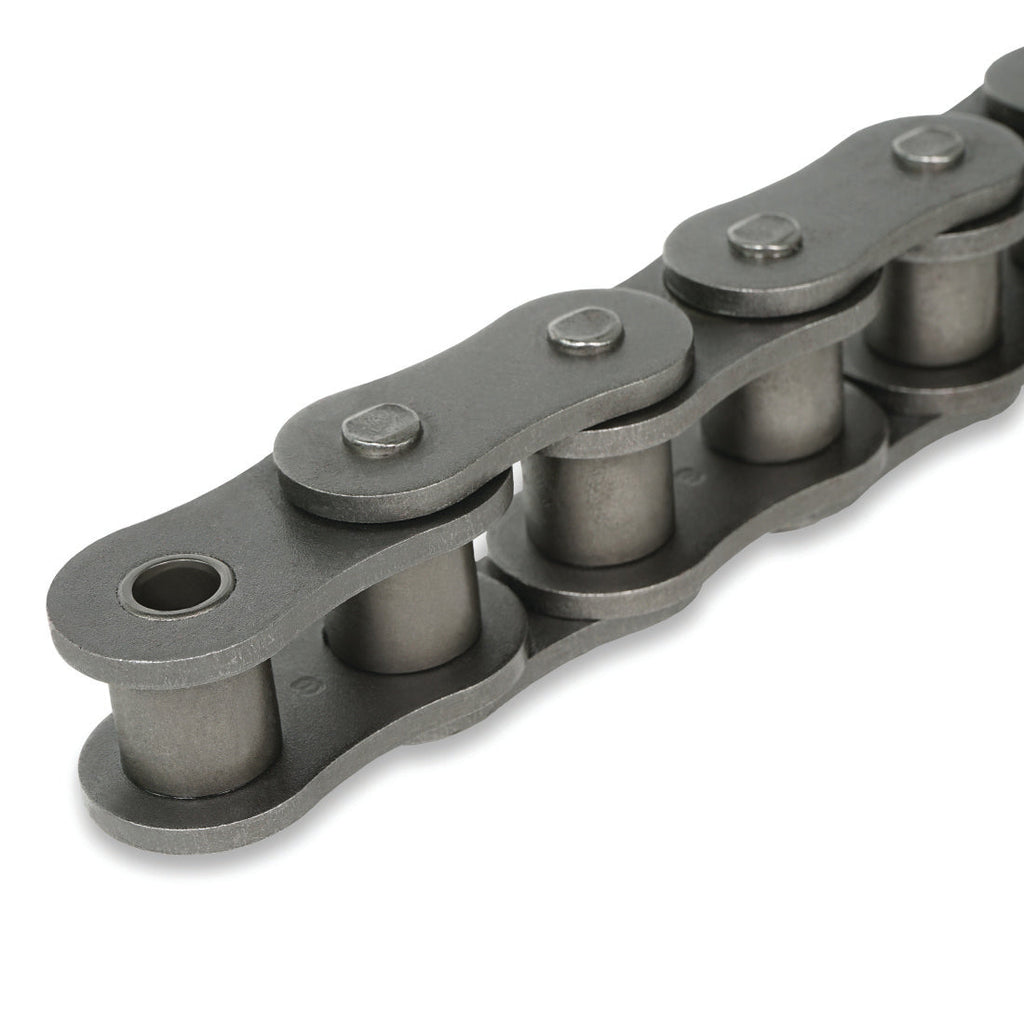

View #40 Sprockets →The Lynx XD41 RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.
Specifications
| Chain Size | 41 |
| Series | XD41 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 0.500 |
| Roller Diameter | 0.306 |
| Pin Diameter | 0.141 |
| Pin Length | 0.580 |
| Link Plate Height | 0.382 |
| Plate Thickness | 0.049 |
| Width Between Inner Plates | 0.252 |
| Average Tensile Strength (lbs.) | 2403 |
| Max Working Load (lbs.) | 463 |
| Minimum Tensile Strength (lbs.) | 2033 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 0.08 lbs/ft |
| Total Reel Weight | 0.8 lbs (10 ft × 0.08 lbs/ft) |
| GTIN | 192056077553 |
Compatible Components
Matched Sprockets
- 41B10 Roller Chain Sprocket, #41 Chain, 1 Teeth, B Hub
- 41B11 Roller Chain Sprocket, #41 Chain, 11 Teeth, B Hub
- 41B112 Roller Chain Sprocket, #41 Chain, 112 Teeth, B Hub
- 41B12 Roller Chain Sprocket, #41 Chain, 12 Teeth, B Hub
Shop all 764 matched options ›
Connecting Links
- Lynx HD41 R/L - Connecting Link
- Lynx HD41 R/L - Connecting Link
- Lynx HD41 S/C C/L - Connecting Link
- Lynx HD41 S/C C/L - Connecting Link
Shop all 12 matched options ›
Offset Links
- Lynx HD41 O/L - Offset Link
- Lynx HD41 O/L - Offset Link
- Lynx HD41DR O/L - Offset Link
- Lynx HD41DR O/L - Offset Link
Shop all 10 matched options ›
Matched Sprockets
- 41B10 Roller Chain Sprocket, #41 Chain, 1 Teeth, B Hub
- 41B11 Roller Chain Sprocket, #41 Chain, 11 Teeth, B Hub
- 41B112 Roller Chain Sprocket, #41 Chain, 112 Teeth, B Hub
- 41B12 Roller Chain Sprocket, #41 Chain, 12 Teeth, B Hub
Shop all 764 matched options ›
Connecting Links
- Lynx HD41 R/L - Connecting Link
- Lynx HD41 R/L - Connecting Link
- Lynx HD41 S/C C/L - Connecting Link
- Lynx HD41 S/C C/L - Connecting Link
Shop all 12 matched options ›
Offset Links
- Lynx HD41 O/L - Offset Link
- Lynx HD41 O/L - Offset Link
- Lynx HD41DR O/L - Offset Link
- Lynx HD41DR O/L - Offset Link
Shop all 10 matched options ›
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
