Lynx XD50 RIV 50' - XD Extreme Duty Chain 50ft Reel


Price:
$ 443.74

Description

âš¡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same XD50 family to join the chain ends after installation:

CONNECTING LINKS:
XD50 S/C C/L
OFFSET LINKS:
XD50 O/L

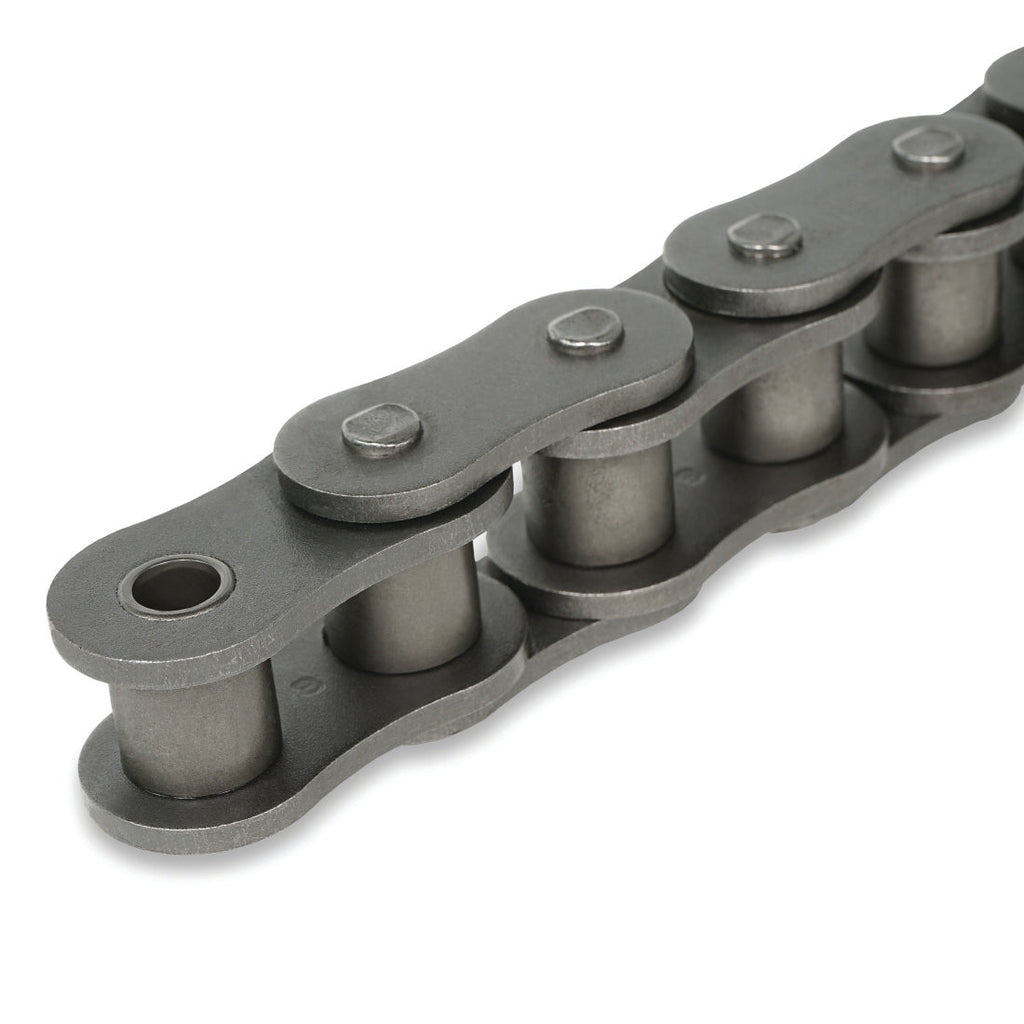

The Lynx XD50 RIV 50' is a 50-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

Specifications

Chain Size 50
Series XD50 Series
Number of strands 1
Material Steel
Pitch 0.630
Roller Diameter 0.400
Pin Diameter 0.200
Pin Length 0.800
Link Plate Height 0.890
Plate Thickness 0.590
Width Between Inner Plates 0.376
Average Tensile Strength (lbs.) 7160
Max Working Load (lbs.) 1389
Minimum Tensile Strength (lbs.) 5952
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 0.7 lbs/ft
Total Reel Weight 35 lbs (50 ft × 0.7 lbs/ft)
GTIN 192056077607
