Lynx XD80 RIV 10' - XD Extreme Duty Chain 10ft Reel


Price:
$ 210.01

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same XD80 family to join the chain ends after installation:

CONNECTING LINKS:
XD80 C/P C/LXD80 S/C C/L
OFFSET LINKS:
XD80 O/L
⚙ Compatible Sprockets

This chain mates with #80 (1") ANSI standard sprockets. Browse our BlackStar selection in this pitch.

View #80 Sprockets →

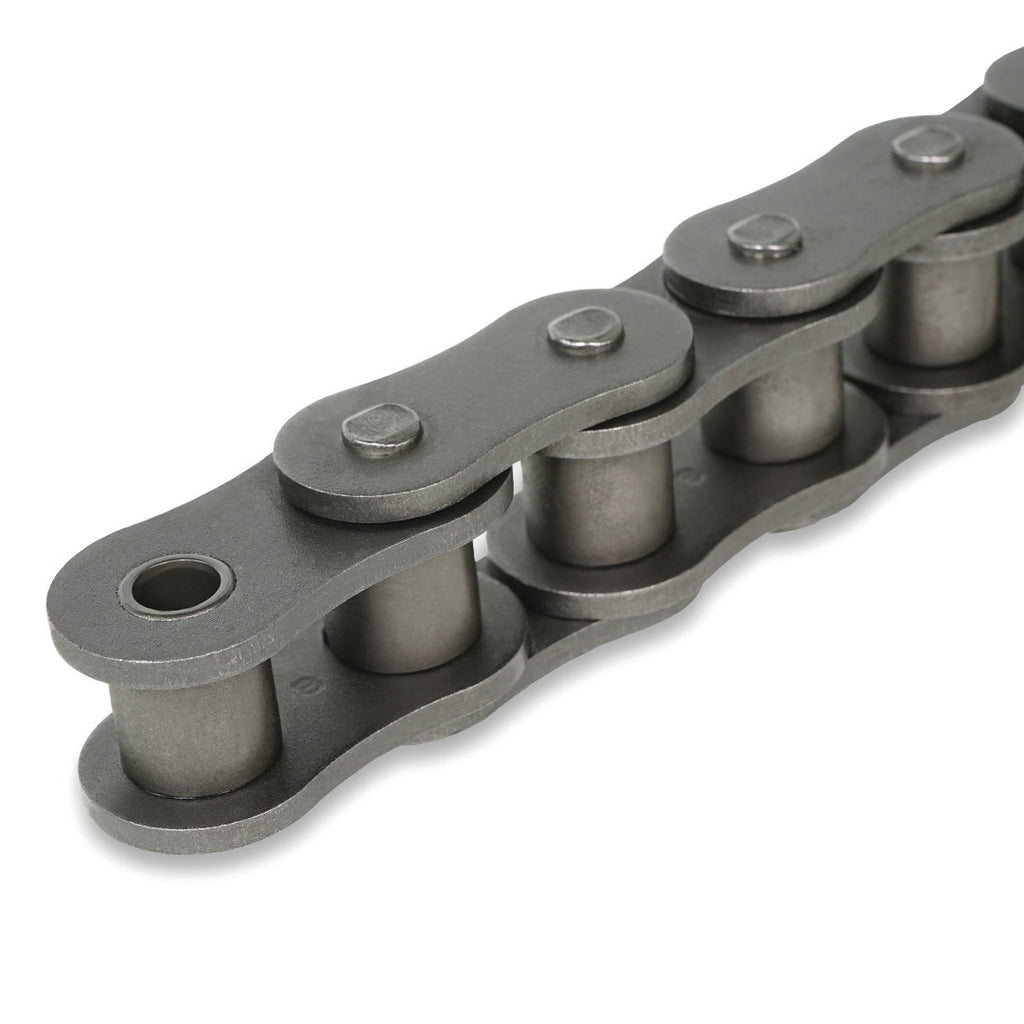

The Lynx XD80 RIV 10' is a 10-foot reel of xd extreme duty chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

Specifications

Chain Size 80
Series XD80 Series
Number of strands 1
Material Steel
Pitch 1.000
Roller Diameter 0.625
Pin Diameter 0.313
Pin Length 1.290
Link Plate Height 0.950
Plate Thickness 0.126
Width Between Inner Plates 0.626
Average Tensile Strength (lbs.) 17630
Max Working Load (lbs.) 3637
Minimum Tensile Strength (lbs.) 15872
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Product Weight (lbs.) 1.900
GTIN 192056077942
