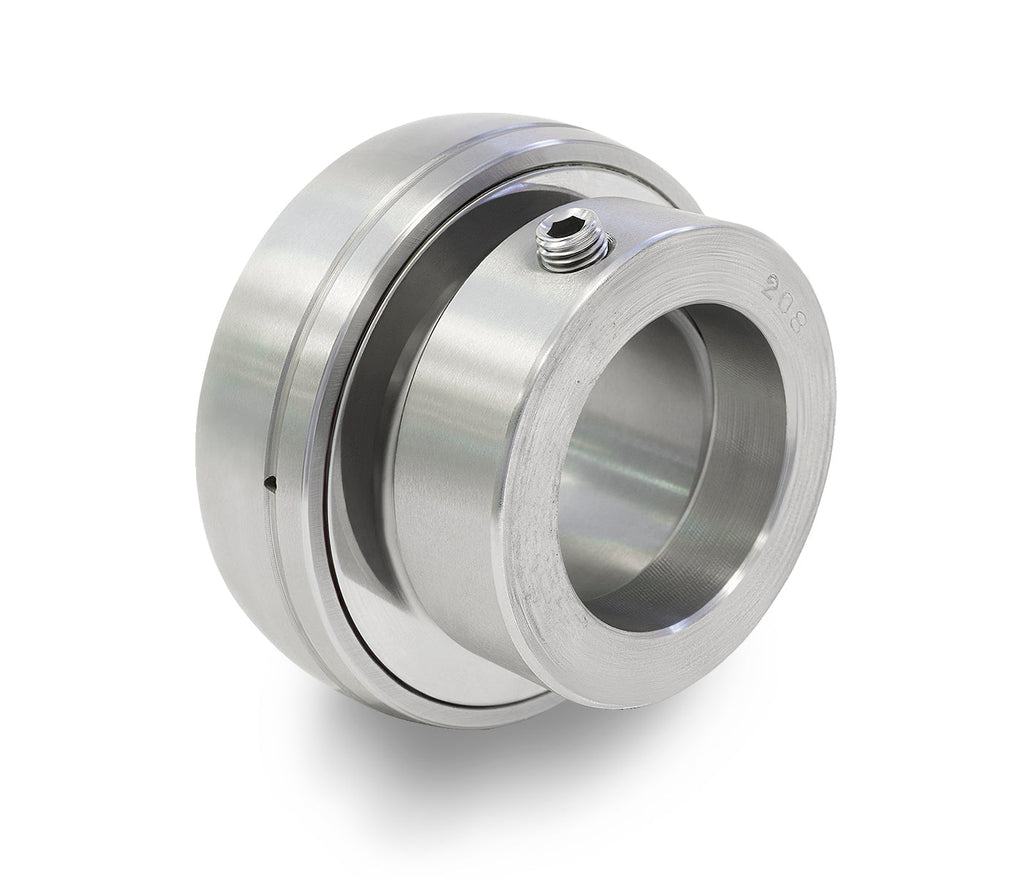

Mariner SHC Bearing Insert - 20mm Bore, Wide Inner Ring Eccentric Collar, Stainless Steel


Price:
$ 59.44

Description

The Mariner SHC204 is a stainless steel ball bearing insert with a 20mm bore and wide inner ring eccentric collar shaft locking mechanism. Manufactured with AISI 440C stainless steel races and balls for superior corrosion resistance. Pre-lubricated with food-grade grease and sealed with food-grade silicone seals. Designed for use in all Mariner stainless steel housings.

Specifications
Bore Size 20mm
Shaft Attachment Wide Inner Ring Eccentric Collar
Series 204
Seal Type Silicone Seal with Flinger
Material 304 Stainless Steel (Housing), 440C Stainless Steel (Races/Balls)
Housing Material AISI 304 Stainless Steel
Dynamic Load Rating (Cr) 2,331 lbs
Static Load Rating (Cor) 1,142 lbs
Limiting Speed 4800 RPM
Bolt Size M10
Weight 0.5 lbs
FDA Compliant Yes
Washdown Suitable Yes
Corrosion Resistance Excellent

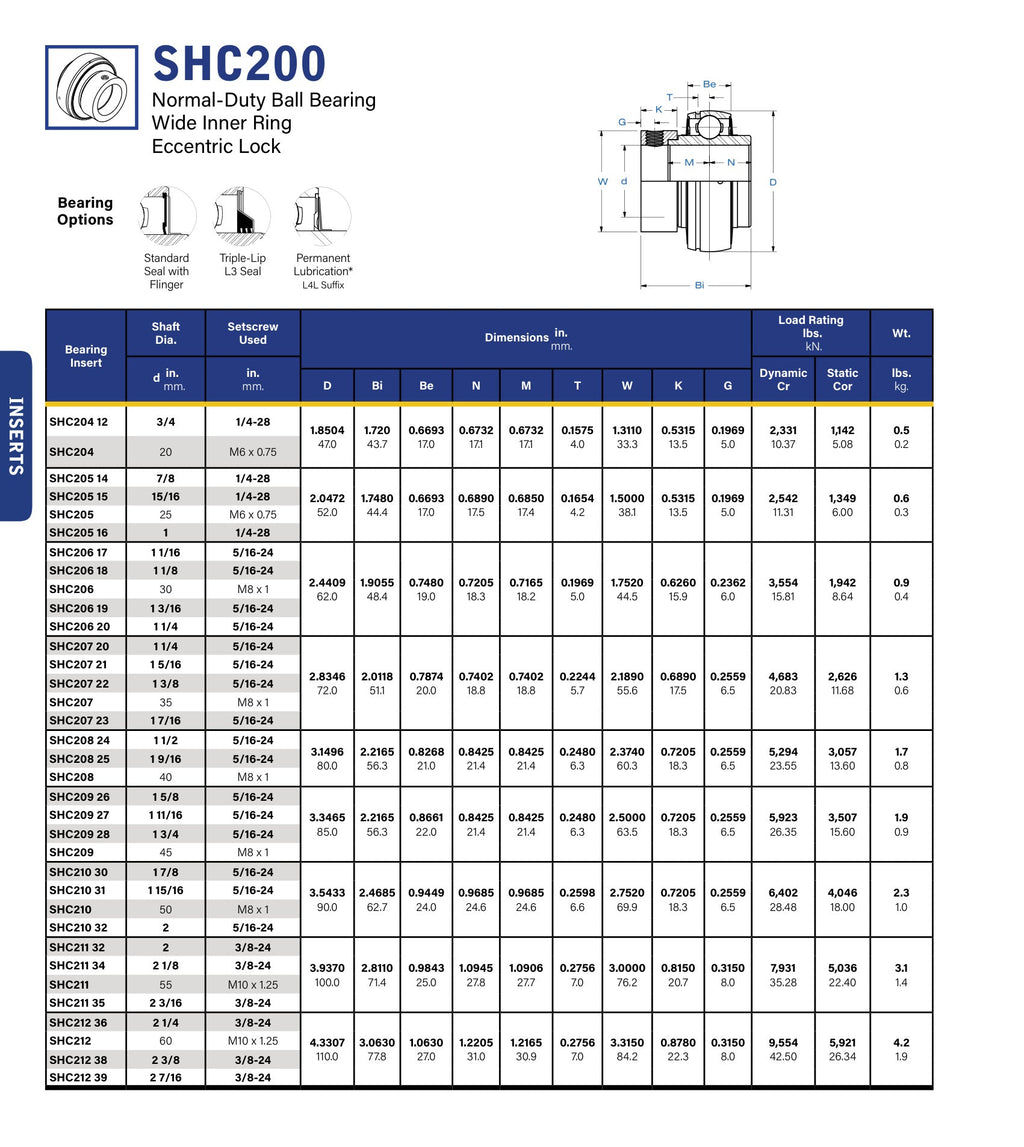

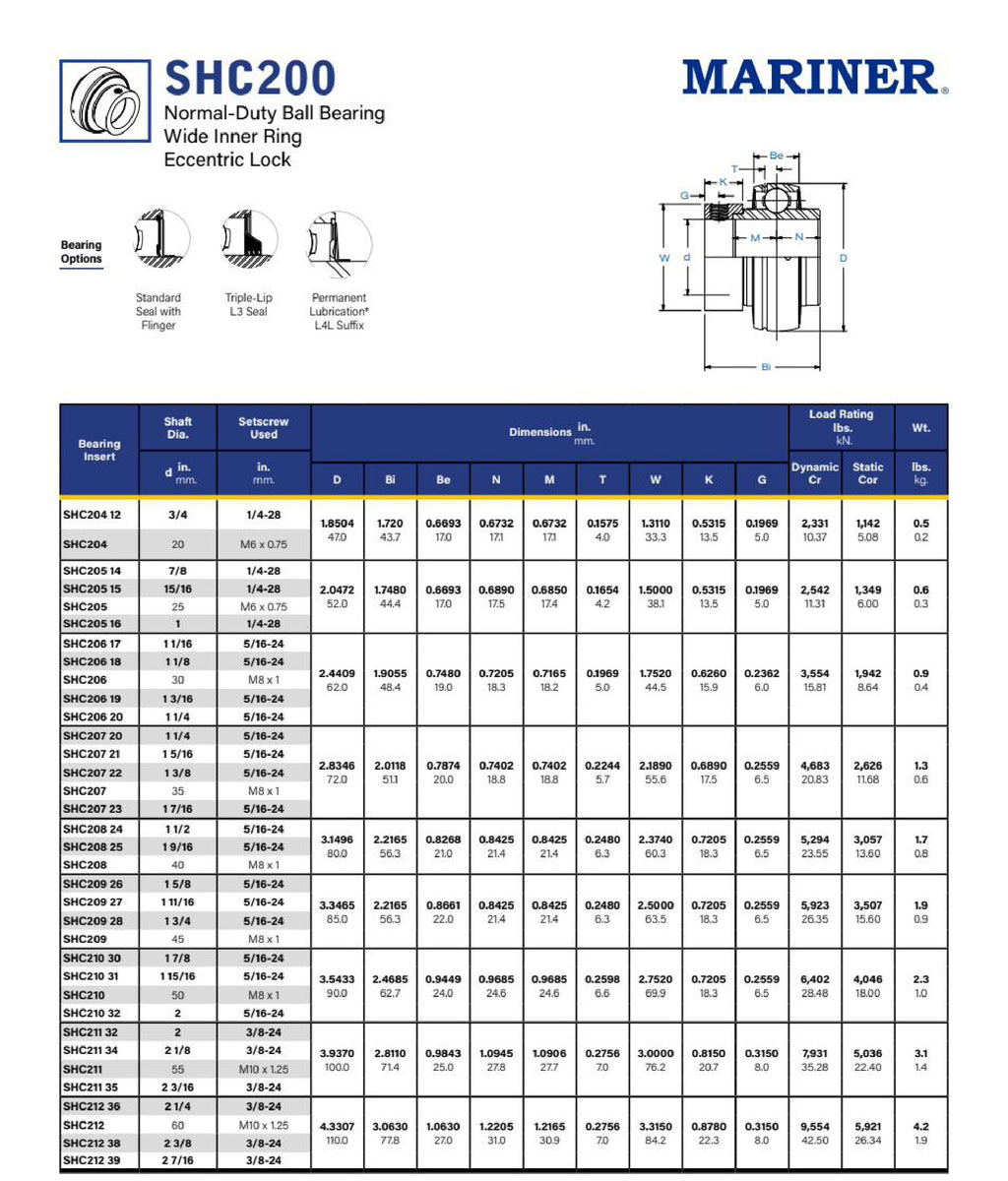

Mariner SHC Insert Bearing Specifications and Dimensions
