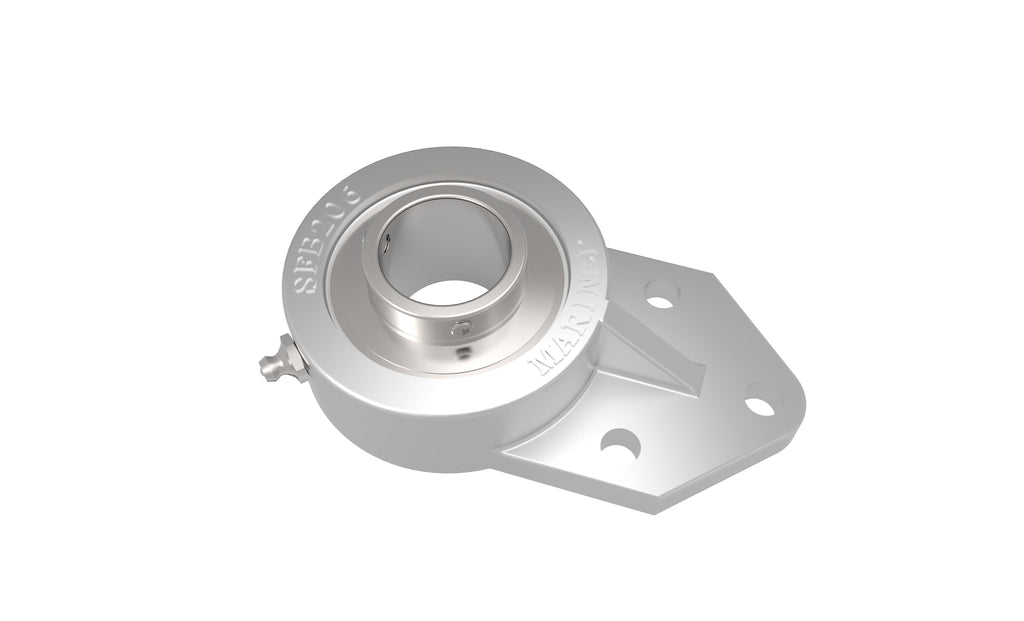

Mariner 3-Bolt Flange Bracket - 25mm Bore, Wide Inner Ring Eccentric Collar, Stainless Steel


Price:
$ 122.81

Description

The Mariner SHCSFBM205 is an all-stainless steel 3-bolt flange bracket unit with a 25mm bore and wide inner ring eccentric collar shaft attachment. Built with AISI 304 stainless steel investment cast housing and AISI 440C stainless steel bearing races and balls, this unit delivers complete corrosion resistance for food processing, pharmaceutical, chemical, and marine applications. Pre-lubricated with Mobil FM222 food-grade grease and sealed with 100% food-grade silicone seals with an external flinger for washdown protection. FDA compliant and washdown suitable.

Specifications
Bore Size 25mm
Housing Style 3-Bolt Flange Bracket
Shaft Attachment Wide Inner Ring Eccentric Collar
Series 205
Seal Type Silicone Seal with Flinger
Material 304 Stainless Steel (Housing), 440C Stainless Steel (Races/Balls)
Housing Material AISI 304 Stainless Steel
Dynamic Load Rating (Cr) 2,542 lbs
Static Load Rating (Cor) 1,349 lbs
Limiting Speed 4480 RPM
Bolt Size M10
Weight 1.5 lbs
FDA Compliant Yes
Washdown Suitable Yes
Corrosion Resistance Excellent
Mariner SHCSFBM Dimensional Drawing and Specifications
