Mariner SNC Bearing Insert - 1-3/16" Bore, Eccentric Collar, Stainless Steel


Price:
$ 74.30

Description

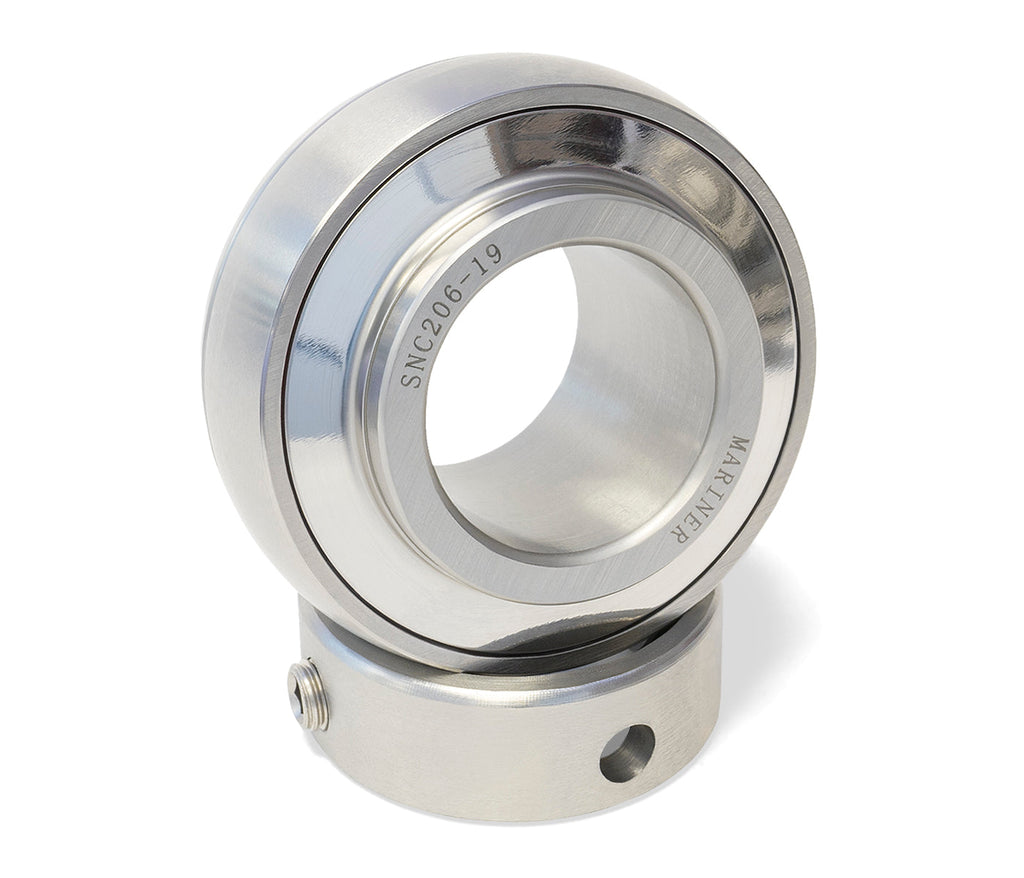

The Mariner SNC206 is a stainless steel ball bearing insert with a 1-3/16" bore and eccentric collar shaft locking mechanism. Manufactured with AISI 440C stainless steel races and balls for superior corrosion resistance. Pre-lubricated with food-grade grease and sealed with food-grade silicone seals. Designed for use in all Mariner stainless steel housings.

Specifications
Bore Size 1-3/16"
Shaft Attachment Eccentric Collar
Series 206
Seal Type Silicone Seal with Flinger
Material 304 Stainless Steel (Housing), 440C Stainless Steel (Races/Balls)
Housing Material AISI 304 Stainless Steel
Dynamic Load Rating (Cr) 3,554 lbs
Static Load Rating (Cor) 1,942 lbs
Limiting Speed 3600 RPM
Bolt Size 1/2"
Weight 0.9 lbs
FDA Compliant Yes
Washdown Suitable Yes
Corrosion Resistance Excellent

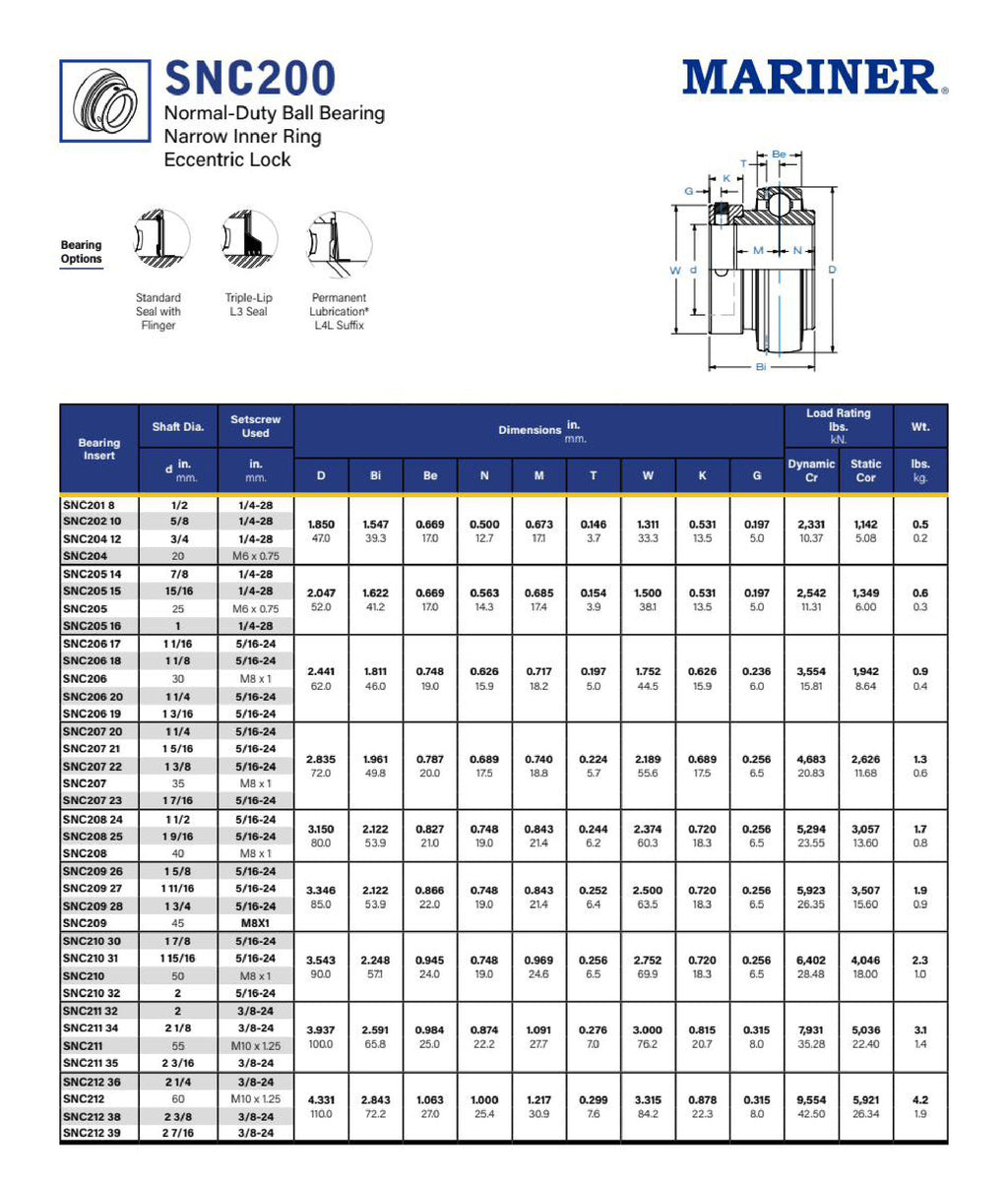

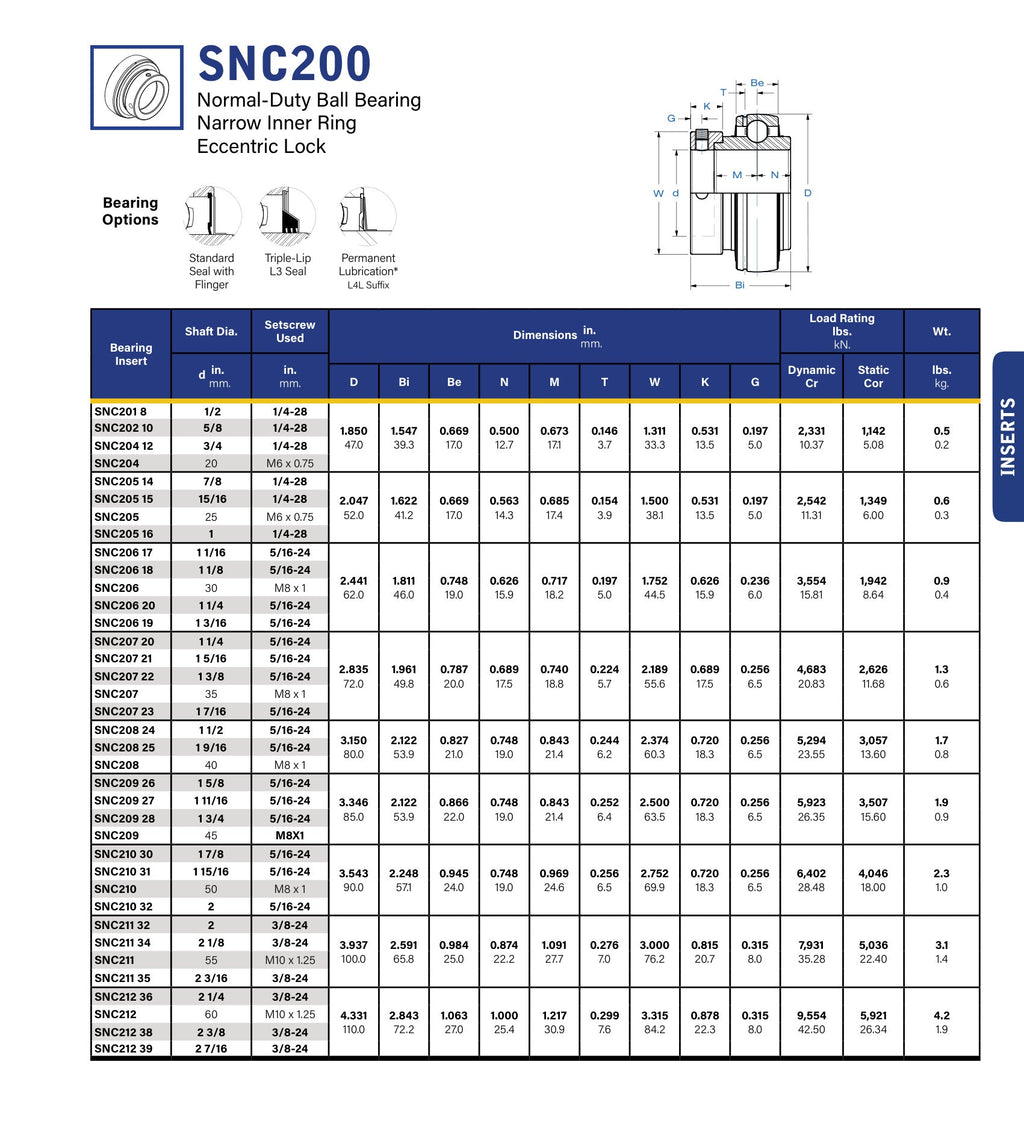

Mariner SNC Insert Bearing Specifications and Dimensions
