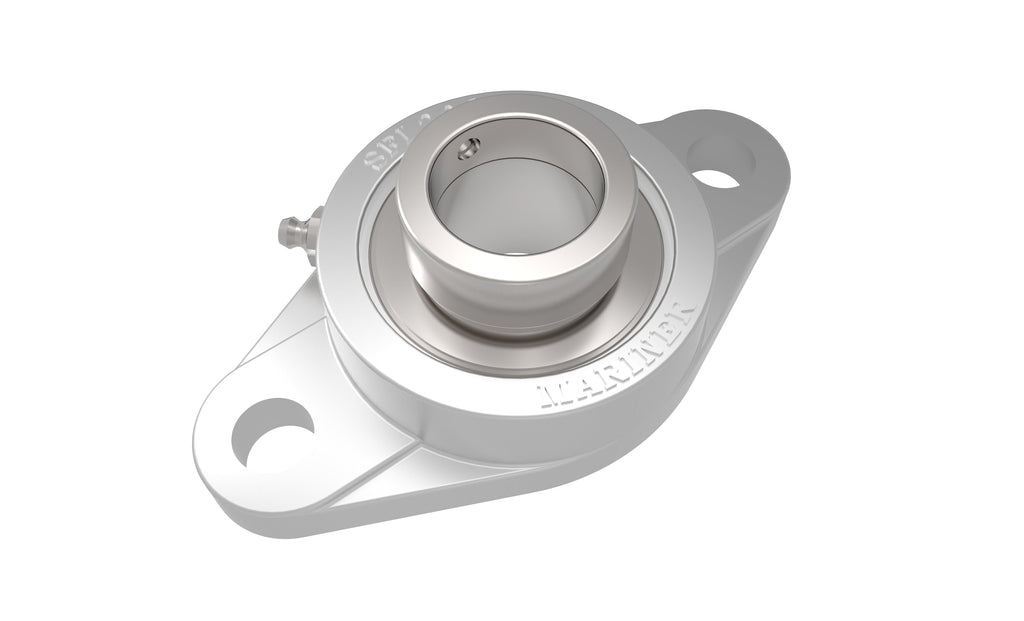

Mariner 2-Bolt Flange Block (Large Bolt Holes) - 1" Bore, Eccentric Collar, Stainless Steel, L3 Seal


Price:
$ 122.81

Description

The Mariner SNCSFLM205 is an all-stainless steel 2-bolt flange block (large bolt holes) unit with a 1" bore and eccentric collar shaft attachment. Built with AISI 304 stainless steel investment cast housing and AISI 440C stainless steel bearing races and balls, this unit delivers complete corrosion resistance for food processing, pharmaceutical, chemical, and marine applications. Equipped with a triple-lip L3 seal for enhanced contamination protection in demanding environments. Pre-lubricated with Mobil FM222 food-grade grease and sealed with 100% food-grade silicone seals with an external flinger for washdown protection. FDA compliant and washdown suitable.

Specifications
Bore Size 1"
Housing Style 2-Bolt Flange Block (Large Bolt Holes)
Shaft Attachment Eccentric Collar
Series 205
Seal Type Triple-Lip L3 Seal
Material 304 Stainless Steel (Housing), 440C Stainless Steel (Races/Balls)
Housing Material AISI 304 Stainless Steel
Dynamic Load Rating (Cr) 2,542 lbs
Static Load Rating (Cor) 1,349 lbs
Limiting Speed 600 RPM
Bolt Size 3/8"
Weight 2.0 lbs
FDA Compliant Yes
Washdown Suitable Yes
Corrosion Resistance Excellent

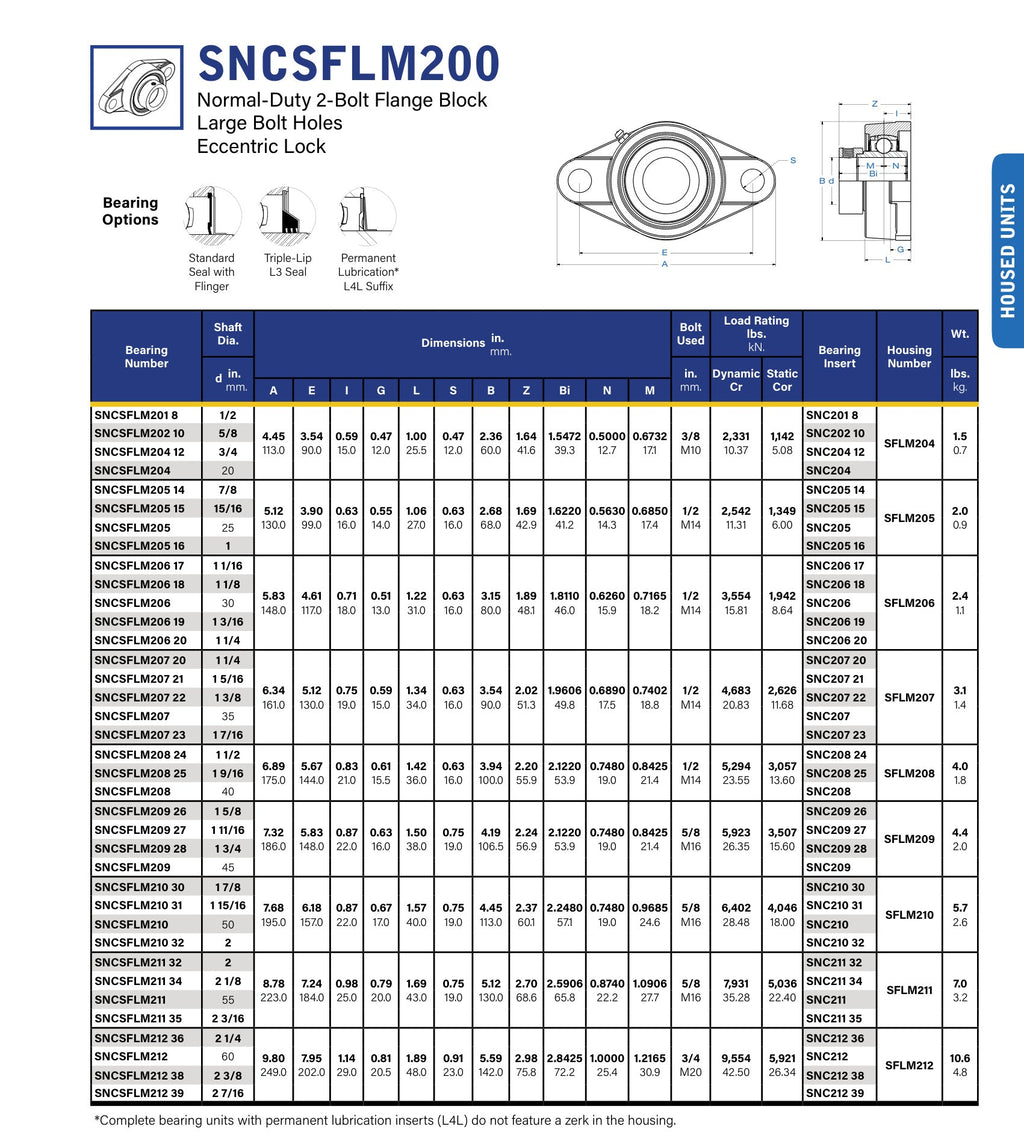

Mariner SNCSFLM Dimensional Drawing and Specifications
