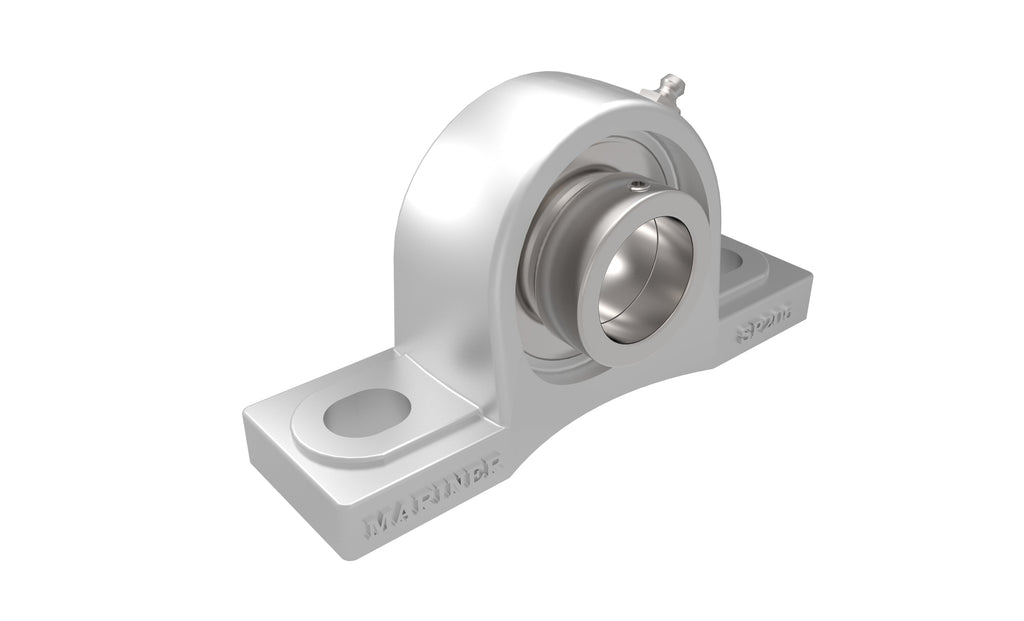

Mariner 2-Bolt Pillow Block - 40mm Bore, Eccentric Collar, Stainless Steel


Price:
$ 250.18

Description

The Mariner SNCSPM208 is an all-stainless steel 2-bolt pillow block unit with a 40mm bore and eccentric collar shaft attachment. Built with AISI 304 stainless steel investment cast housing and AISI 440C stainless steel bearing races and balls, this unit delivers complete corrosion resistance for food processing, pharmaceutical, chemical, and marine applications. Pre-lubricated with Mobil FM222 food-grade grease and sealed with 100% food-grade silicone seals with an external flinger for washdown protection. FDA compliant and washdown suitable.

Specifications
Bore Size 40mm
Housing Style 2-Bolt Pillow Block
Shaft Attachment Eccentric Collar
Series 208
Seal Type Silicone Seal with Flinger
Material 304 Stainless Steel (Housing), 440C Stainless Steel (Races/Balls)
Housing Material AISI 304 Stainless Steel
Dynamic Load Rating (Cr) 5,294 lbs
Static Load Rating (Cor) 3,057 lbs
Limiting Speed 2880 RPM
Bolt Size M14
Weight 4.7 lbs
FDA Compliant Yes
Washdown Suitable Yes
Corrosion Resistance Excellent

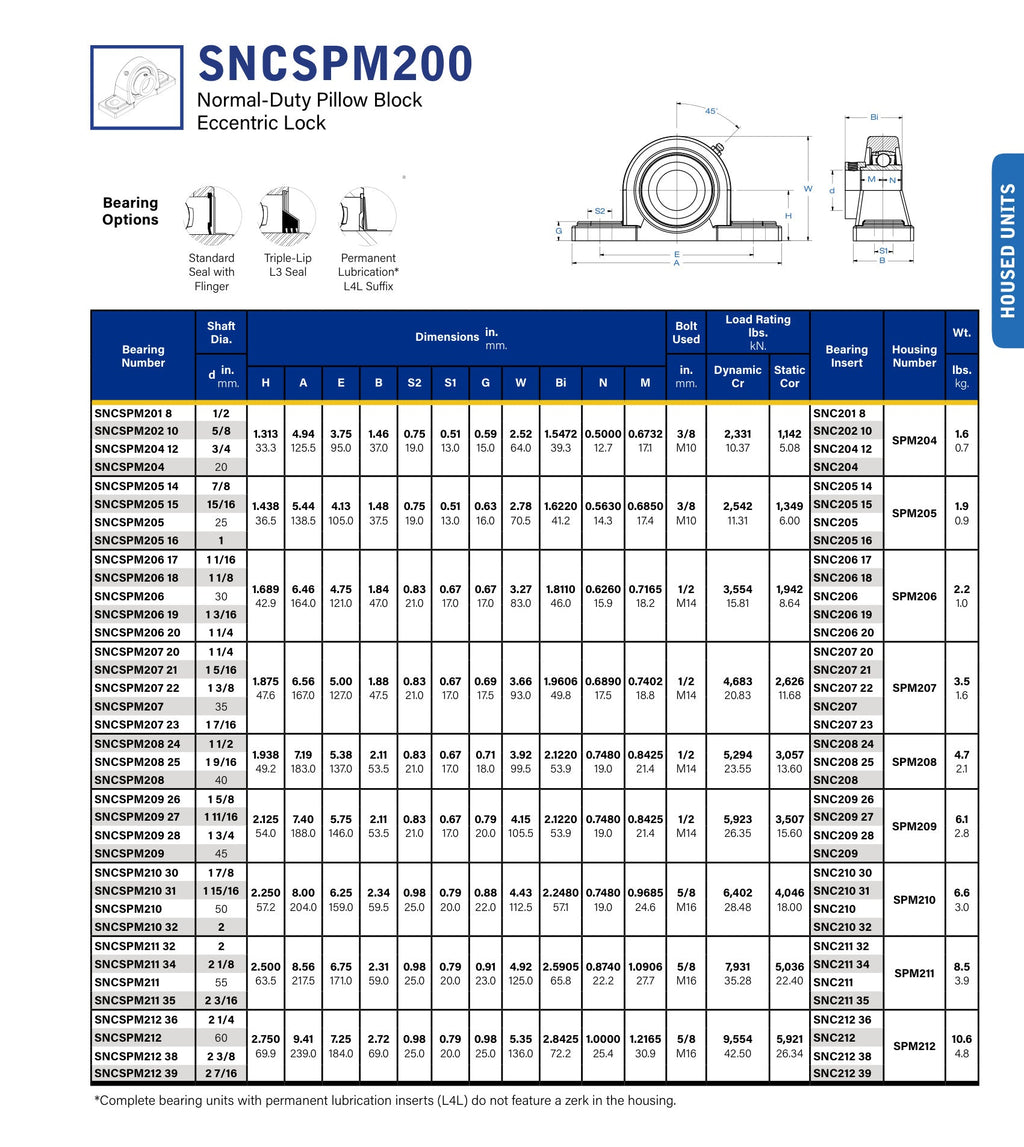

Mariner SNCSPM Dimensional Drawing and Specifications
