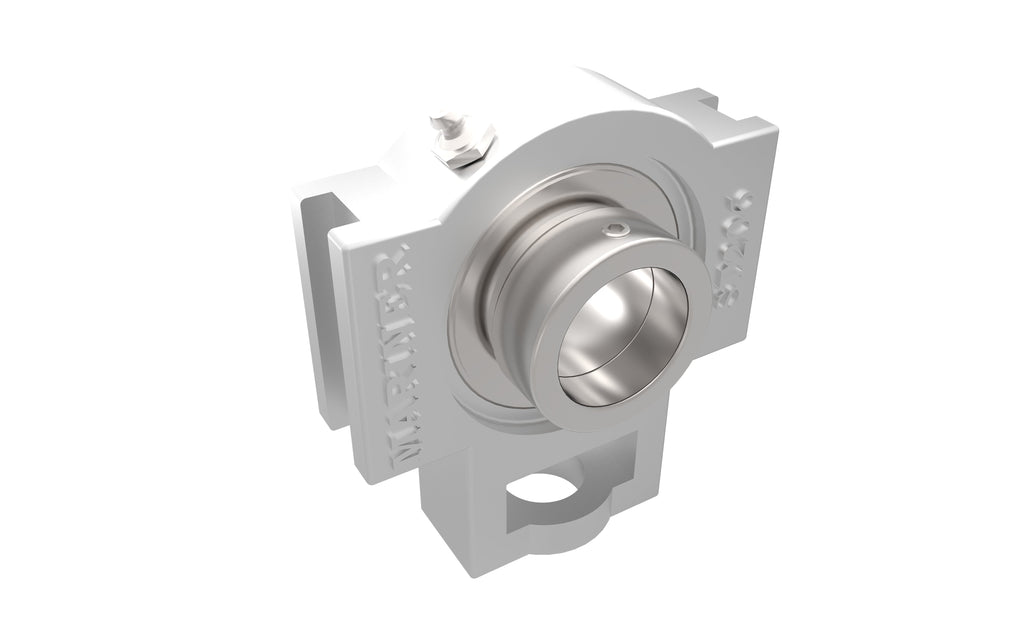

Mariner Take-Up Unit - 1-1/4" Bore, Eccentric Collar, Stainless Steel


Price:
$ 228.08

Description

The Mariner SNCSTM207 is an all-stainless steel take-up unit unit with a 1-1/4" bore and eccentric collar shaft attachment. Built with AISI 304 stainless steel investment cast housing and AISI 440C stainless steel bearing races and balls, this unit delivers complete corrosion resistance for food processing, pharmaceutical, chemical, and marine applications. Pre-lubricated with Mobil FM222 food-grade grease and sealed with 100% food-grade silicone seals with an external flinger for washdown protection. FDA compliant and washdown suitable.

Specifications
Bore Size 1-1/4"
Housing Style Take-Up Unit
Shaft Attachment Eccentric Collar
Series 207
Seal Type Silicone Seal with Flinger
Material 304 Stainless Steel (Housing), 440C Stainless Steel (Races/Balls)
Housing Material AISI 304 Stainless Steel
Dynamic Load Rating (Cr) 4,683 lbs
Static Load Rating (Cor) 2,626 lbs
Limiting Speed 3200 RPM
Bolt Size 1/2"
Weight 4.2 lbs
FDA Compliant Yes
Washdown Suitable Yes
Corrosion Resistance Excellent

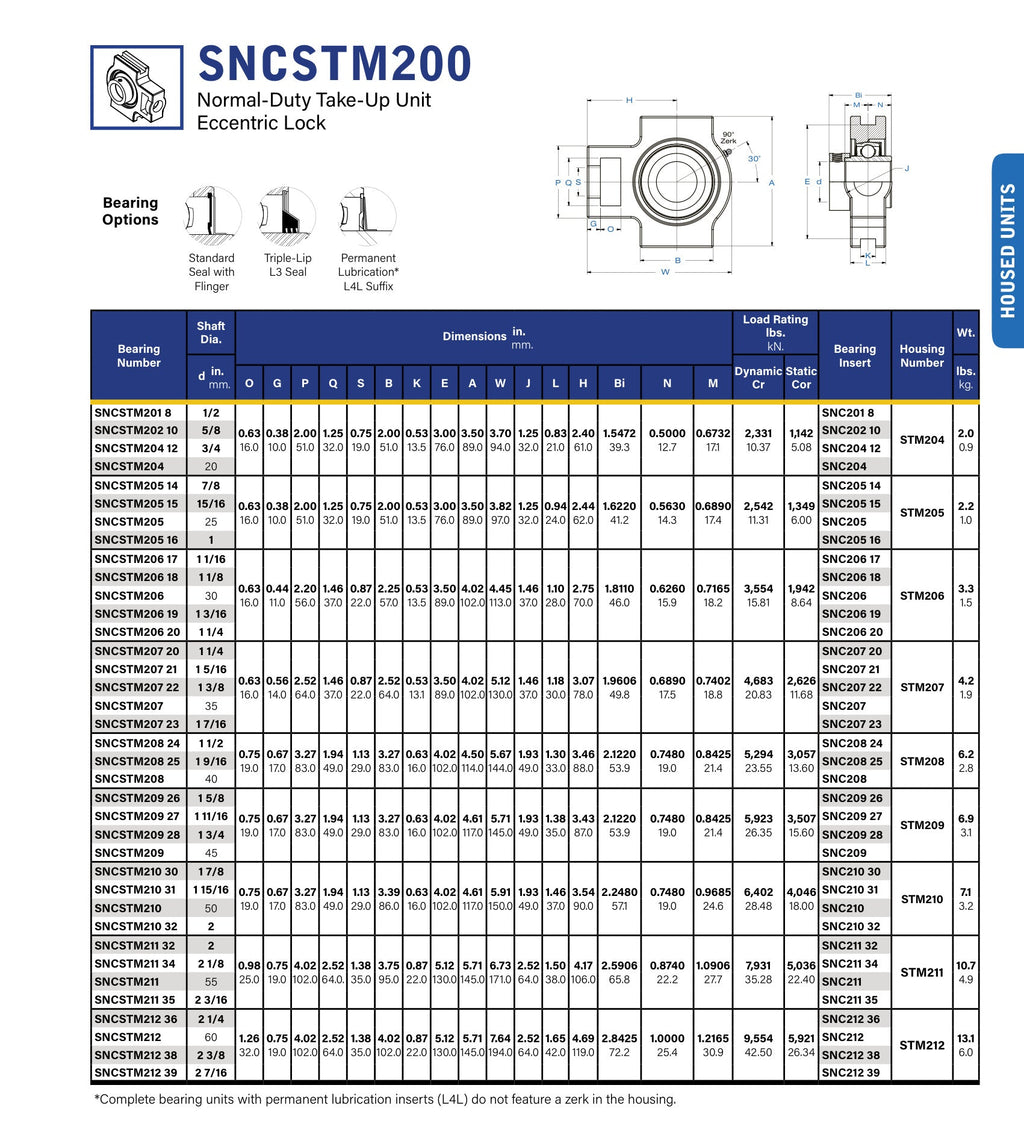

Mariner SNCSTM Dimensional Drawing and Specifications
