Mariner 3-Bolt Flange Bracket - 5/8" Bore, Set Screw, Stainless Steel, L3 Seal


Price:
$ 111.11

Description

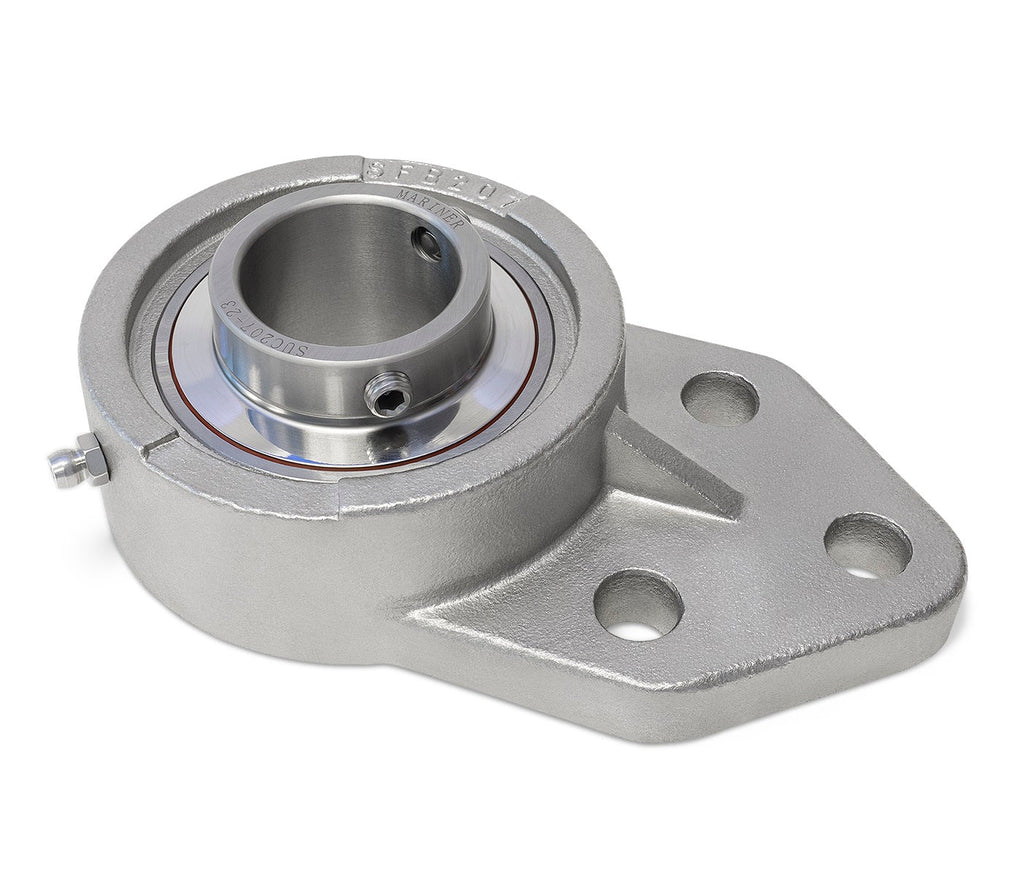

The Mariner SUCSFBM202 is an all-stainless steel 3-bolt flange bracket unit with a 5/8" bore and set screw shaft attachment. Built with AISI 304 stainless steel investment cast housing and AISI 440C stainless steel bearing races and balls, this unit delivers complete corrosion resistance for food processing, pharmaceutical, chemical, and marine applications. Equipped with a triple-lip L3 seal for enhanced contamination protection in demanding environments. Pre-lubricated with Mobil FM222 food-grade grease and sealed with 100% food-grade silicone seals with an external flinger for washdown protection. FDA compliant and washdown suitable.

Specifications
Bore Size 5/8"
Housing Style 3-Bolt Flange Bracket
Shaft Attachment Set Screw
Series 202
Seal Type Triple-Lip L3 Seal
Material 304 Stainless Steel (Housing), 440C Stainless Steel (Races/Balls)
Housing Material AISI 304 Stainless Steel
Dynamic Load Rating (Cr) 2,331 lbs
Static Load Rating (Cor) 1,142 lbs
Limiting Speed 680 RPM
Bolt Size 3/8"
Weight 1.5 lbs
FDA Compliant Yes
Washdown Suitable Yes
Corrosion Resistance Excellent

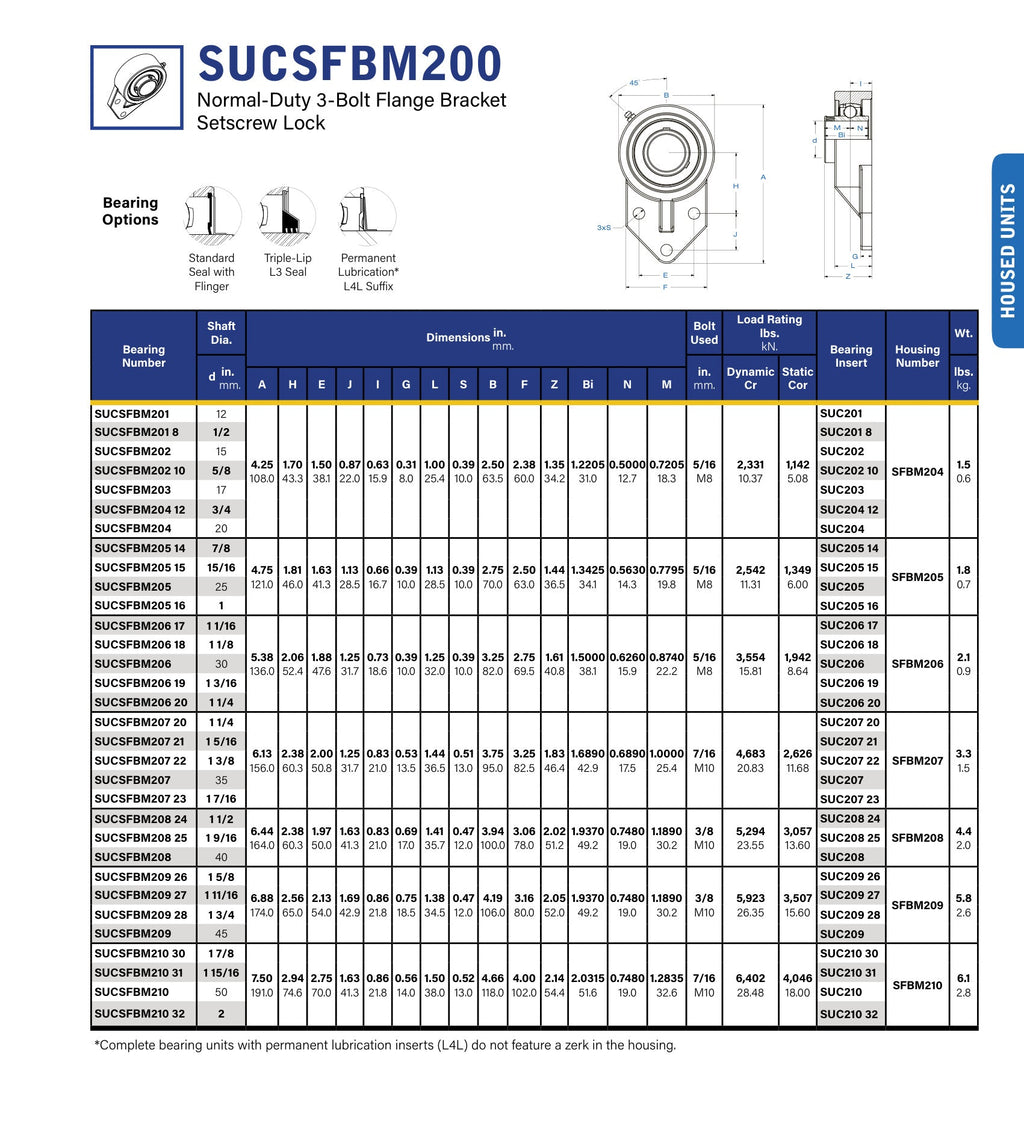

Mariner SUCSFBM Dimensional Drawing and Specifications
