Mariner 2-Bolt Flange Block - 1-3/16" Bore, Set Screw, Stainless Steel, Lubrilife


Price:
$ 269.78

Description

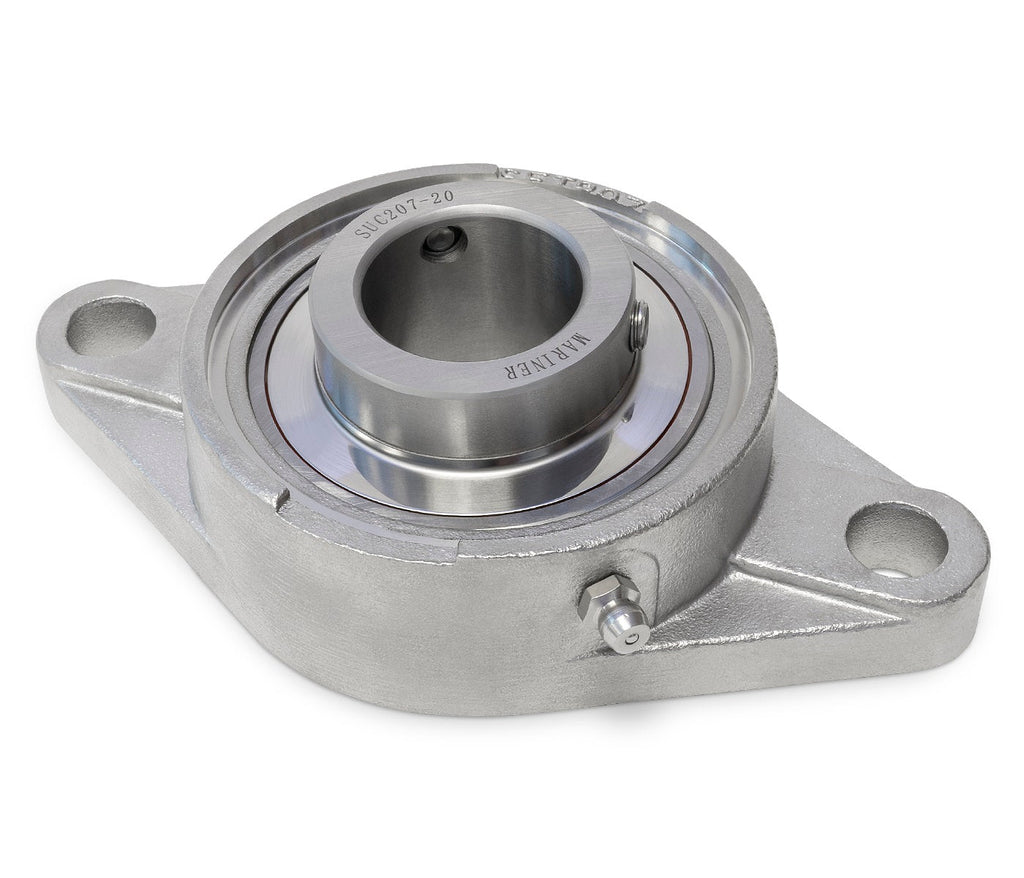

The Mariner SUCSFTM206 is an all-stainless steel 2-bolt flange block unit with a 1-3/16" bore and set screw shaft attachment. Built with AISI 304 stainless steel investment cast housing and AISI 440C stainless steel bearing races and balls, this unit delivers complete corrosion resistance for food processing, pharmaceutical, chemical, and marine applications. Features Lubrilife permanent lubrication technology, eliminating the need for regreasing and reducing maintenance costs. Pre-lubricated with Mobil FM222 food-grade grease and sealed with 100% food-grade silicone seals with an external flinger for washdown protection. FDA compliant and washdown suitable.

Specifications
Bore Size 1-3/16"
Housing Style 2-Bolt Flange Block
Shaft Attachment Set Screw
Series 206
Seal Type Lubrilife Permanent Lubrication
Material 304 Stainless Steel (Housing), 440C Stainless Steel (Races/Balls)
Housing Material AISI 304 Stainless Steel
Dynamic Load Rating (Cr) 3,554 lbs
Static Load Rating (Cor) 1,942 lbs
Limiting Speed 3600 RPM
Bolt Size 1/2"
Weight 2.0 lbs
FDA Compliant Yes
Washdown Suitable Yes
Corrosion Resistance Excellent

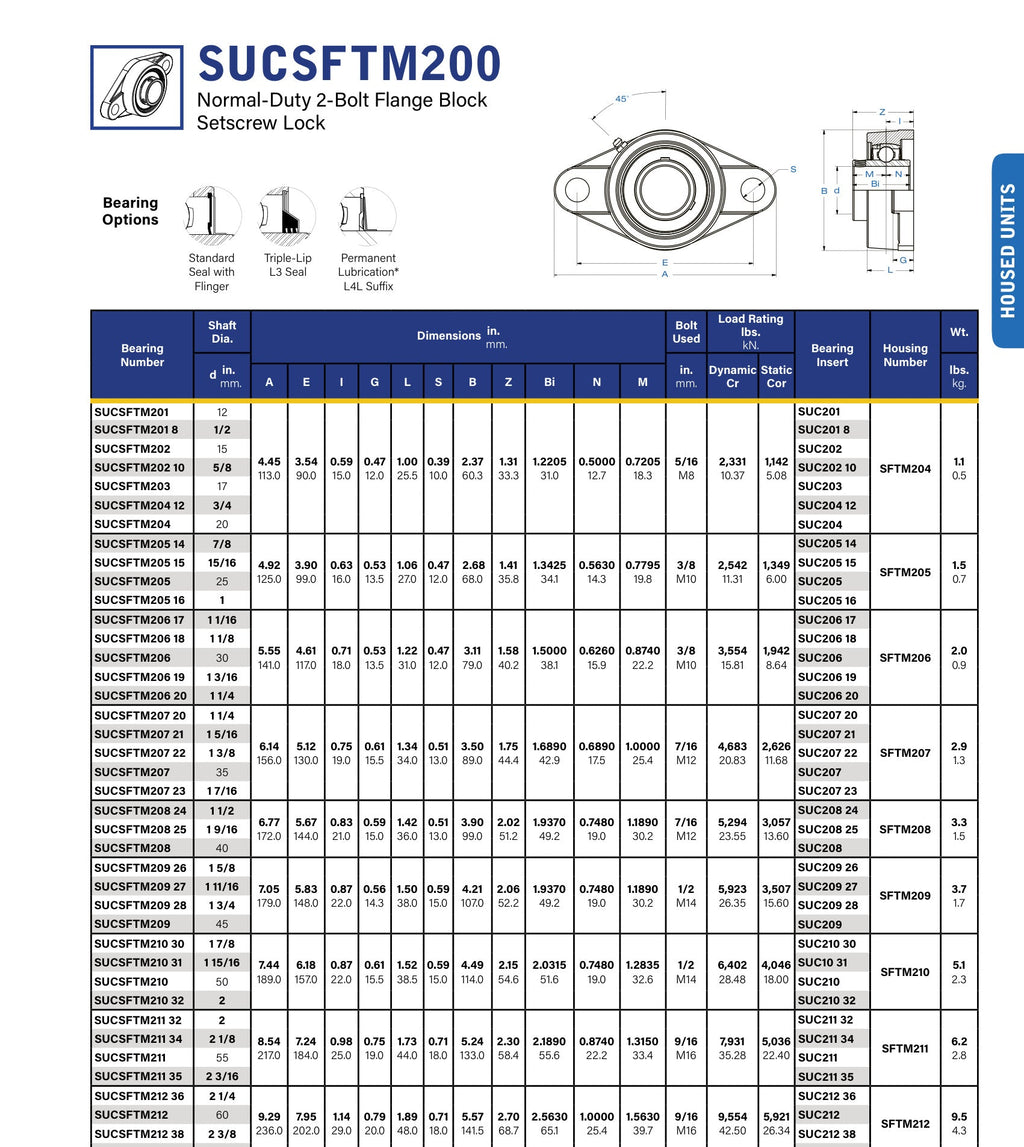

Mariner SUCSFTM Dimensional Drawing and Specifications
