Mariner 2-Bolt Pillow Block - 2-7/16" Bore, Set Screw, Stainless Steel


Price:
$ 513.99

Description

The Mariner SUCSPM212 is an all-stainless steel 2-bolt pillow block unit with a 2-7/16" bore and set screw shaft attachment. Built with AISI 304 stainless steel investment cast housing and AISI 440C stainless steel bearing races and balls, this unit delivers complete corrosion resistance for food processing, pharmaceutical, chemical, and marine applications. Pre-lubricated with Mobil FM222 food-grade grease and sealed with 100% food-grade silicone seals with an external flinger for washdown protection. FDA compliant and washdown suitable.

Specifications
Bore Size 2-7/16"
Housing Style 2-Bolt Pillow Block
Shaft Attachment Set Screw
Series 212
Seal Type Silicone Seal with Flinger
Material 304 Stainless Steel (Housing), 440C Stainless Steel (Races/Balls)
Housing Material AISI 304 Stainless Steel
Dynamic Load Rating (Cr) 9,554 lbs
Static Load Rating (Cor) 5,921 lbs
Limiting Speed 1820 RPM
Bolt Size 5/8"
Weight 9.8 lbs
FDA Compliant Yes
Washdown Suitable Yes
Corrosion Resistance Excellent

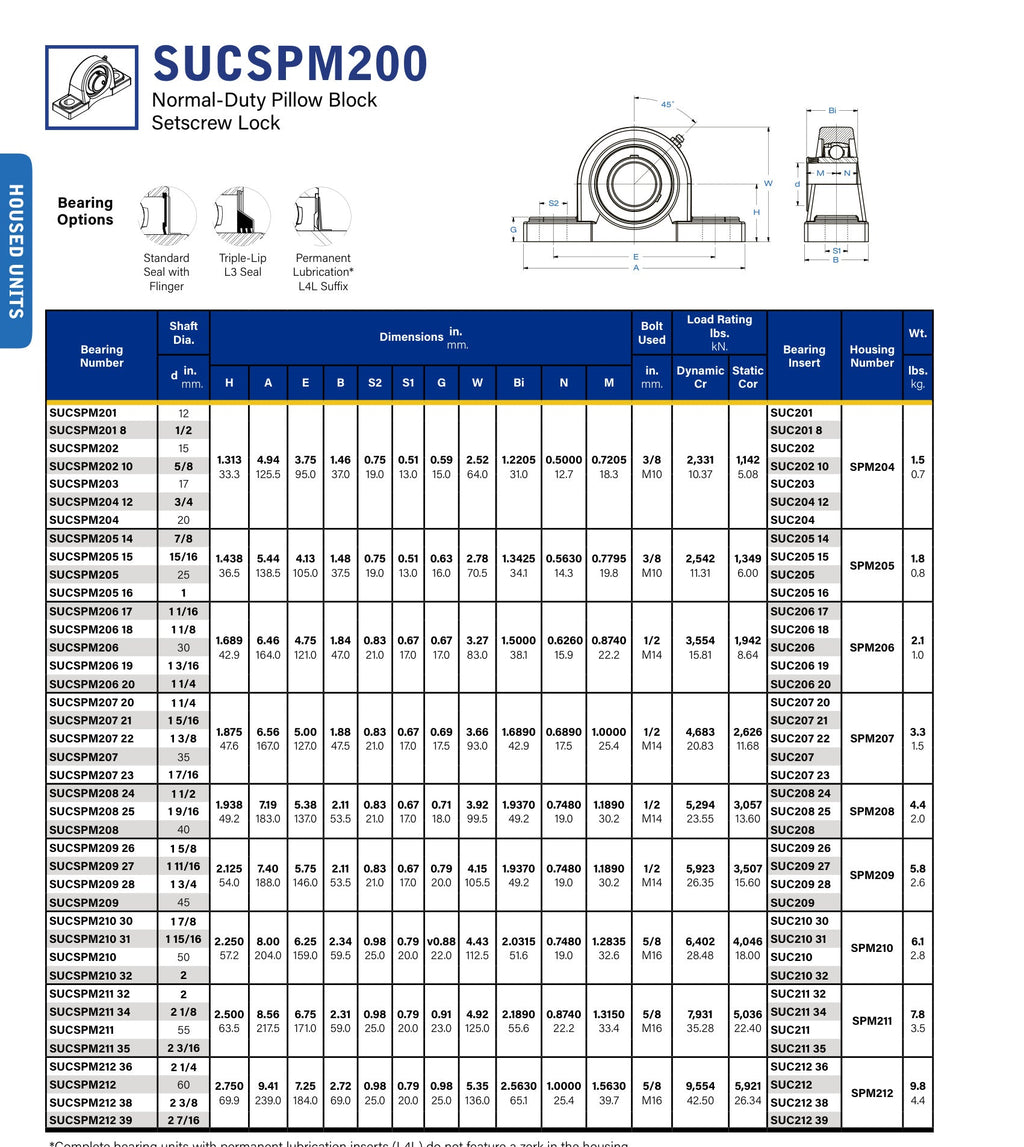

Mariner SUCSPM Dimensional Drawing and Specifications
