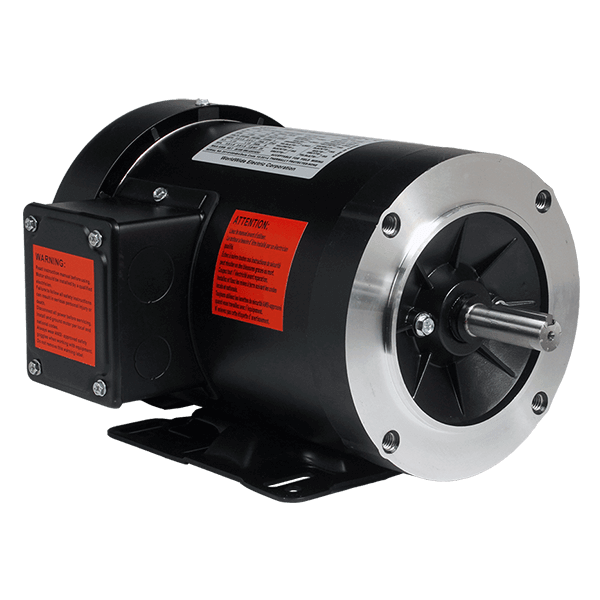

NAT12-36-56CB — Three-phase Fractional Motor
The NAT12-36-56CB is a 0.5 hp, 3600 rpm, 3-phase, 230/460v, 56c frame, tefc three-phase fractional motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | NAT12-36-56CB |
| Horsepower (HP) | 0.5 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 56C |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 67.5 |
| Full-Load Amps | 0.85 |
| Insulation Class | Class F |
| Mounting | C-Face with Removable Base |
| Ingress Protection | IP43 |
| Weight (lbs) | 19 |
| Warranty | Two Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the NAT12-36-56CB used for?
The NAT12-36-56CB is a 0.5 hp, 3600 rpm, 3-phase, 230/460v, 56c frame, tefc three-phase fractional motor used for industrial machinery and oem equipment and similar loads.
What frame is the NAT12-36-56CB?
The NAT12-36-56CB uses a NEMA 56C frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the NAT12-36-56CB run on?
The NAT12-36-56CB is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
