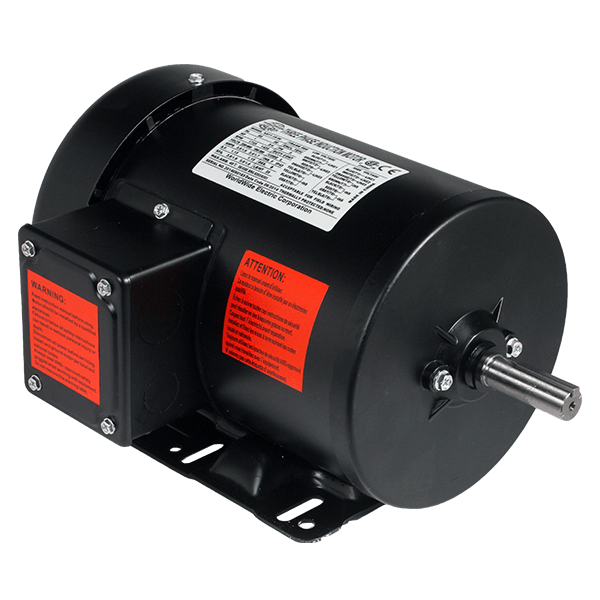

NATE1-5-18-56 — Three-phase Fractional Motor
The NATE1-5-18-56 is a 1.5 hp, 1800 rpm, 3-phase, 230/460v, 56 frame, tefc three-phase fractional motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | NATE1-5-18-56 |
| Horsepower (HP) | 1.5 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 56 |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 86.5 |
| Full-Load Amps | 2.26 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP43 |
| Weight (lbs) | 43 |
| Warranty | Two Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the NATE1-5-18-56 used for?
The NATE1-5-18-56 is a 1.5 hp, 1800 rpm, 3-phase, 230/460v, 56 frame, tefc three-phase fractional motor used for industrial machinery and oem equipment and similar loads.
What frame is the NATE1-5-18-56?
The NATE1-5-18-56 uses a NEMA 56 frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the NATE1-5-18-56 run on?
The NATE1-5-18-56 is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the NATE1-5-18-56 ship?
Most in-stock units of the NATE1-5-18-56 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
