NATJE3-36-56JB — Jet Pump Motor


Price:
$ 470.25

Description

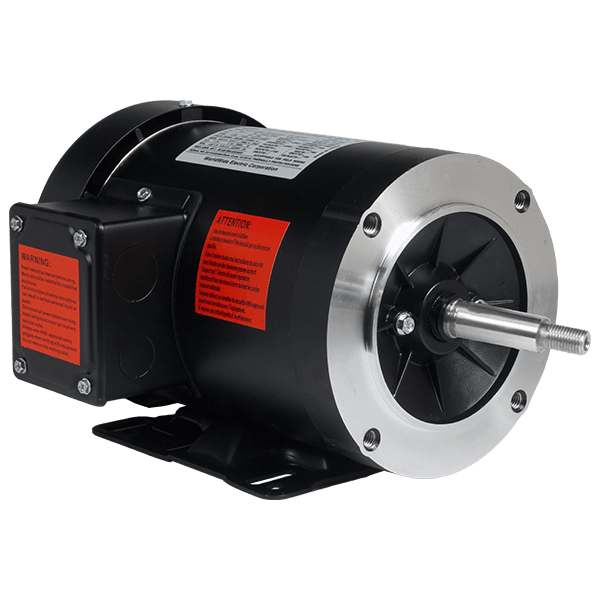

NATJE3-36-56JB — Jet Pump Motor

The NATJE3-36-56JB is a 3 hp, 3600 rpm, 3-phase, 230/460v, 56j frame, tefc jet pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number NATJE3-36-56JB
Horsepower (HP) 3
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 56J
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 86.5
Full-Load Amps 3.69
Insulation Class Class F
Mounting C-Face with Removable Base
Ingress Protection IP43
Weight (lbs) 39
Warranty Two Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the NATJE3-36-56JB used for?

The NATJE3-36-56JB is a 3 hp, 3600 rpm, 3-phase, 230/460v, 56j frame, tefc jet pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the NATJE3-36-56JB?

The NATJE3-36-56JB uses a NEMA 56J frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the NATJE3-36-56JB run on?

The NATJE3-36-56JB is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the NATJE3-36-56JB ship?

Most in-stock units of the NATJE3-36-56JB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
