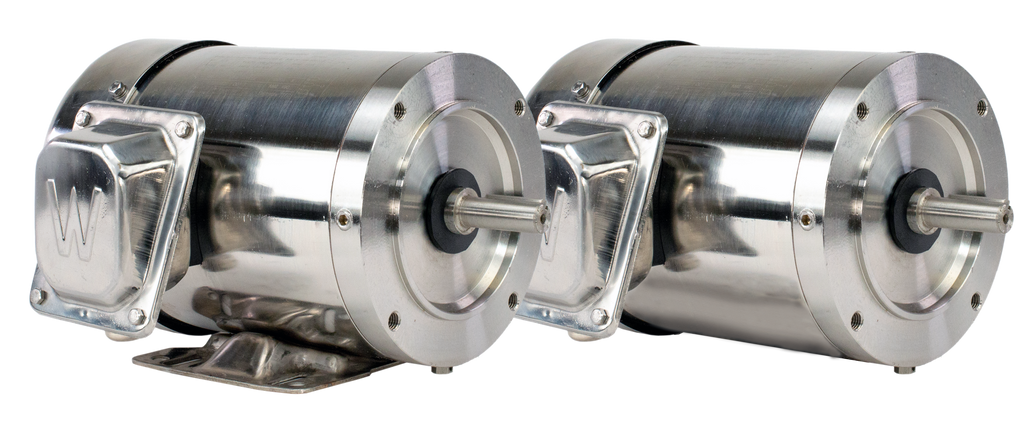

NAWSSE2-18-56C — Three-phase Fractional Motor


Price:
$ 1,071.84

Description

NAWSSE2-18-56C — Three-phase Fractional Motor

The NAWSSE2-18-56C is a 2 hp, 1800 rpm, 3-phase, 230/460v, 56c frame, tefc three-phase fractional motor for food and beverage processing. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number NAWSSE2-18-56C
Horsepower (HP) 2
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 56C
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 86.5
Full-Load Amps 2.97
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP56
Weight (lbs) 64
Warranty Three Year

Applications

  • Food and beverage processing
  • Sanitary and w, high-pressure washdown areas
  • Corrosive and wet environments
  • Pharma and packaging lines

Documentation & Downloads

Frequently Asked Questions

What is the NAWSSE2-18-56C used for?

The NAWSSE2-18-56C is a 2 hp, 1800 rpm, 3-phase, 230/460v, 56c frame, tefc three-phase fractional motor used for food and beverage processing and similar loads.

What frame is the NAWSSE2-18-56C?

The NAWSSE2-18-56C uses a NEMA 56C frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the NAWSSE2-18-56C run on?

The NAWSSE2-18-56C is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the NAWSSE2-18-56C ship?

Most in-stock units of the NAWSSE2-18-56C ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on NAWSSE2-18-56C?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
