NSSE13-18-56C — Single-phase Fractional Motor


Price:
$ 817.35

Description

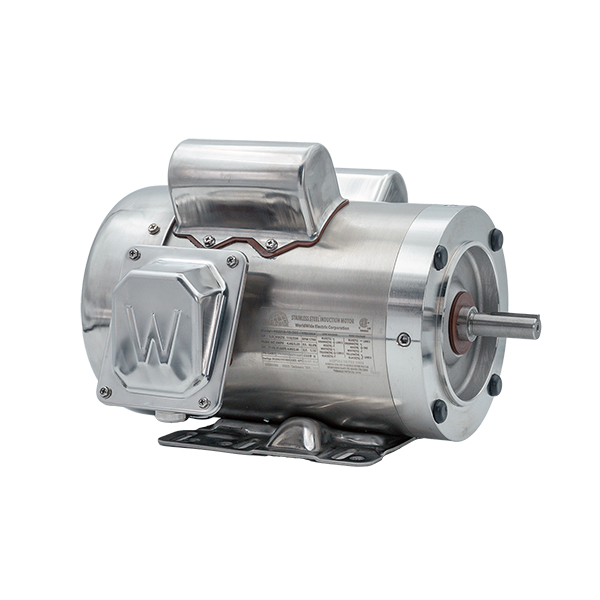

NSSE13-18-56C — Single-phase Fractional Motor

The NSSE13-18-56C is a 0.33 hp, 1800 rpm, 1-phase, 115/230v, 56c frame, tefc single-phase fractional motor for food and beverage processing. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number NSSE13-18-56C
Horsepower (HP) 0.33
Speed (RPM) 1800
Phase Single-Phase
Voltage 115/230
Frequency 60 HZ
NEMA Frame 56C
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 74.0
Full-Load Amps 3.3
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Weight (lbs) 34.8
Warranty Two Year

Applications

  • Food and beverage processing
  • Sanitary and w, high-pressure washdown areas
  • Corrosive and wet environments
  • Pharma and packaging lines

Documentation & Downloads

Frequently Asked Questions

What is the NSSE13-18-56C used for?

The NSSE13-18-56C is a 0.33 hp, 1800 rpm, 1-phase, 115/230v, 56c frame, tefc single-phase fractional motor used for food and beverage processing and similar loads.

What frame is the NSSE13-18-56C?

The NSSE13-18-56C uses a NEMA 56C frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the NSSE13-18-56C run on?

The NSSE13-18-56C is rated 115/230V, 1-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
