Description

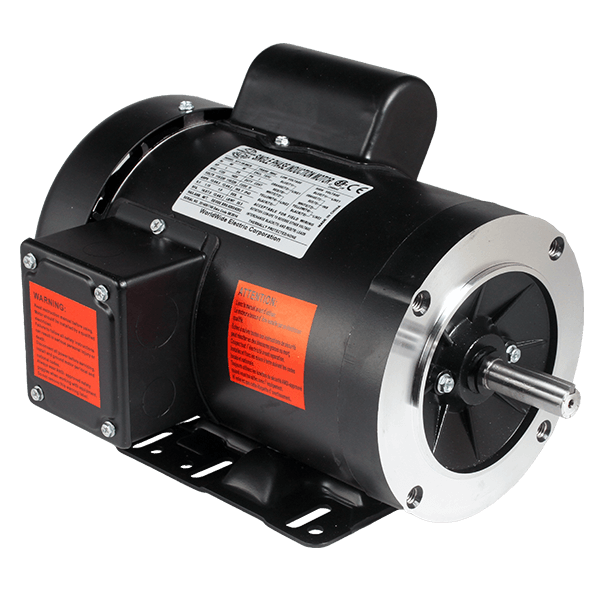

NT1-36-56CB — Single-phase Fractional Motor
The NT1-36-56CB is a 1 hp, 3600 rpm, 1-phase, 115/230v, 56c frame, tefc single-phase fractional motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | NT1-36-56CB |
| Horsepower (HP) | 1 |
| Speed (RPM) | 3600 |
| Phase | Single-Phase |
| Voltage | 115/230 |
| Frequency | 60 HZ |
| NEMA Frame | 56C |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 69.5 |
| Full-Load Amps | 5.8 |
| Insulation Class | Class F |
| Mounting | C-Face with Removable Base |
| Ingress Protection | IP43 |
| Weight (lbs) | 30 |
| Warranty | Two Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the NT1-36-56CB used for?
The NT1-36-56CB is a 1 hp, 3600 rpm, 1-phase, 115/230v, 56c frame, tefc single-phase fractional motor used for industrial machinery and oem equipment and similar loads.
What frame is the NT1-36-56CB?
The NT1-36-56CB uses a NEMA 56C frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the NT1-36-56CB run on?
The NT1-36-56CB is rated 115/230V, 1-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the NT1-36-56CB ship?
Most in-stock units of the NT1-36-56CB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
