Description

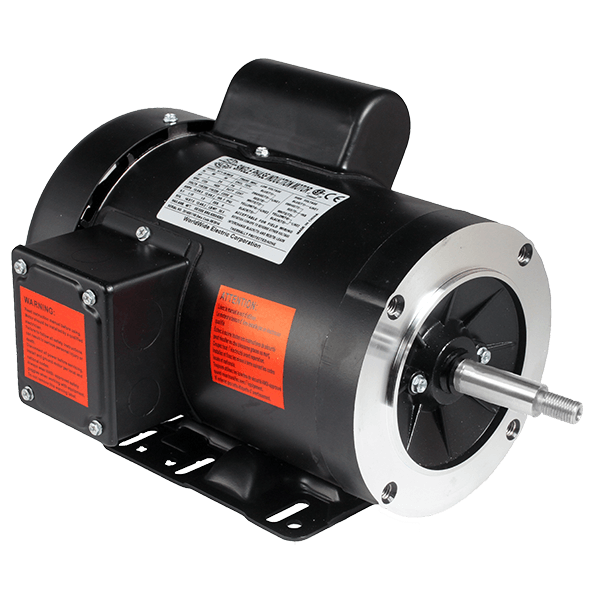

NTJ13-36-56JB — Jet Pump Motor
The NTJ13-36-56JB is a 0.33 hp, 3600 rpm, 1-phase, 115/230v, 56j frame, tefc jet pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | NTJ13-36-56JB |
| Horsepower (HP) | 0.33 |
| Speed (RPM) | 3600 |
| Phase | Single-Phase |
| Voltage | 115/230 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 56J |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 58.0 |
| Full-Load Amps | 2.5 |
| Insulation Class | Class F |
| Mounting | C-Face with Removable Base |
| Ingress Protection | IP43 |
| Weight (lbs) | 20 |
| Warranty | Two Year |
Applications
- Close-coupled centrifugal pumps
- Booster, transfer, and circulation pumps
- Irrigation and water-treatment skids
- OEM pump packages
Documentation & Downloads
Frequently Asked Questions
What is the NTJ13-36-56JB used for?
The NTJ13-36-56JB is a 0.33 hp, 3600 rpm, 1-phase, 115/230v, 56j frame, tefc jet pump motor used for close-coupled centrifugal pumps and similar loads.
What frame is the NTJ13-36-56JB?
The NTJ13-36-56JB uses a NEMA 56J frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the NTJ13-36-56JB run on?
The NTJ13-36-56JB is rated 115/230V, 1-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the NTJ13-36-56JB ship?
Most in-stock units of the NTJ13-36-56JB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
