Description

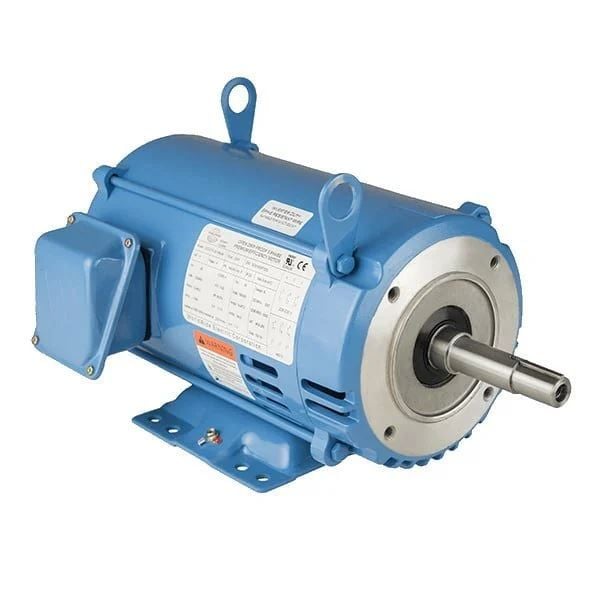

OCCP1.5-18-145JM — Close-coupled Motor
The OCCP1.5-18-145JM is a 1.5 hp, 1800 rpm, 3-phase, 230/460v, 145jm frame, odp close-coupled motor for close-coupled centrifugal pumps. ODP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | OCCP1.5-18-145JM |
| Horsepower (HP) | 1.5 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 145JM |
| Enclosure | ODP |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 86.5 |
| Full-Load Amps | 2.1 |
| Insulation Class | Class F |
| Mounting | C-Face with Feet |
| Ingress Protection | IP23 |
| Weight (lbs) | 37 |
| Warranty | Three Year |
Applications
- Close-coupled centrifugal pumps
- Booster, transfer, and circulation pumps
- Irrigation and water-treatment skids
- OEM pump packages
Documentation & Downloads
Frequently Asked Questions
What is the OCCP1.5-18-145JM used for?
The OCCP1.5-18-145JM is a 1.5 hp, 1800 rpm, 3-phase, 230/460v, 145jm frame, odp close-coupled motor used for close-coupled centrifugal pumps and similar loads.
What frame is the OCCP1.5-18-145JM?
The OCCP1.5-18-145JM uses a NEMA 145JM frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the OCCP1.5-18-145JM run on?
The OCCP1.5-18-145JM is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the OCCP1.5-18-145JM ship?
Most in-stock units of the OCCP1.5-18-145JM ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on OCCP1.5-18-145JM?
Most in-stock items ship same-day — call to confirm availability and freight.
