Description

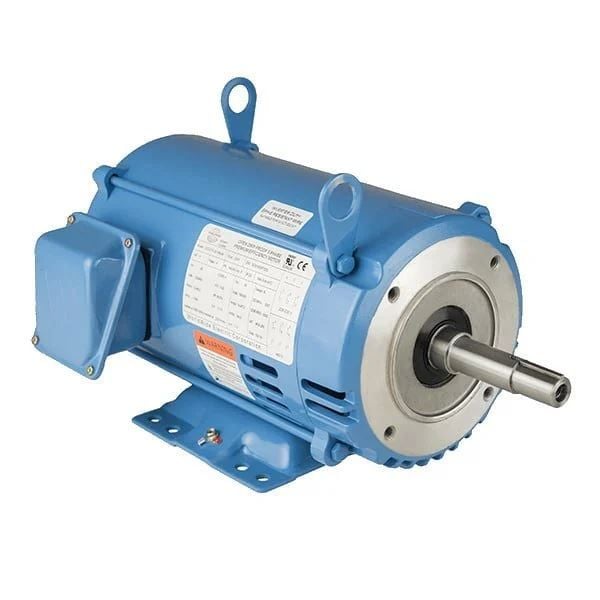

OCCP10-18-215JP — Close-coupled Motor
The OCCP10-18-215JP is a 10 hp, 1800 rpm, 3-phase, 230/460v, 215jp frame, odp close-coupled motor for close-coupled centrifugal pumps. ODP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | OCCP10-18-215JP |
| Horsepower (HP) | 10 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 215JP |
| Enclosure | ODP |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 91.7 |
| Full-Load Amps | 12.2 |
| Insulation Class | Class F |
| Mounting | C-Face with Feet |
| Ingress Protection | IP23 |
| Weight (lbs) | 148 |
| Warranty | Three Year |
Applications
- Close-coupled centrifugal pumps
- Booster, transfer, and circulation pumps
- Irrigation and water-treatment skids
- OEM pump packages
Documentation & Downloads
Frequently Asked Questions
What is the OCCP10-18-215JP used for?
The OCCP10-18-215JP is a 10 hp, 1800 rpm, 3-phase, 230/460v, 215jp frame, odp close-coupled motor used for close-coupled centrifugal pumps and similar loads.
What frame is the OCCP10-18-215JP?
The OCCP10-18-215JP uses a NEMA 215JP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the OCCP10-18-215JP run on?
The OCCP10-18-215JP is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the OCCP10-18-215JP ship?
Most in-stock units of the OCCP10-18-215JP ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on OCCP10-18-215JP?
Most in-stock items ship same-day — call to confirm availability and freight.
