OCCP3-36-145JP — Close-coupled Motor


Price:
$ 536.62

Description

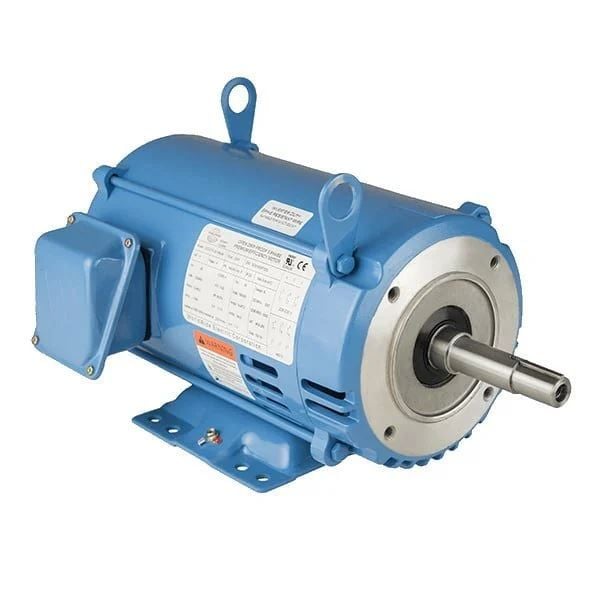

OCCP3-36-145JP — Close-coupled Motor

The OCCP3-36-145JP is a 3 hp, 3600 rpm, 3-phase, 230/460v, 145jp frame, odp close-coupled motor for close-coupled centrifugal pumps. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number OCCP3-36-145JP
Horsepower (HP) 3
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 145JP
Enclosure ODP
Service Factor 1.15
Full-Load Efficiency (%) 85.5
Full-Load Amps 3.6
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP23
Weight (lbs) 42
Warranty Three Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the OCCP3-36-145JP used for?

The OCCP3-36-145JP is a 3 hp, 3600 rpm, 3-phase, 230/460v, 145jp frame, odp close-coupled motor used for close-coupled centrifugal pumps and similar loads.

What frame is the OCCP3-36-145JP?

The OCCP3-36-145JP uses a NEMA 145JP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the OCCP3-36-145JP run on?

The OCCP3-36-145JP is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the OCCP3-36-145JP ship?

Most in-stock units of the OCCP3-36-145JP ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on OCCP3-36-145JP?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
