Description

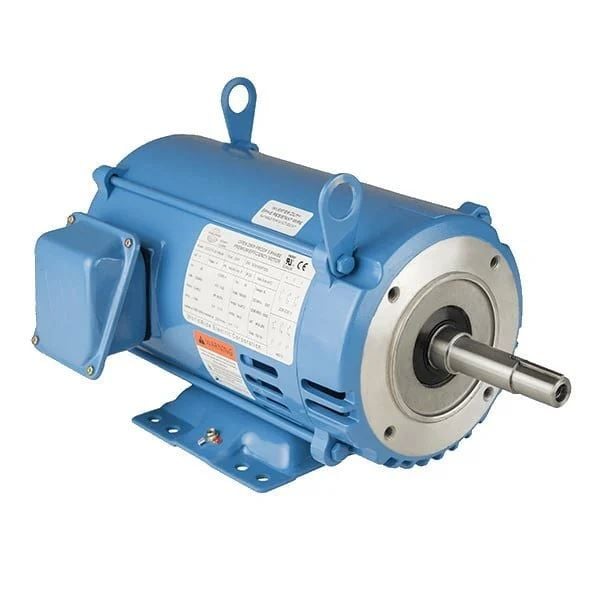

OCCP7-5-36-184JP — Close-coupled Motor
The OCCP7-5-36-184JP is a 7.5 hp, 3600 rpm, 3-phase, 230/460v, 184jp frame, odp close-coupled motor for close-coupled centrifugal pumps. ODP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | OCCP7-5-36-184JP |
| Horsepower (HP) | 7.5 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 184JP |
| Enclosure | ODP |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 88.5 |
| Full-Load Amps | 8.6 |
| Insulation Class | Class F |
| Mounting | C-Face with Feet |
| Ingress Protection | IP23 |
| Weight (lbs) | 99 |
| Warranty | Three Year |
Applications
- Close-coupled centrifugal pumps
- Booster, transfer, and circulation pumps
- Irrigation and water-treatment skids
- OEM pump packages
Documentation & Downloads
Frequently Asked Questions
What is the OCCP7-5-36-184JP used for?
The OCCP7-5-36-184JP is a 7.5 hp, 3600 rpm, 3-phase, 230/460v, 184jp frame, odp close-coupled motor used for close-coupled centrifugal pumps and similar loads.
What frame is the OCCP7-5-36-184JP?
The OCCP7-5-36-184JP uses a NEMA 184JP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the OCCP7-5-36-184JP run on?
The OCCP7-5-36-184JP is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the OCCP7-5-36-184JP ship?
Most in-stock units of the OCCP7-5-36-184JP ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on OCCP7-5-36-184JP?
Most in-stock items ship same-day — call to confirm availability and freight.
