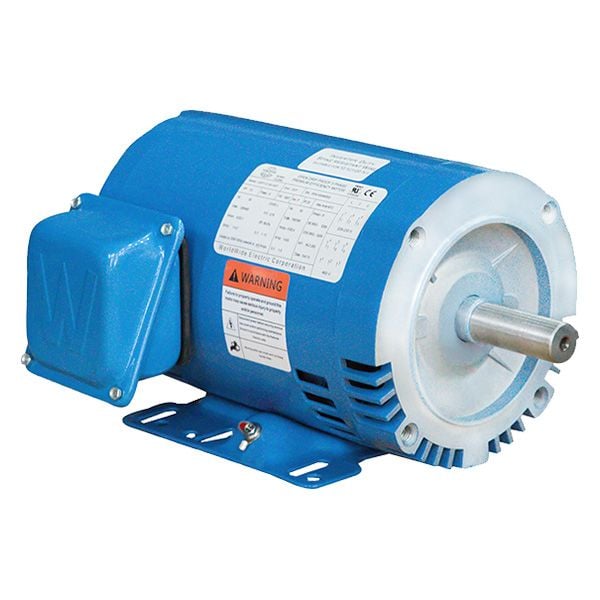

ODP1-36-143TC — Open Drip Proof Motor


Price:
$ 353.97

Description

ODP1-36-143TC — Open Drip Proof Motor

The ODP1-36-143TC is a 1 hp, 3600 rpm, 3-phase, 230/460v, 143tc frame, odp open drip proof motor for industrial machinery and oem equipment. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number ODP1-36-143TC
Horsepower (HP) 1
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 143TC
Enclosure ODP
Service Factor 1.15
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP23
Weight (lbs) 29
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the ODP1-36-143TC used for?

The ODP1-36-143TC is a 1 hp, 3600 rpm, 3-phase, 230/460v, 143tc frame, odp open drip proof motor used for industrial machinery and oem equipment and similar loads.

What frame is the ODP1-36-143TC?

The ODP1-36-143TC uses a NEMA 143TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the ODP1-36-143TC run on?

The ODP1-36-143TC is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the ODP1-36-143TC ship?

Most in-stock units of the ODP1-36-143TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on ODP1-36-143TC?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
