ODP15-18-254TC — Open Drip Proof Motor


Price:
$ 1,314.91

Description

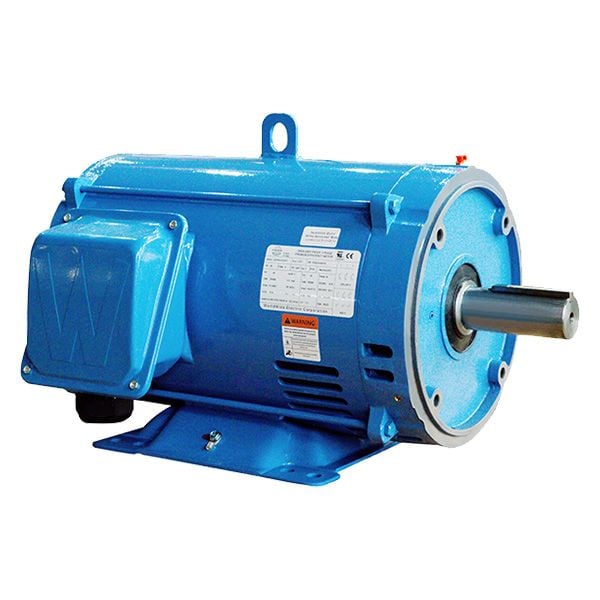

ODP15-18-254TC — Open Drip Proof Motor

The ODP15-18-254TC is a 15 hp, 1800 rpm, 3-phase, 230/460v, 254tc frame, odp open drip proof motor for industrial machinery and oem equipment. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number ODP15-18-254TC
Horsepower (HP) 15
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 254TC
Enclosure ODP
Service Factor 1.15
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP23
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the ODP15-18-254TC used for?

The ODP15-18-254TC is a 15 hp, 1800 rpm, 3-phase, 230/460v, 254tc frame, odp open drip proof motor used for industrial machinery and oem equipment and similar loads.

What frame is the ODP15-18-254TC?

The ODP15-18-254TC uses a NEMA 254TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the ODP15-18-254TC run on?

The ODP15-18-254TC is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the ODP15-18-254TC ship?

Most in-stock units of the ODP15-18-254TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
