Description

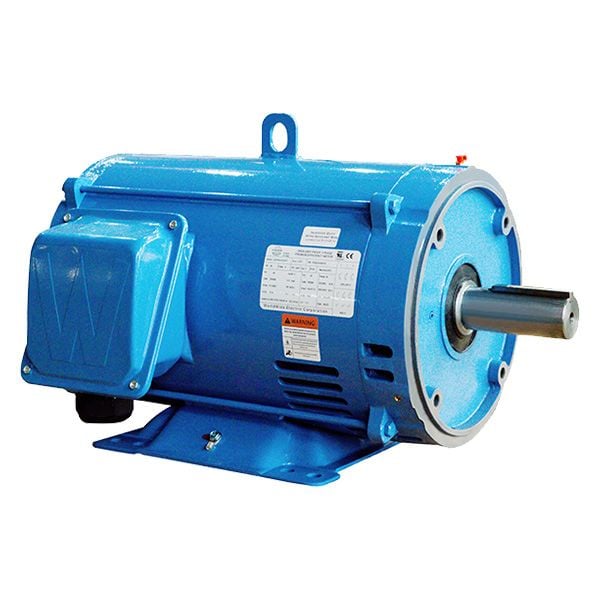

ODP150-18-444TC — Open Drip Proof Motor
The ODP150-18-444TC is a 150 hp, 1800 rpm, 3-phase, 230/460v, 444tc frame, odp open drip proof motor for industrial machinery and oem equipment. ODP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | ODP150-18-444TC |
| Horsepower (HP) | 150 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 444TC |
| Enclosure | ODP |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | C-Face with Feet |
| Ingress Protection | IP23 |
| Warranty | Three Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
- Spec Sheet (PDF)
- Installation & Operation Manual
- 2D CAD (DWG)
- 3D CAD Model
- Series Brochure
- Product Catalog
Frequently Asked Questions
What is the ODP150-18-444TC used for?
The ODP150-18-444TC is a 150 hp, 1800 rpm, 3-phase, 230/460v, 444tc frame, odp open drip proof motor used for industrial machinery and oem equipment and similar loads.
What frame is the ODP150-18-444TC?
The ODP150-18-444TC uses a NEMA 444TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the ODP150-18-444TC run on?
The ODP150-18-444TC is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the ODP150-18-444TC ship?
Most in-stock units of the ODP150-18-444TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
