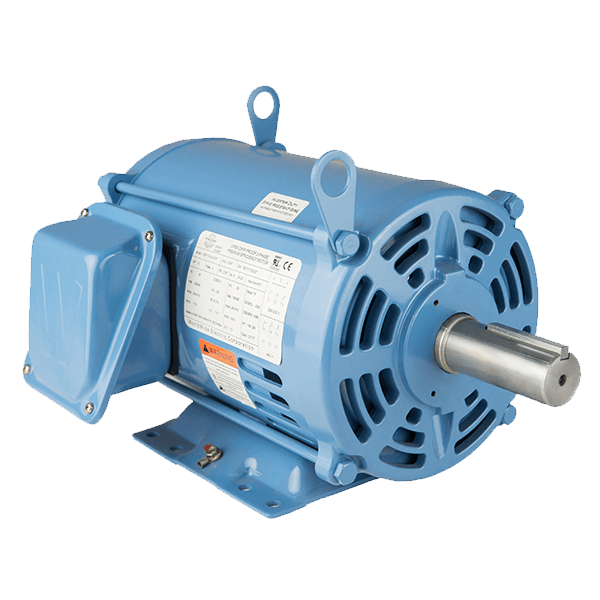

ODP25-18-200-284T — Open Drip Proof Motor


Price:
$ 1,839.66

Description

ODP25-18-200-284T — Open Drip Proof Motor

The ODP25-18-200-284T is a 25 hp, 1800 rpm, 3-phase, 200v, 284t frame, odp open drip proof motor for industrial machinery and oem equipment. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number ODP25-18-200-284T
Horsepower (HP) 25
Speed (RPM) 1800
Phase Three-Phase
Voltage 200
Frequency 60 HZ
NEMA Frame 284T
Enclosure ODP
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP23
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the ODP25-18-200-284T used for?

The ODP25-18-200-284T is a 25 hp, 1800 rpm, 3-phase, 200v, 284t frame, odp open drip proof motor used for industrial machinery and oem equipment and similar loads.

What frame is the ODP25-18-200-284T?

The ODP25-18-200-284T uses a NEMA 284T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the ODP25-18-200-284T run on?

The ODP25-18-200-284T is rated 200V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the ODP25-18-200-284T ship?

Most in-stock units of the ODP25-18-200-284T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on ODP25-18-200-284T?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
