Description

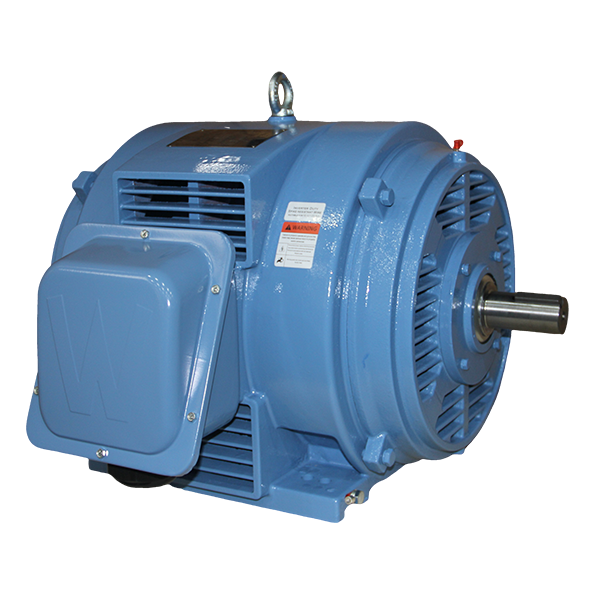

ODP250-36-445TS — Open Drip Proof Motor
The ODP250-36-445TS is a 250 hp, 3600 rpm, 3-phase, 460v, 445ts frame, odp open drip proof motor for industrial machinery and oem equipment. ODP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | ODP250-36-445TS |
| Horsepower (HP) | 250 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 445TS |
| Enclosure | ODP |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP23 |
| Warranty | Three Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
- Spec Sheet (PDF)
- Installation & Operation Manual
- 2D CAD (DWG)
- 3D CAD Model
- Series Brochure
- Product Catalog
Frequently Asked Questions
What is the ODP250-36-445TS used for?
The ODP250-36-445TS is a 250 hp, 3600 rpm, 3-phase, 460v, 445ts frame, odp open drip proof motor used for industrial machinery and oem equipment and similar loads.
What frame is the ODP250-36-445TS?
The ODP250-36-445TS uses a NEMA 445TS frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the ODP250-36-445TS run on?
The ODP250-36-445TS is rated 460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the ODP250-36-445TS ship?
Most in-stock units of the ODP250-36-445TS ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on ODP250-36-445TS?
Most in-stock items ship same-day — call to confirm availability and freight.
