Description

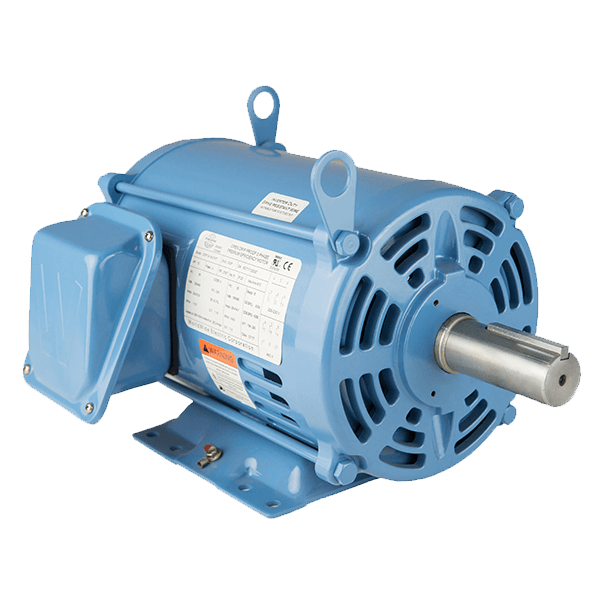

ODP40-18-200-324T — Open Drip Proof Motor
The ODP40-18-200-324T is a 40 hp, 1800 rpm, 3-phase, 200v, 324t frame, odp open drip proof motor for industrial machinery and oem equipment. ODP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | ODP40-18-200-324T |
| Horsepower (HP) | 40 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 200 |
| Frequency | 60 HZ |
| NEMA Frame | 324T |
| Enclosure | ODP |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP23 |
| Warranty | Three Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
- Spec Sheet (PDF)
- Installation & Operation Manual
- 2D CAD (DWG)
- 3D CAD Model
- Series Brochure
- Product Catalog
Frequently Asked Questions
What is the ODP40-18-200-324T used for?
The ODP40-18-200-324T is a 40 hp, 1800 rpm, 3-phase, 200v, 324t frame, odp open drip proof motor used for industrial machinery and oem equipment and similar loads.
What frame is the ODP40-18-200-324T?
The ODP40-18-200-324T uses a NEMA 324T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the ODP40-18-200-324T run on?
The ODP40-18-200-324T is rated 200V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the ODP40-18-200-324T ship?
Most in-stock units of the ODP40-18-200-324T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on ODP40-18-200-324T?
Most in-stock items ship same-day — call to confirm availability and freight.
