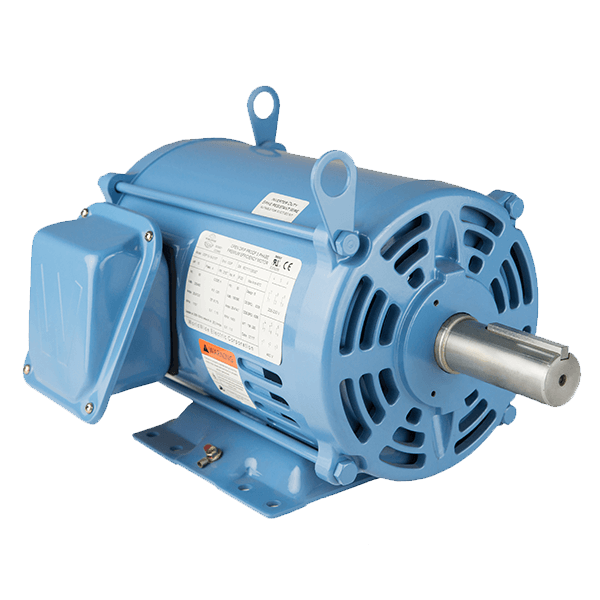

ODP40-36-200-286TS — Open Drip Proof Motor


Price:
$ 2,705.95

Description

ODP40-36-200-286TS — Open Drip Proof Motor

The ODP40-36-200-286TS is a 40 hp, 3600 rpm, 3-phase, 200v, 286ts frame, odp open drip proof motor for industrial machinery and oem equipment. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number ODP40-36-200-286TS
Horsepower (HP) 40
Speed (RPM) 3600
Phase Three-Phase
Voltage 200
Frequency 60 HZ
NEMA Frame 286TS
Enclosure ODP
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP23
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the ODP40-36-200-286TS used for?

The ODP40-36-200-286TS is a 40 hp, 3600 rpm, 3-phase, 200v, 286ts frame, odp open drip proof motor used for industrial machinery and oem equipment and similar loads.

What frame is the ODP40-36-200-286TS?

The ODP40-36-200-286TS uses a NEMA 286TS frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the ODP40-36-200-286TS run on?

The ODP40-36-200-286TS is rated 200V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the ODP40-36-200-286TS ship?

Most in-stock units of the ODP40-36-200-286TS ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on ODP40-36-200-286TS?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
