ODP50-12-365T — Open Drip Proof Motor


Price:
$ 4,452.40

Description

ODP50-12-365T — Open Drip Proof Motor

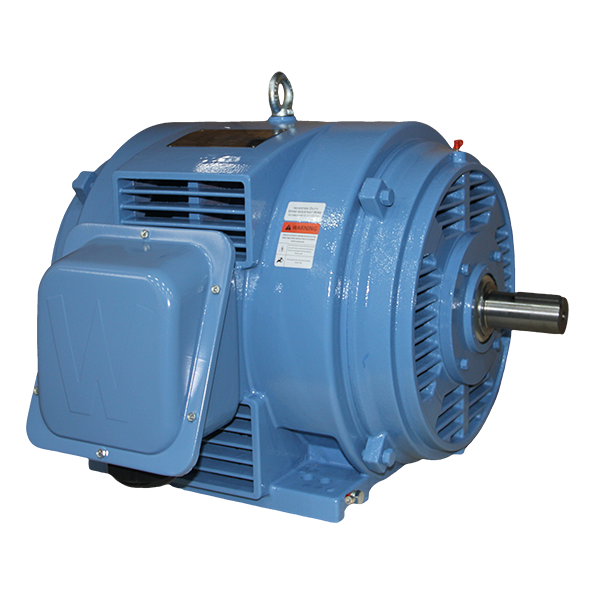

The ODP50-12-365T is a 50 hp, 1200 rpm, 3-phase, 230/460v, 365t frame, odp open drip proof motor for industrial machinery and oem equipment. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number ODP50-12-365T
Horsepower (HP) 50
Speed (RPM) 1200
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 365T
Enclosure ODP
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP23
Weight (lbs) 744
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the ODP50-12-365T used for?

The ODP50-12-365T is a 50 hp, 1200 rpm, 3-phase, 230/460v, 365t frame, odp open drip proof motor used for industrial machinery and oem equipment and similar loads.

What frame is the ODP50-12-365T?

The ODP50-12-365T uses a NEMA 365T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the ODP50-12-365T run on?

The ODP50-12-365T is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the ODP50-12-365T ship?

Most in-stock units of the ODP50-12-365T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
