Description

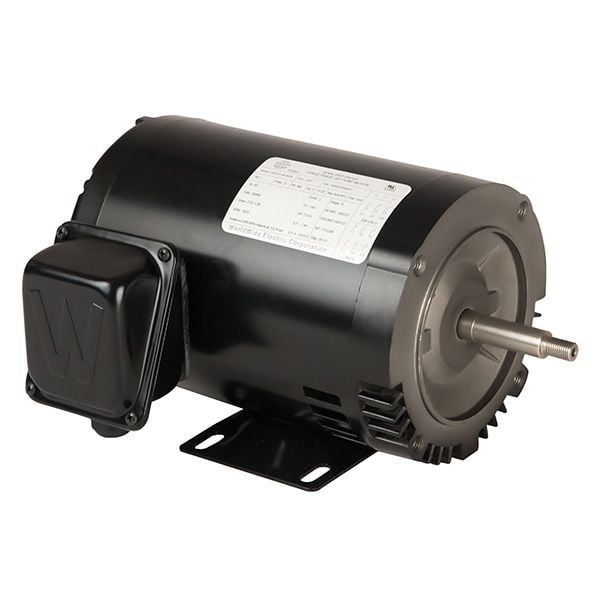

ODPJ12-36-56JB — Jet Pump Motor
The ODPJ12-36-56JB is a 0.5 hp, 3600 rpm, 3-phase, 230/460v, 56j frame, odp jet pump motor for close-coupled centrifugal pumps. ODP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | ODPJ12-36-56JB |
| Horsepower (HP) | 0.5 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| NEMA Frame | 56J |
| Enclosure | ODP |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 73.4 |
| Full-Load Amps | 0.9 |
| Insulation Class | Class F |
| Mounting | C-Face with Removable Base |
| Ingress Protection | IP23 |
| Weight (lbs) | 22 |
| Warranty | Two Year |
Applications
- Close-coupled centrifugal pumps
- Booster, transfer, and circulation pumps
- Irrigation and water-treatment skids
- OEM pump packages
Documentation & Downloads
- Spec Sheet (PDF)
- Installation & Operation Manual
- 2D CAD (DWG)
- 3D CAD Model
- Series Brochure
- Product Catalog
Frequently Asked Questions
What is the ODPJ12-36-56JB used for?
The ODPJ12-36-56JB is a 0.5 hp, 3600 rpm, 3-phase, 230/460v, 56j frame, odp jet pump motor used for close-coupled centrifugal pumps and similar loads.
What frame is the ODPJ12-36-56JB?
The ODPJ12-36-56JB uses a NEMA 56J frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the ODPJ12-36-56JB run on?
The ODPJ12-36-56JB is rated 230/460V, 3-Phase at 60 Hz. Verify supply voltage and connection against the motor nameplate.
How fast does the ODPJ12-36-56JB ship?
Most in-stock units of the ODPJ12-36-56JB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on ODPJ12-36-56JB?
Most in-stock items ship same-day — call to confirm availability and freight.
