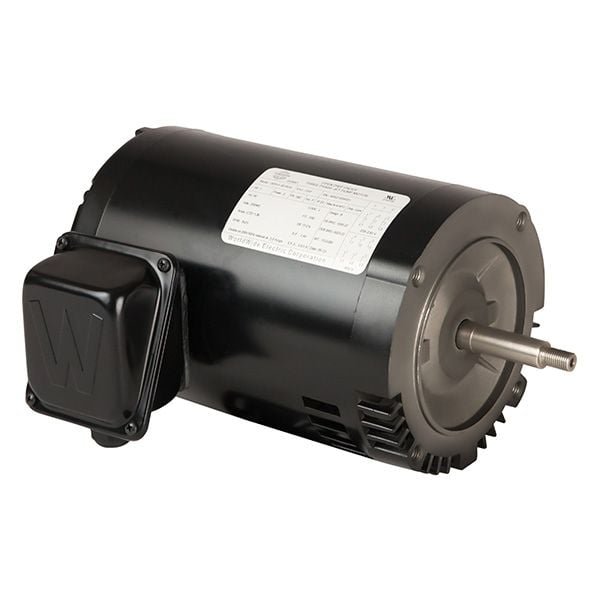

ODPJ3-36-56JRD — Jet Pump Motor


Price:
$ 464.42

Description

ODPJ3-36-56JRD — Jet Pump Motor

The ODPJ3-36-56JRD is a 3 hp, 3600 rpm, 3-phase, 230/460v, 56j frame, odp jet pump motor for close-coupled centrifugal pumps. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number ODPJ3-36-56JRD
Horsepower (HP) 3
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
NEMA Frame 56J
Enclosure ODP
Service Factor 1.15
Full-Load Efficiency (%) 85.5
Full-Load Amps 3.7
Insulation Class Class F
Mounting C-Face with Removable Base
Ingress Protection IP23
Weight (lbs) 27.9
Warranty Two Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the ODPJ3-36-56JRD used for?

The ODPJ3-36-56JRD is a 3 hp, 3600 rpm, 3-phase, 230/460v, 56j frame, odp jet pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the ODPJ3-36-56JRD?

The ODPJ3-36-56JRD uses a NEMA 56J frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the ODPJ3-36-56JRD run on?

The ODPJ3-36-56JRD is rated 230/460V, 3-Phase at 60 Hz. Verify supply voltage and connection against the motor nameplate.

How fast does the ODPJ3-36-56JRD ship?

Most in-stock units of the ODPJ3-36-56JRD ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on ODPJ3-36-56JRD?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
